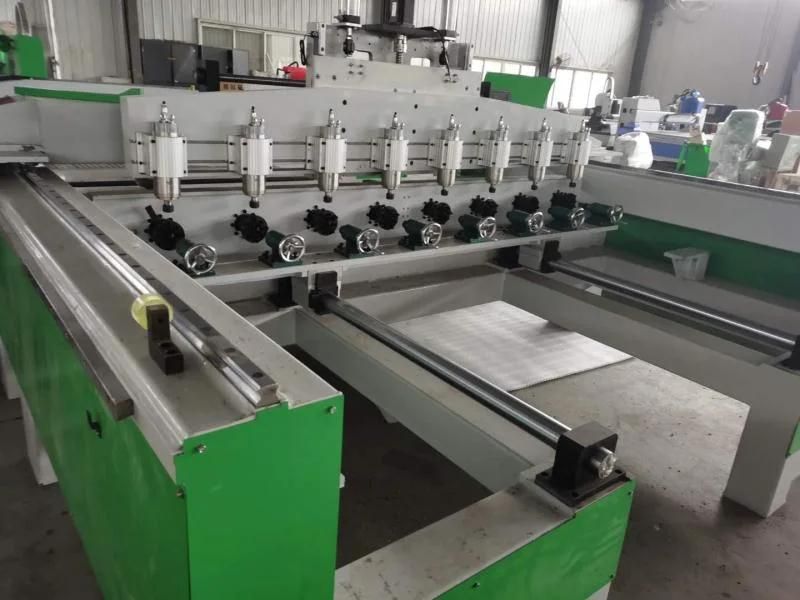

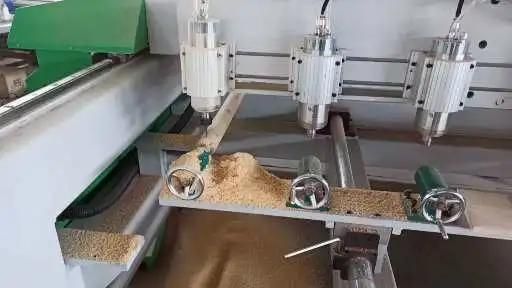

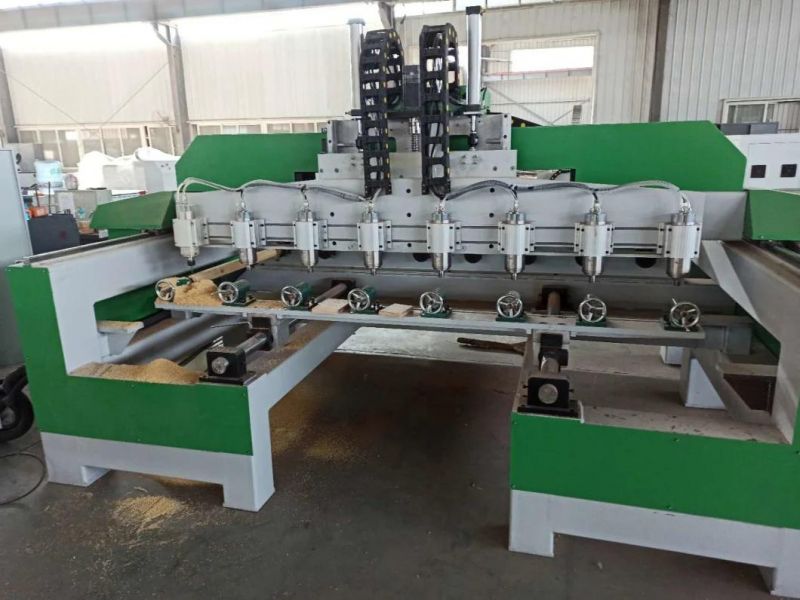

Multi-Spindle 4 Axis 2512 Woodworking CNC Router Process Wood Material with High Efficiency
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Type:Engraving Router
- Spindle Layout:Horizontal
- Spindle Number:Double-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE
Base Info
- Model NO.:2512
- Customized:Customized
- Condition:New
- Category:Woodworking Machine
- Transport Package:Standard Export Wooden Case
- Specification:2500x1200mm
- Trademark:Ruijie
- Origin:China
- HS Code:84609090
- Production Capacity:1000 Sets,Month
Description
Basic Info.
Model NO. 2512 Customized Customized Condition New Category Woodworking Machine Transport Package Standard Export Wooden Case Specification 2500x1200mm Trademark Ruijie Origin China HS Code 84609090 Production Capacity 1000 Sets/MonthProduct Description
Multi-spindle 4 Axis 2512 Woodworking CNC Router Process Wood Material with High Efficiency1. Y-axis adopts double motors to ensures stable operation.
2. Highly accurate Rack Rail travel method with high speed.
3. USB ensures high speed and efficiency.
4. The unique calculating system realizes speedy, accurate, curvy operation.
5. The vacuum cleaning system offers a clean working environment and better quality.Professional
Working travel | X axis 2500 mm Y axis 1200 mm Z axis 230 mm |
Table size | 2500 mm*1200 mm |
Maximum speed | X Y axes 60m/min |
Spindle | Voltage: AC380v Frequency:400Hz |
Italy HSD | Speed:24000r/min Power:8kw |
Pressure | Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa |
Pressure protection | No less than 0.7 |
Dust collecting power | 3.0kw |
Vacuum power | 5.0kw (phenol aldehyde laminated cloth board) |
Total power | 23.0kw |
Mechanism size | Area:1.8m*3.3m Height:1.5m Weight:850kg |
Japanese servo motor | Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min. |
Tool storage | 8 tools |
Diameter of cutter head | 3.175mm, 6mm, 12.7mm. |
Cubage | 18.0 CBM |

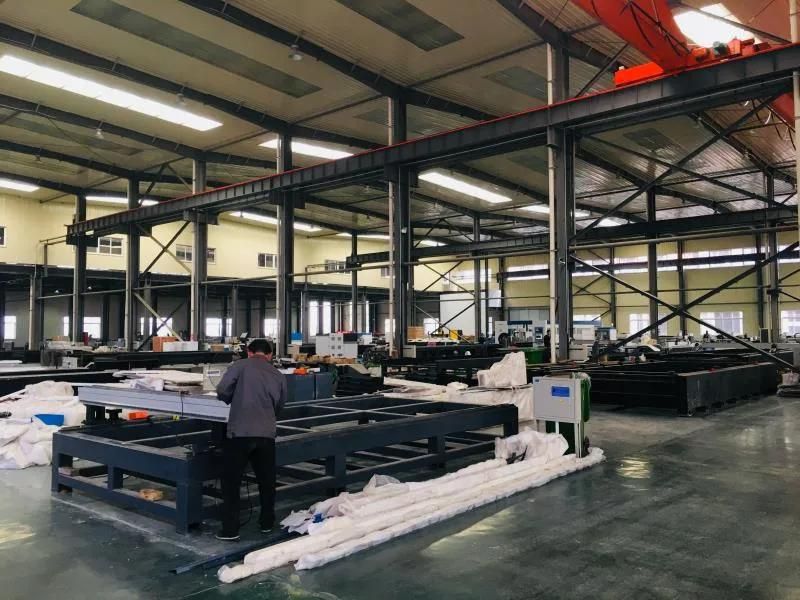

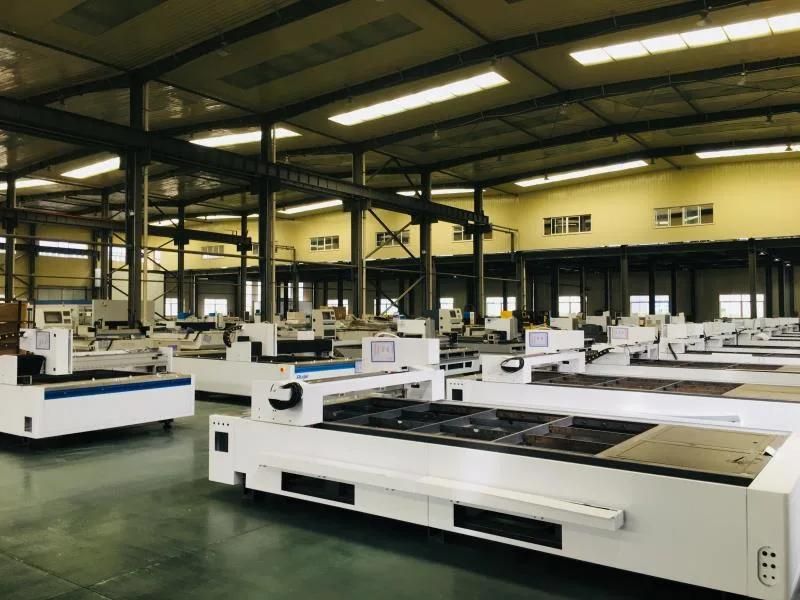

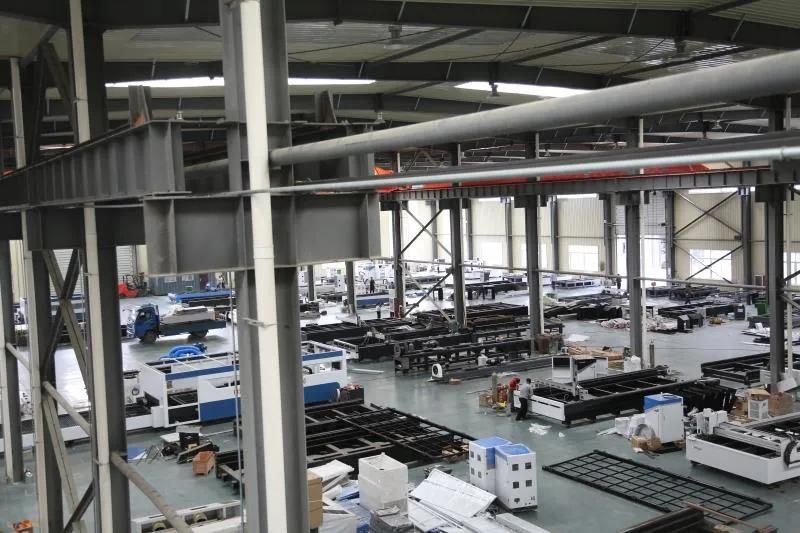

Factory Show
