Wood Marble CNC Engraving Machine Fx1224
Shandong Ruby CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：FX1224
- Customized：Customized
- Condition：New
- Color：Customized
- Working Area：1200*2400mm
- Spindle：2.2kw
- Transport Package：Plywood
- Specification：ce
- Trademark：flying
- Origin：China
- HS Code：84649090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. FX1224 Customized Customized Condition New Color Customized Working Area 1200*2400mm Spindle 2.2kw Transport Package Plywood Specification ce Trademark flying Origin China HS Code 84649090 Production Capacity 100PCS/MonthProduct Description
wood marble cnc engraving machine FX1224FX1224Features:
1. This CNC Router/engraving machine adopts advanced DSP numerical control system .It has the characteristic of operating with the handle, large screen display, convenient operation and easy maintenance. It is designed with more human nature.
2. The adoption of the imported linear guide and German high precision ballsrew ensure the precision and long life of the equipment.
3. The adoption of memory mode to the point break, ensure the continuous processing if we meet any accidents (when the blade is broken or postpone situation)
4. Unique saving mode of original points for many files.
5. Big capacity. It can store many files simultaneously and read at random.
6. Gantry movement, Strong table and more durable .It will not distort after long time use. The position precision is much better.
7. It has compatible CAD/CAM software such as Type 3, Artcam, Wentai, Coredraw etc.
Speficiations:
| Machine model | FX 1212 / 1218 / 1224 CNC Router |
| X,Y,Z working area | 1200*1200*250mm / 1200*1800*250mm / 1200*2400*250mm |
| Drive and motor | Leadshine stepper motor and drivers |
| Table size | 1200*1600mm / 1200*2200mm / 1200*2800mm |
| Spindle | 2.2kw HQD Watercooling spindle,0-24000rpm |
| Inverter | FULING frequency inverter 2.2KW |
| Spindle Protection Device | Temperature monitor for watercooling spindle |
| Machine table | PVC table with T-slot |
| X, Y, Z Travelling Potioning Accuracy | ±0.01/300mm |
| X, Y, Z Travelling Repositioning Accuracy | ±0.01mm |
| X,Y,Z driving system | TBI Ballscrews on X,Y,Z axis, |
| X,Y,Z bearing rail guide system | 3 axis Taiwan Hiwin square linear bearing, |
| Max Rapid Travel Rate | 8,000mm/min |
| Max working speed | 6,500mm/min |
| Working voltage | AC 220V/50Hz |
| Command languages | G code |
| Control system | DSP controller |
| Software | Ucancam English version+ Artcam software |
| Limit stop | Extra-travel limit stop and hard limit stop |
| Package | In Wooden box |
| Packing size | 1.9*1.9*1.8m=6.5CBM / 1.9*2.5*1.8m=8.5CBM / 1.9*3.1*1.8m=10.6CBM |
| Net Weight | 500kg / 700kg / 1000kg |
| Gross weight | 600kg / 800kg / 1100kg |

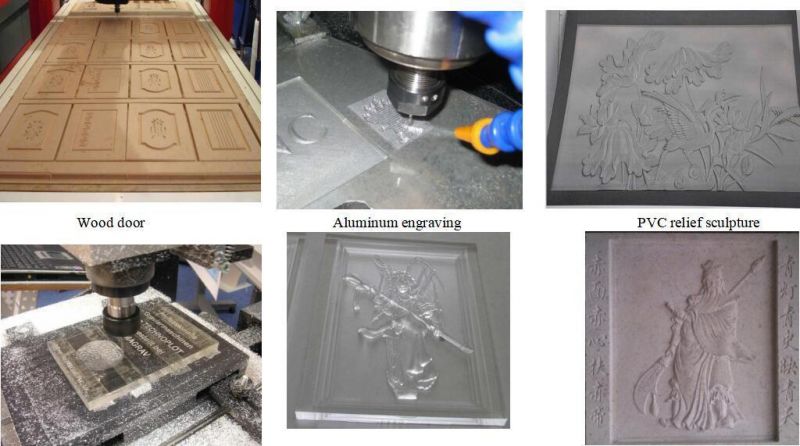

Samples Show:
