• Model NO.：BXQ1827,10
• Thickness of The Remainder Wood：0.15-2mm
• Control Way：PLC Control
• Length of The Wood：2700mm
• Transport Package：No Packing
• Specification：Weight: 7500KGS
• Trademark：Metro
• Origin：Shandong, China
• HS Code：846596000
• Production Capacity：20set,Month

Basic Info.

Model NO. BXQ1827/10 Thickness of The Remainder Wood 0.15-2mm Control Way PLC Control Length of The Wood 2700mm Transport Package No Packing Specification Weight: 7500KGS Trademark Metro Origin Shandong, China HS Code 846596000 Production Capacity 20set/Month

Product Description

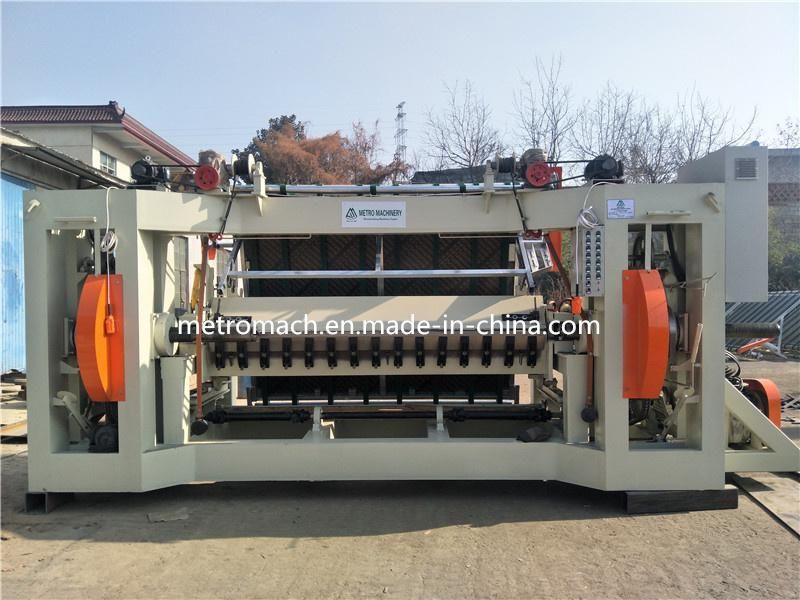

Face veneer mechanical rotary peeling machine Main features:
1. Spindle rotary peeling machine is the main machine for face veneer production, its maximum working diamter upto 700mm and final left diameter reach to 120mm.
2. Big motor drive and transmission to make the machine can peel minimum 0.1mm to maximum 2.6mm big range thickness range at the most suitable working speed.
3. Log hoisiting device on the top of the machine make the logs charging easily.


Model	BXQ1827/10
Length of the wood	2700mm
Max. diameter of the wood	Ф1600mm
Diameter of the remainder wood	Ф130mm
Thickness of the remainder wood	0.15-2mm
Control Way	PLC control
Power of machine	19.3kw
Net weight	7500kg
Size(L× W×H)	5230×2590×2430mm

About Us:We have been manufacturing and exporting complete sets of veneer and plywood machines since the year 1998 , with 20 years experience .Our products covering log cutting saw , log debarking machine,veneer peeling machine, veneer clipper ,veneer dryer machine roller type and hot press type, glue spreader,cold press,hot press,plywood trimming saw etc. Our machines are widely used in India,IndonesiaThailand,Malaysia,Cambodia,Burma,Laos,Russia,Ameria,Mexico,
Brazil,Paraguay,Colombia,Tanzania,Morocco etc,

We not only offer you plywood machines, we also teach you how to make glue and how to make plywood.We can send our engineers to your place to install machines for you and teach your workers how to make plywood from wood logs .
