• Model NO.：RSJ3515A,3515Ta
• Trademark：SAMACH
• Origin：China
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. RSJ3515A/3515Ta Trademark SAMACH Origin China Production Capacity 500 Sets/Month

Product Description

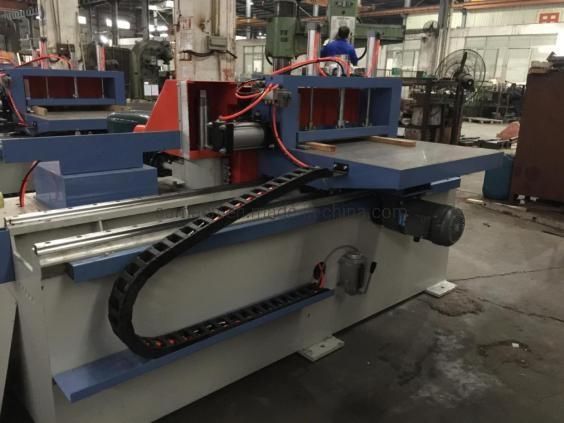

Woodworking Machinery Finger Joint Machine

Finger Joint Machine

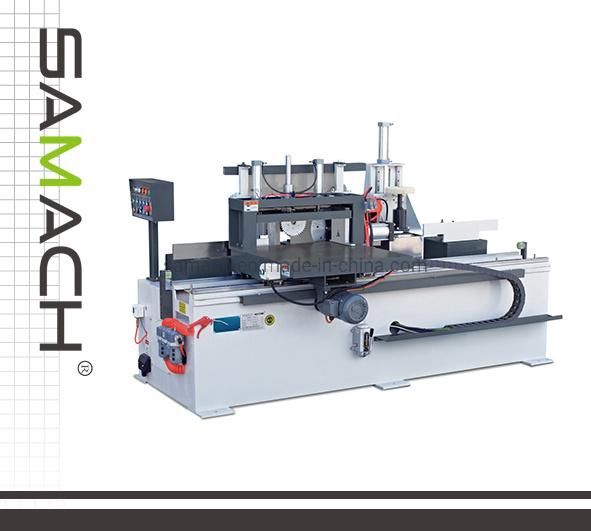

RSJ3515A



Characteristics

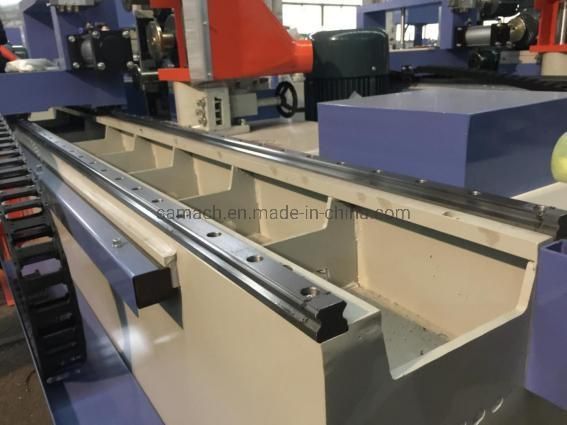

The feeding table guide adopts the precision linear guide imported from Japan, which ensures
the precision of the opening.

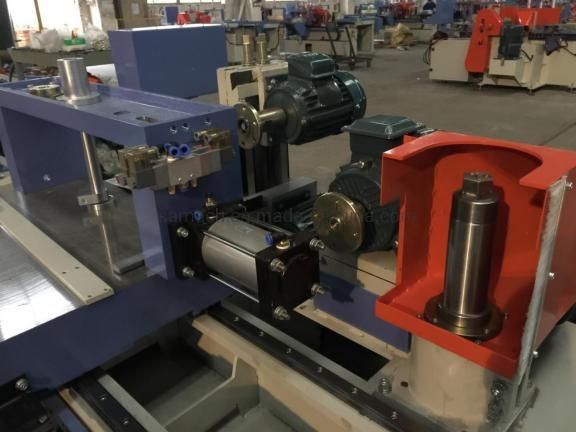

The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve
the quality of the opening.
The worktable advances and retreats adopts a rack and pinion travel mechanism, which is
stable and fast, easy to maintain, and consumes less power.

Parameters


Model	MXB3515A
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	0.75KW
Total power	15.75KW
Overall dimensions	2400X1730X1550MM
Net weight	1800KG

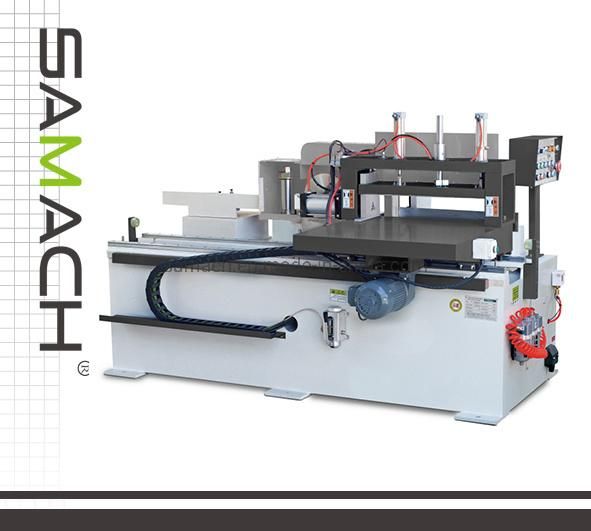

RSJ3515Ta



Characteristics

The feeding table guide adopts the precision linear guide imported from Japan, which ensures the
precision of the opening.
The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the
quality of the opening.
The worktable advances and retreats are controlled by the gas-liquid conversion system imported
from Germany, which is stable and fast, easy to maintain and consumes less power.
The tooth-shaped anastomosis spray system is used to achieve uniform spray glue, achieving the
effect of saving glue.

Parameters


Model	MXB3515TA
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	2*0.75KW
Total power	16.5KW
Overall dimensions	2700X1730X1550MM
Net weight	2000KG

Introduction

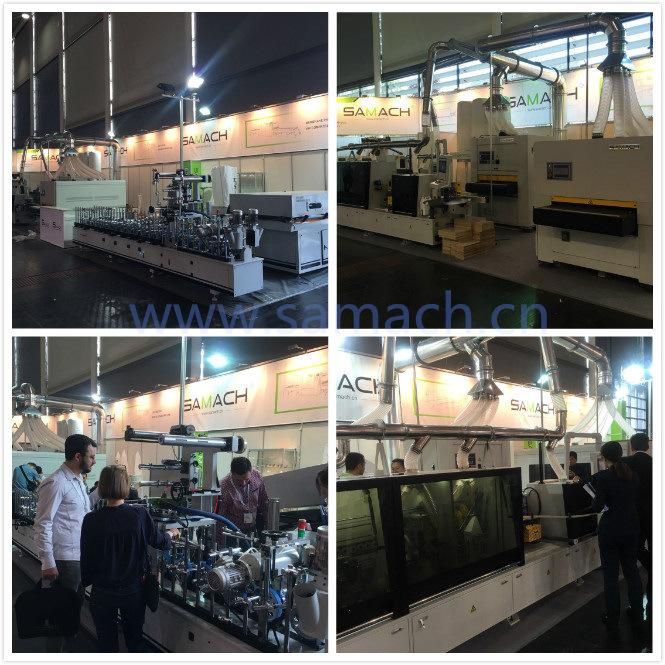

Exhibition



Packing and transportation

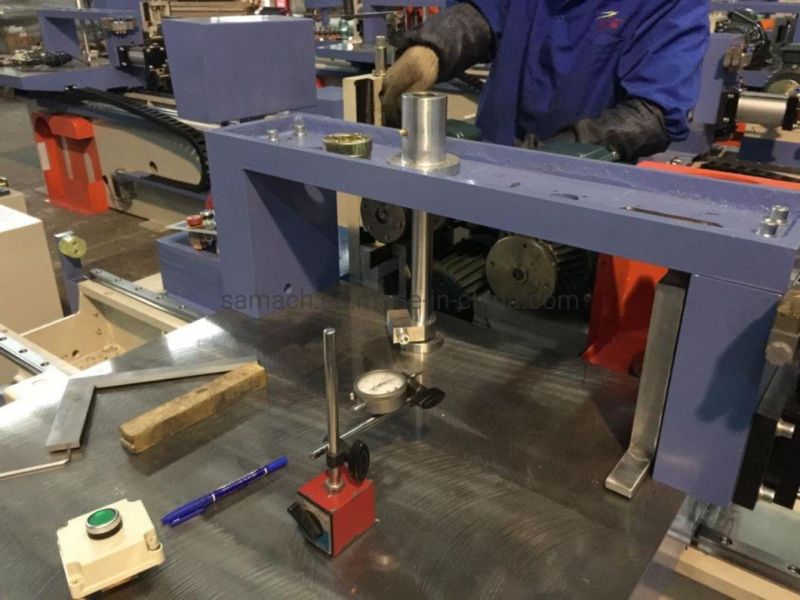

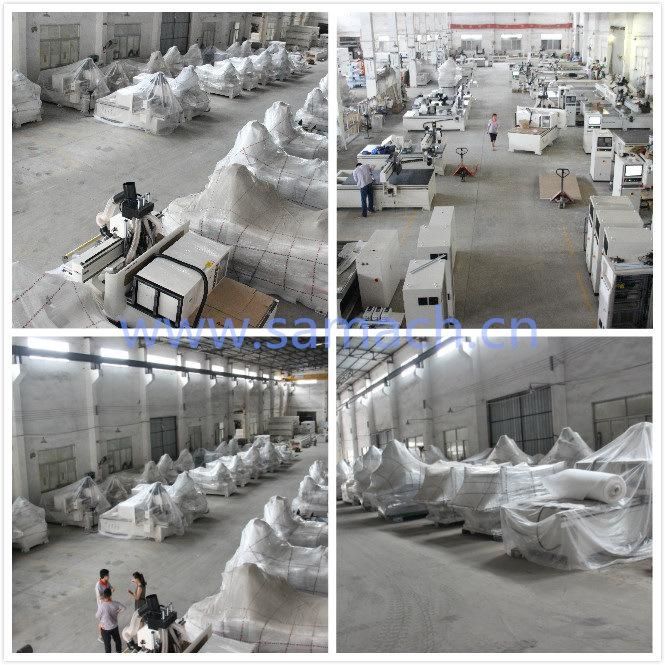

Factory



Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
