• Model NO.：YFPM-260B
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Power：15kw
• Application：Biomass Pellet and Feed Pellet Making
• Material：Carbon Steel
• Power Source：Diesel Engine & Motor
• Capacity：160-250kg,H
• Delivery：10-15 Days After Order Confirmation
• Pellet Size：2.5-8mm
• Transport Package：Export Standard Packing by Wooden Case
• Specification：mm
• Trademark：YUFCHINA
• Origin：Henan, China
• HS Code：8474802000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. YFPM-260B Warranty 1 Year Customized Customized Condition New Color Multi Color Power 15kw Application Biomass Pellet and Feed Pellet Making Material Carbon Steel Power Source Diesel Engine & Motor Capacity 160-250kg/H Delivery 10-15 Days After Order Confirmation Pellet Size 2.5-8mm Transport Package Export Standard Packing by Wooden Case Specification mm Trademark YUFCHINA Origin Henan, China HS Code 8474802000 Production Capacity 100 Sets Per Month

Product Description

Product Description

Main parameter


Model	POWER(kw)	Pellet size    (mm)	Capacity (kg/h)	Dimension(mm)	N/G(kg)
YFPM-120B	2.2kw	¢2.5-8mm	40-80kg/h	820*350*800mm	130/150kg
YFPM-150 B	4kw	¢2.5-8mm	50-90kg/h	910*400*890mm	160/185kg
YFPM-200 B	7.5kw	¢2.5-8mm	80-120kg/h	1000*430*950mm	200/230kg
YFPM-230 B	11kw	¢2.5-8mm	120-200kg/h	1140*470*970mm	290/320kg
YFPM-260 B	15kw	¢2.5-8mm	160-250kg/h	1220*500*1070mm	330/360kg
YFPM-300B	22kw	¢2.5-8mm	250-350kg/h	1220*600*1000mm	410-450kg
YFPM-360B	22kw	¢2.5-8mm	320-380kg/h	1220*600*1000mm	470/500kg
YFPM-400B	30kw	¢2.5-8mm	400-450kg/h	1320*600*1050mm	550/585kg

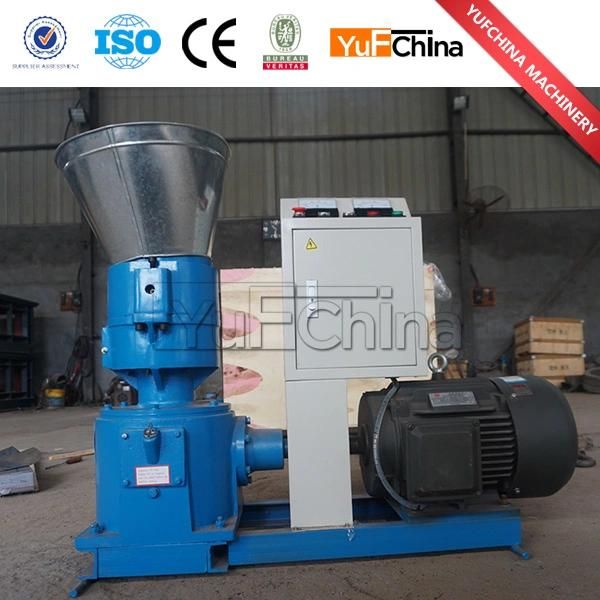

Flat die pellet machine is also called poultry feed pellet machine.  It can sertilize the microbial culture of raw materials without affecting the quality of fodder. We offer different kinds of machines which are designed for different kinds of poultries,such as pig,chicken,sheep,cattle and so on. YFK series has simple structures and covers a small area. It has wide applications and low noise.

Features
1)  Raw materials are corn,bran,grass,corn,maize stalk,rice straw,etc.
2)  Stable performance, high output, and low consumption. Easy for maintenance and easy operation.

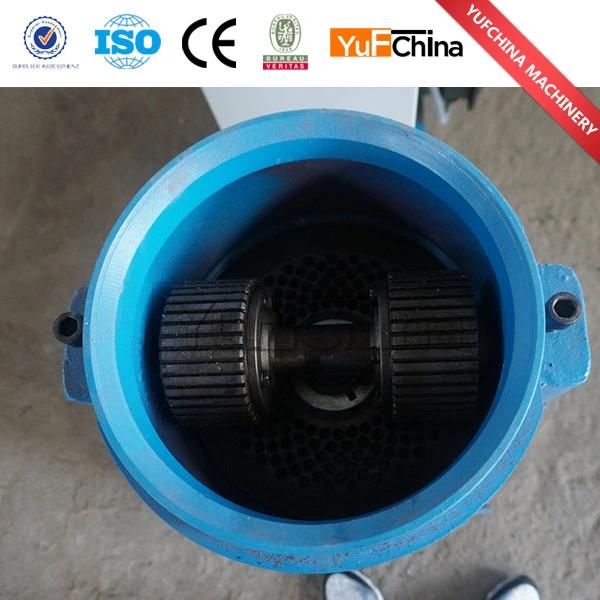

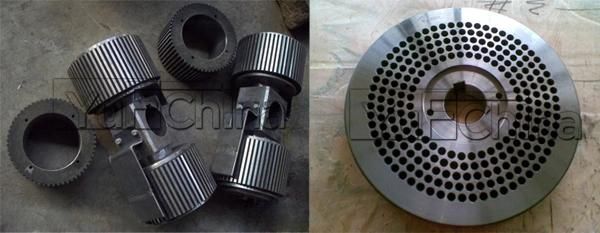

3)  The whole body with strong structure,the flat die and rollers is made of alloy steeland is wear-resisting, heat-resistant.
4)  High molding rate and high density.
5)  The diameter can adjust from 2.5-8mm according to customers' requirement.
  Detailed Images





Raw Material
Yufchina biomass wood pellet mill is able to produce cylindrical pellet, and thus be widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc.

Note that if the moisture content of the raw content is higher than 15%, we should add one dryer to dry them until the moisture content is less than 15%. If the moisture content is less than 15%,it can be crushed by hammer mill directly,then the pellets will be produced .



Final Product




Our Service



Pre-sale

We adhere to the principle of acquiring maximum profit at minimum investment,while meeting the needs of each customer.

During-sale

We have production progress report each week with detailed description and photos, including raw materials tables, process and deep process records, testing data sheest, etc.

After-sale

Warranty period of the equipment is 1 year.During the warranty period, the damage caused by non-human factor, YUFENG will be responsible for the repair or replacement.

About Us

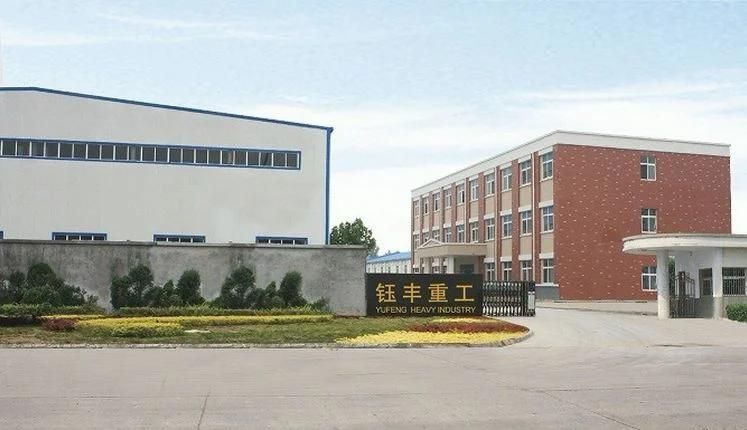

Yufchina Heavy Machinery Co.,LTD is founded in 2004, the production of R&D located in China. From 2004 on, Yufchina has offered the equipments with high-quality and reasonable price for over 200 customers in global, which helps them get $ 800,000 income annually.

If you have any questions, please feel free to contact us.

Zhengzhou Yufeng Heavy Machinery CO.,LTD
