• Model NO.：Z-600D
• Customized：Customized
• Condition：New
• Color：Customized
• Max Log Diameter：350mm
• Peeling Rate：>95%
• Power：18.5+18.5+3 Kw
• Output：10-15 T,H
• Dimension：7500 X 1800 X 1700 mm
• Weight：6200kg
• Delivery：1 X 20 Container
• Keyword 2：Log Peeling Machine
• Keyword 1：Wood Debarking Machine
• Keyword 3：Tree Debarking Machine
• Transport Package：Container
• Specification：CE, SGS
• Trademark：AG
• Origin：China
• HS Code：8465990000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. Z-600D Customized Customized Condition New Color Customized Max Log Diameter 350mm Peeling Rate >95% Power 18.5+18.5+3 Kw Output 10-15 T/H Dimension 7500 X 1800 X 1700 mm Weight 6200kg Delivery 1 X 20 Container Keyword 2 Log Peeling Machine Keyword 1 Wood Debarking Machine Keyword 3 Tree Debarking Machine Transport Package Container Specification CE, SGS Trademark AG Origin China HS Code 8465990000 Production Capacity 10 Sets Per Month

Product Description

 Single / Double Spindle Wood Debarking / Log Peeling Machine



Features:

1.  Adopt opened groove hopper, which makes one end for feeding, and the other end for discharging, which greatly improves work efficiency.

2.  As the teeth impact the timber section, the logs section is rotating around itself and cycle moving with high efficiency, so that it also has a better net rate of striping.

3.  It is available for many kinds of tree species, diameter, length and shape.

4.  The net rate of peeling logs bending is much higher.

5.  It with lower consumption, low failure rate and little maintenance workload.


Technical Parameters:

Model	Roller Q'ty	Power	Output	Max Log Diameter	Length of Roller	Peeling Rate
Z-600DQ	Double	7.5+7.5+2.2 kw	3-4 t/h	200mm	6m	>95%
Z-600D	Double	11+11+2.2 kw	6-8 t/h	300mm	6m	>95%
Z-700D	Double	18.5+18.5+3 kw	10-15 t/h	350mm	7m	>95%
Z 800S	Single	37+3 kw	12-15 t/h	400mm	8m	>95%
Z 900S	Single	37+3 kw	18-20 t/h	400mm	9m	>95%

Work Principle of Tree Debarking Machine:

Wood debarking machine is new generation wood peeling equipment with high efficiency which was innovated by our factory on the basis of foreign advanced technology. It had single and double roller type according to different wood with different diameter. This machine adopts open groove peeling room, the wood come into the peeling room from one side and come out from the other size. So it is continuous working. It conquers the defect of rolling drum and improves capacity greatly. It is suitable for big diameter wood and large scale factory.


The tree wood log debarking machine uses special force to let the wood doing circle movement in the hopper tank plate, and also around its own axis to do turning motion segment and irregular beating. The force is caused by the rotor which is with ladder type peel teeth. So that wood and teeth, wood and wood, wood and hopper tank,pectin friction, strike, extrude and peel off ceaselessly, Lead to bark and tree trunks are broken down and stripped fast, So as to achieve the effect of stripping efficiency.

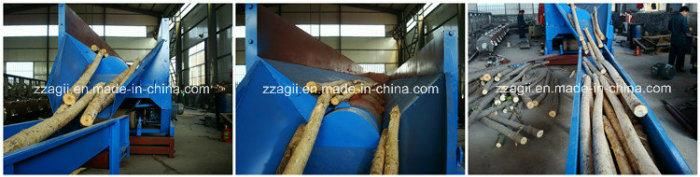

Debarked Wood Logs:
