• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Key Word：Wood CNC Router
• Working Area：1300*2500*200mm
• Table：Vacuum Table
• Spindle：3kw Hqd Water Cooling Spindle
• Inverter：Fuling Inverter
• Motor and Driver：Leadshine Stepper Motor and Driver
• Rail：Taiwan Hiwin Square Guide Rail
• Ball Screw：Taiwan Tbi Ball Screw
• Rack：German Helical Rack and Pinion
• Structure：Welded Big Steel Tube Structure
• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Key Word Wood CNC Router Working Area 1300*2500*200mm Table Vacuum Table Spindle 3kw Hqd Water Cooling Spindle Inverter Fuling Inverter Motor and Driver Leadshine Stepper Motor and Driver Rail Taiwan Hiwin Square Guide Rail Ball Screw Taiwan Tbi Ball Screw Rack German Helical Rack and Pinion Structure Welded Big Steel Tube Structure Transport Package Wooden Box Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

Firm 1325 Wood Door Making CNC Router Cutting Machine

Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size.
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

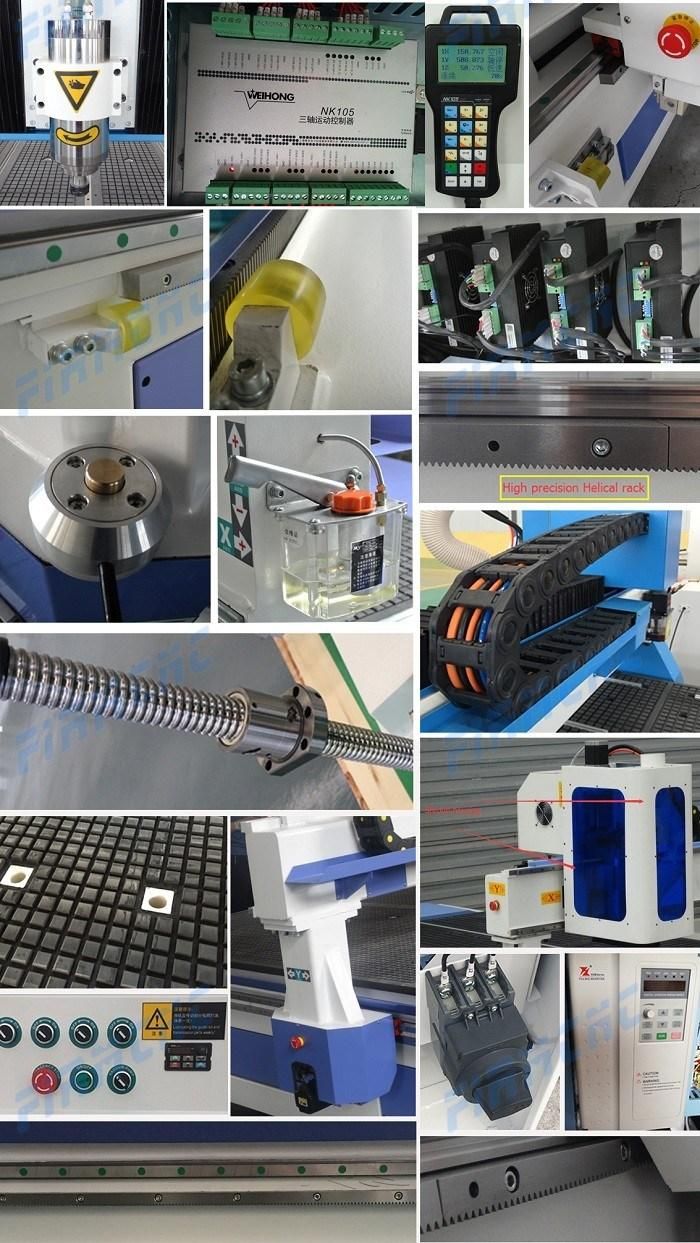

Technical specification

Brand	FIRM
Model	FM1325
Machine Size (mm)(W*L*thickness)	3070*1970*1550mm
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	0~24000RPM
Motor Driver	Leadshine Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	3.175mm, 4mm, 6mm, 12.7mm
Machine Structure	Welded big steel tube structure
Transmission System	X Y axis with German helical rack and pinion, Z with Taiwan TBI ball screw
X,Y,Z Rail	Taiwan Hiwin square rail
Mechanical Accuracy	<0.03mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/60Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	main for Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1650Kg

Samples

Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Service
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.

FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
