Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

Qingdao Zhongding Machinery Co., Ltd.
  • Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type：Straight Line
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：10-23m,Min
  • Certification：CE, ISO

Base Info

  • Model NO.：MF450A
  • Panel Thinkness：10-60mm
  • Min.length panel：100mm
  • Min.width panel：50mm
  • Manufacturing Principles：Glue Tank Underneath
  • Customized：Customized
  • Transport Package：Plywood Case
  • Specification：6730*850*1580mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659400
  • Production Capacity：2 Sets,Week

Description

Basic Info.

Model NO. MF450A Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Plywood Case Specification 6730*850*1580mm Trademark ZD Origin China HS Code 84659400 Production Capacity 2 Sets/Week

Product Description

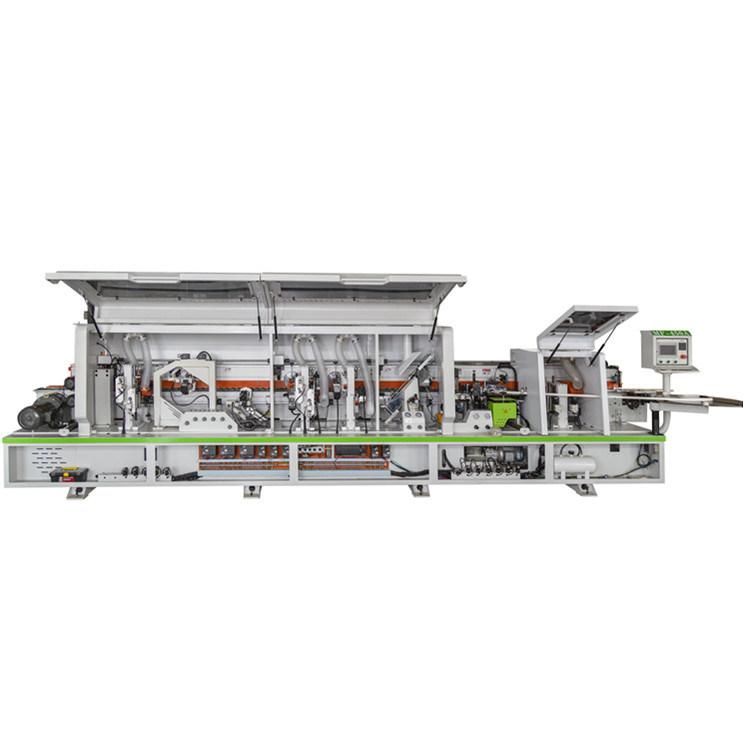

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

Technical Specifications:

Functions: Pre-milling, Gluing, edge banding, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing.

ModelMF450A
Banding tape thickness0.4-3mm
Banding tape width12-65mm
Workpiece thickness10-60mm
Workpiece length>=100mm
Workpiece width>=50mm
Heating power1.8kw
Feeding motor power3.7kw
Pre-milling motor power2.2kw*2
Glue spreading motor power0.75kw
End trimming motor power0.5kw*2
Rough trimming motor power0.75kw*2
Fine trimming motor power0.75kw*2
Corner rounding motor power0.5kw*2
Polishing motor power0.37kw*2
Feeding speed10-23m/min
Air pressure0.8Mpa
Overall dimension6700*850*1520mm


Detailed pictures:

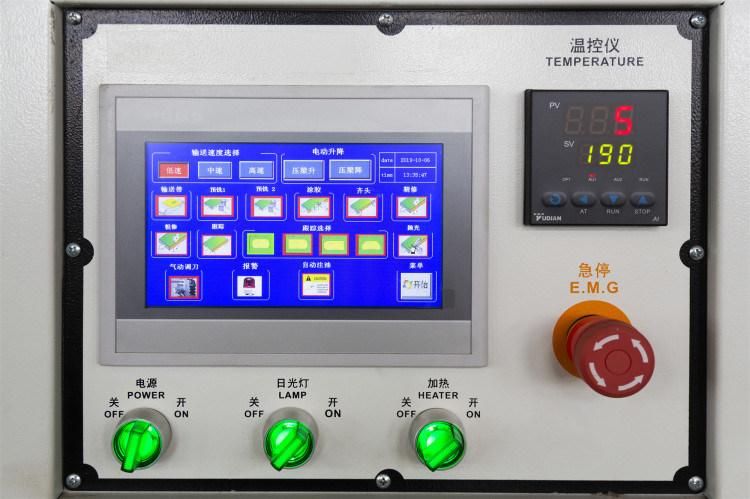

1. Control panel

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

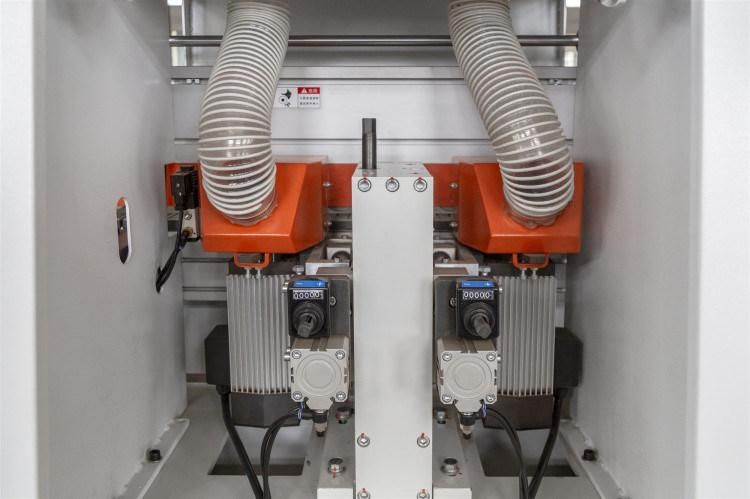

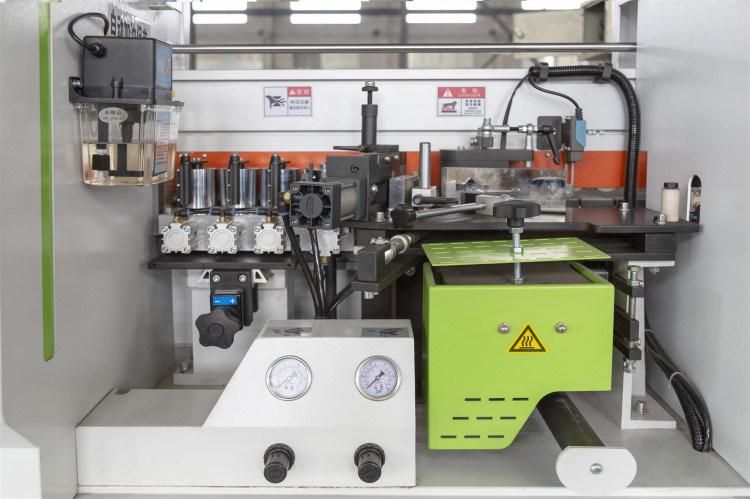

2. Pre-milling unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

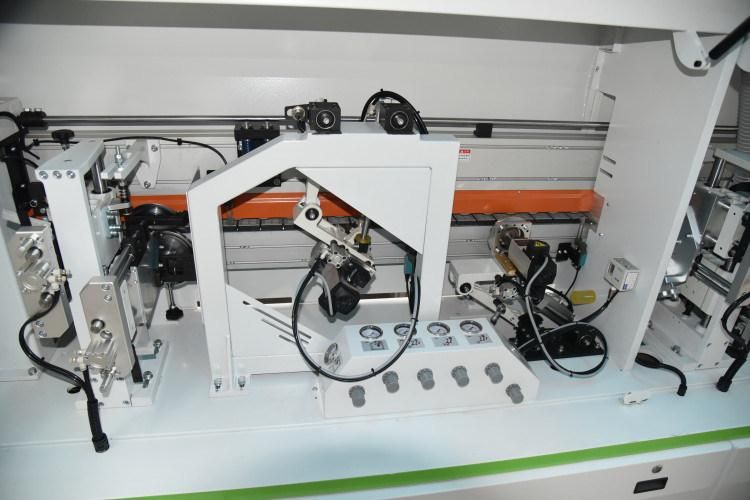

3. Gluing unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

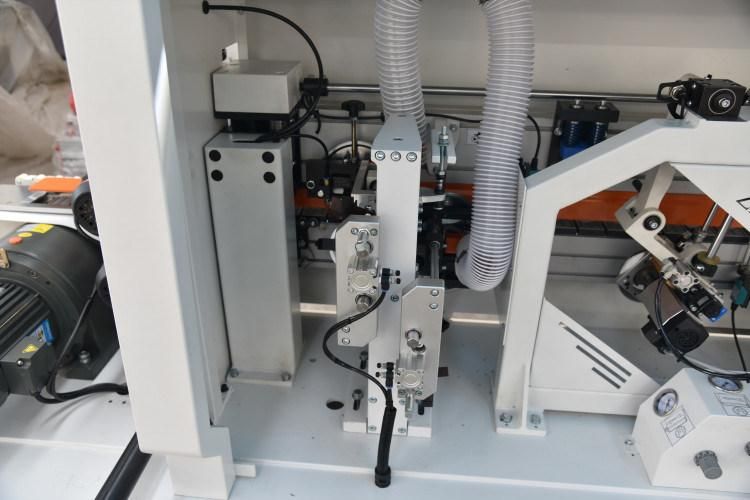

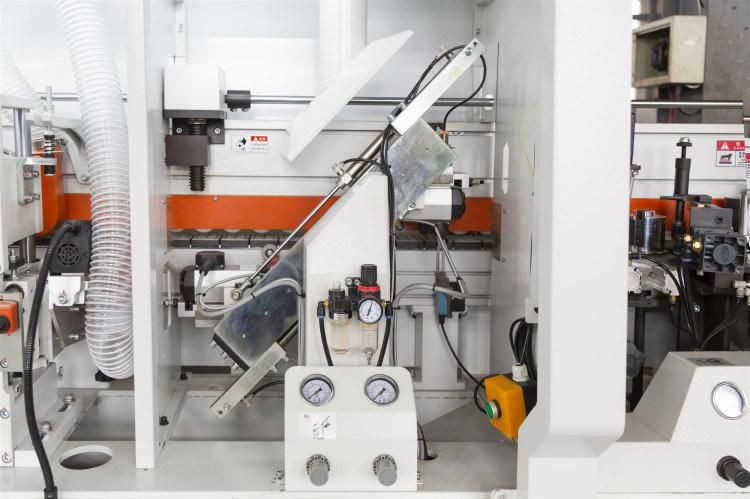

4. End trimming unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

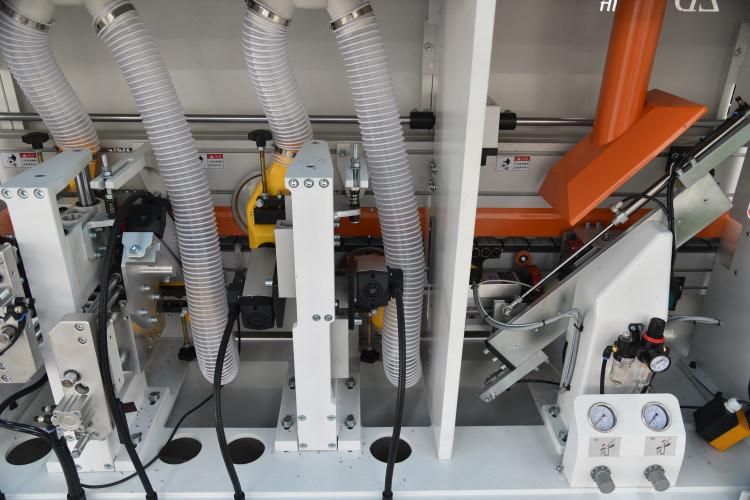

5. Rough trimming and fine trimming unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine
6. Corner rounding unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine
7. Scraping unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

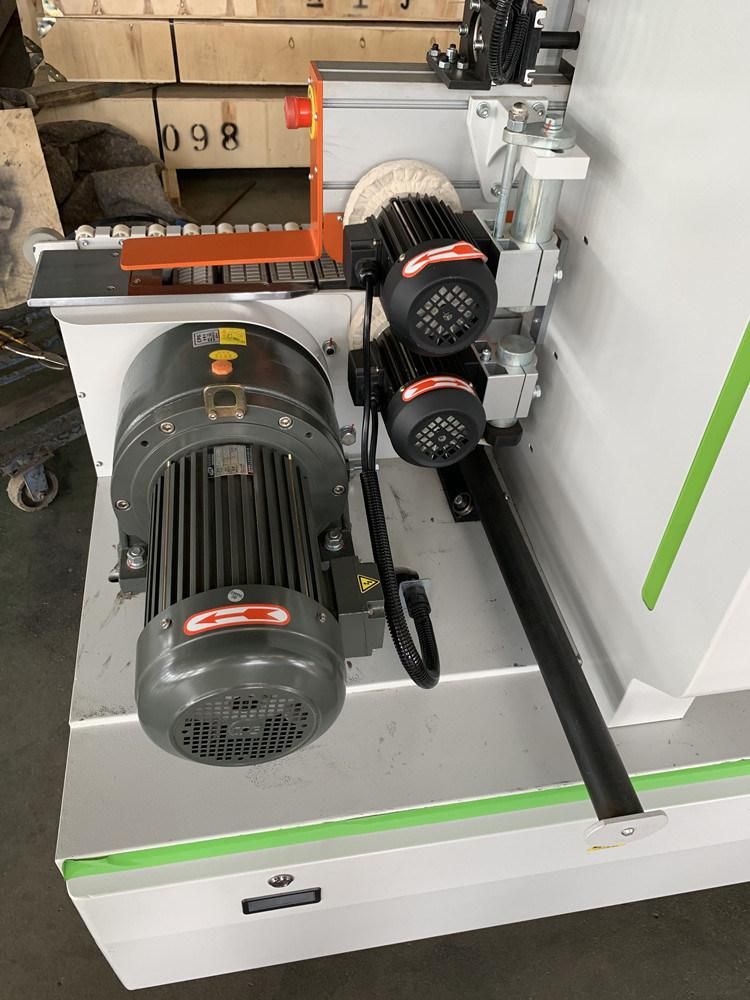

8. Buffing unit

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

Packaging & shipping:




Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

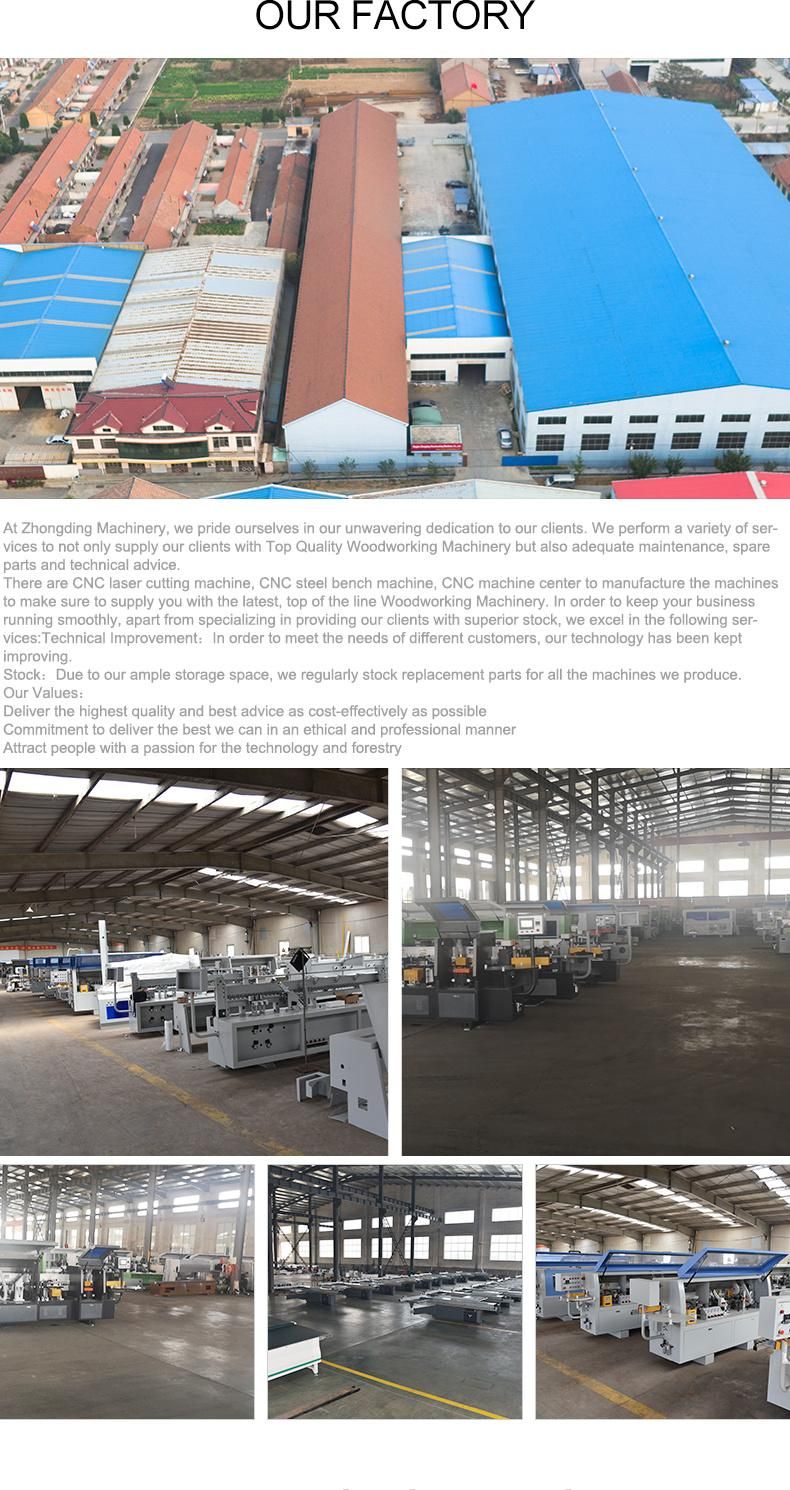

About us:


 Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machine to customers. Our company has professional technology, full range of testing lines and pipelining, CNC processing center, Laser cutting equipment, etc.

    Our products are mainly included Precise panel saw, Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
    Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine

Wood Furniture Machine Pre Milling Corner Rounding Automatic Edge Banding Machine








FAQ:

1. The MOQ is 1 set.
2. The delivery time is 15-20 days after deposit.
3. The voltage can be customized.
4. OEM service is available as we are factory.
5. CE and ISO certification available.
6. Factory address: Wangtai twon, Jiaonan city, Qingdao, China. Welcome to visit us!



For more details, pls feel free to contact us.
