1516 Double Axis 4 Blazes CNC Wood Turning Lathe Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type:Single-Axis Automatic Lathe
- Voltage:380V
- Tool Holder:Double-tool Holder CNC Lathe
- Automatic Grade:Automatic
- Precision:High Precision
- Setting Mode:Table
Base Info
- Model NO.:GJH 1516
- Controlling Mode:CNC
- Power Source:Electric
- Processing Accessory:Chuck CNC Lathe
- Certification:CE, SGS
- Running Mode:Stepper
- Control System:Guangxingkai
- Application:Woodworking
- Transport Package:Plywood Case
- Specification:GJH 1530
- Trademark:GJH
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. GJH 1516 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, SGS Running Mode Stepper Control System Guangxingkai Application Woodworking Transport Package Plywood Case Specification GJH 1530 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per MonthProduct Description
From professional CNC machine manufacturer:Professional CNC Wood Lathe Machine , For Lathing, Grooving , 3D Engraving
Model: 1516, or custmized size,
1.Mode GJH 1516 wood lathe machine is specially designed for woodworking. It has high precision, fast speed, cost-effective.

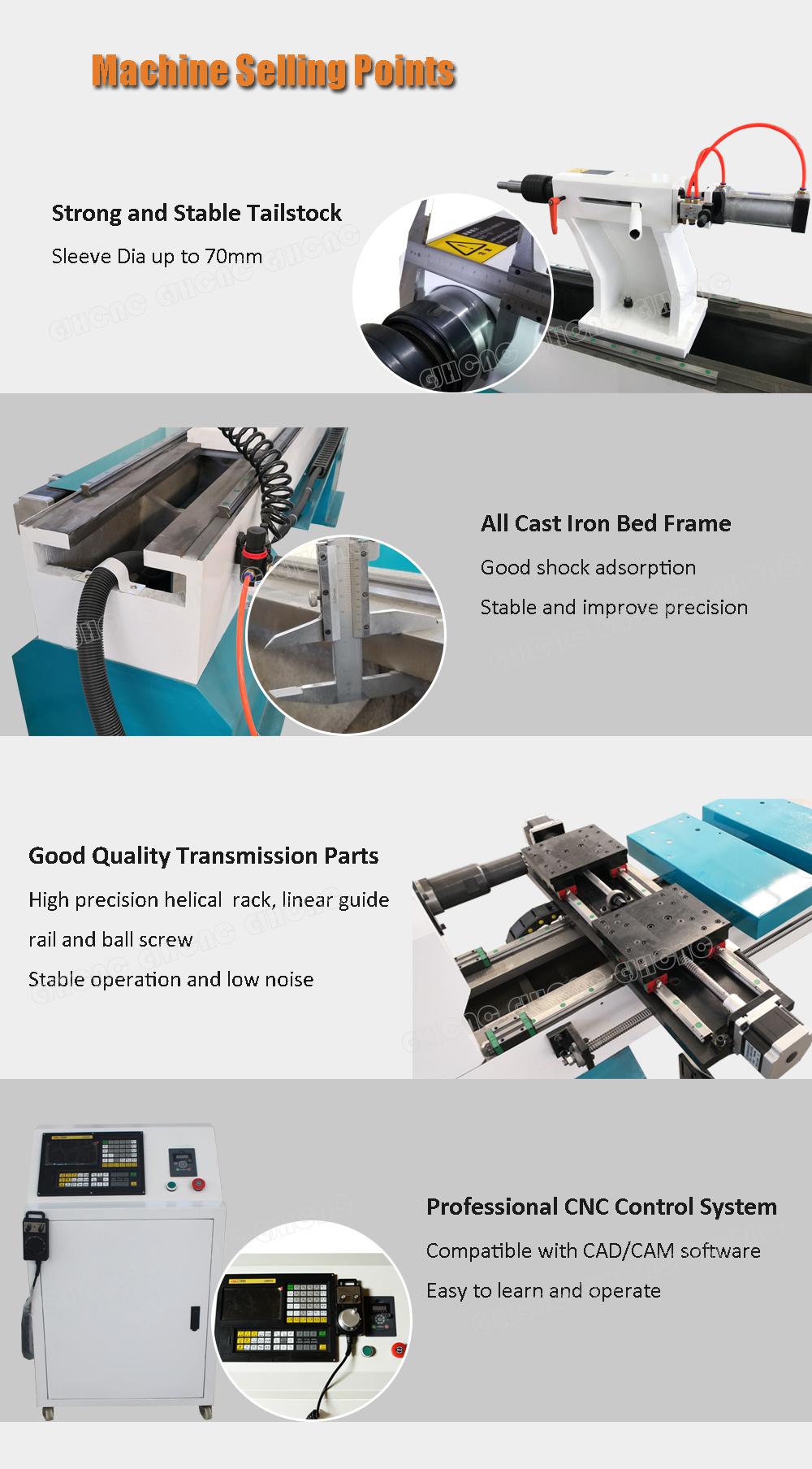

2.Strong lathe bed, thickness of cast iron reaches 24mm, with good stability
3.The center supporter prevents the shaking of slender wood during processing.
4.High Class frequency converter with high stability
5.Compatible with several CAD/CAM design software, easy operation.
Processing Material: | Rotary Wood |

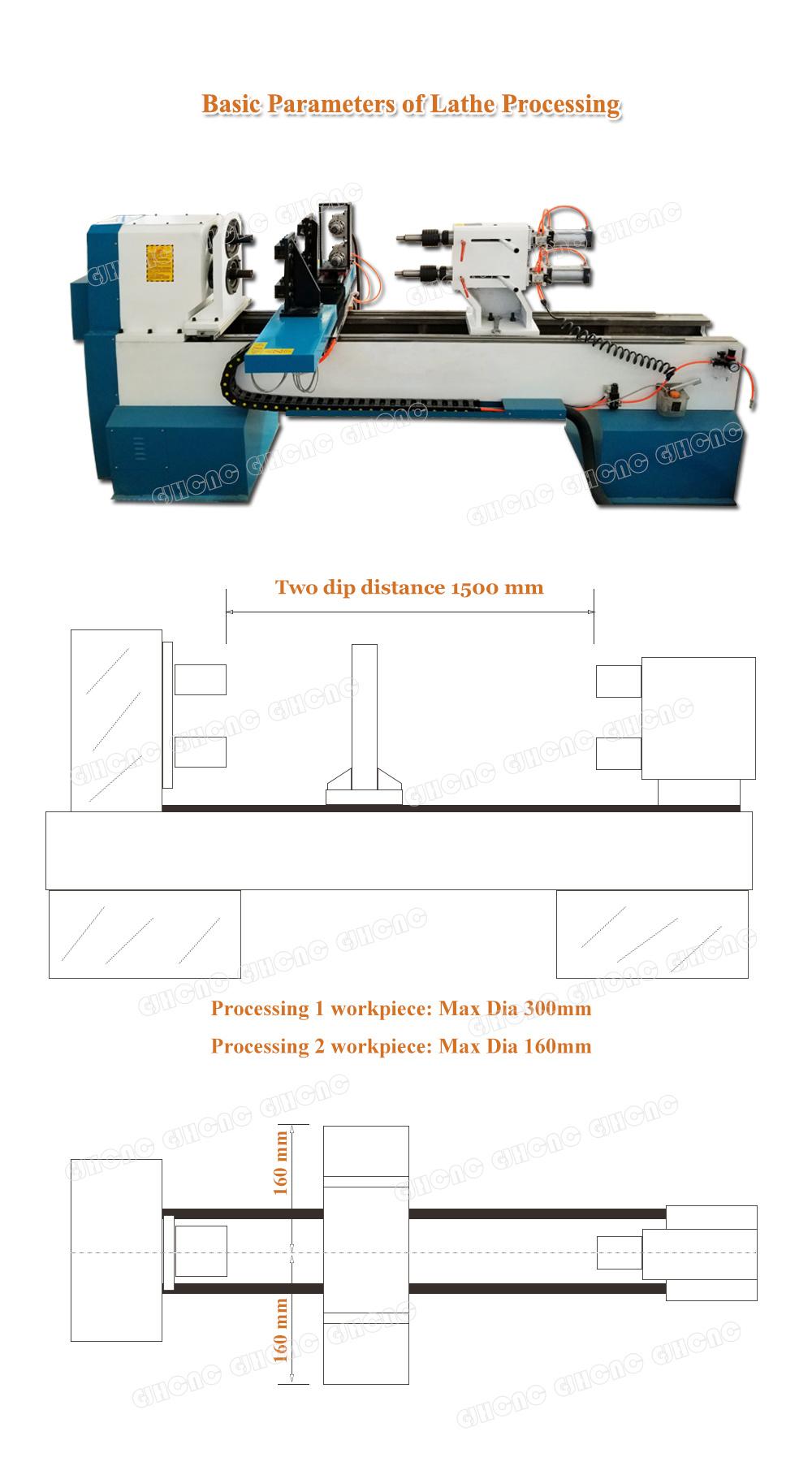

Max Working Length: | 1500mm |
Max Working Diameter: | 160mm |
Control System: | Guangxingkai Control System |
Frequency Converter: | Middle Drive |
Bed structure: | Heavy integral casting |
Driving mode: | High precision ball screw |
Guideway Drive: | 25 Linear Guide rail 25 Flange Slider |
Power Spindle: | 4 Kw pure copper three-phase asynchronous motor |
Power Spindle speed: | 0-2800 Rpm |
Engraving Spindle: | 2.2Kw, Air-cooling, |
Engraving Spindle speed: | 0-24000 Rpm |
Operating Voltage: | 3-phase 380V Voltage |

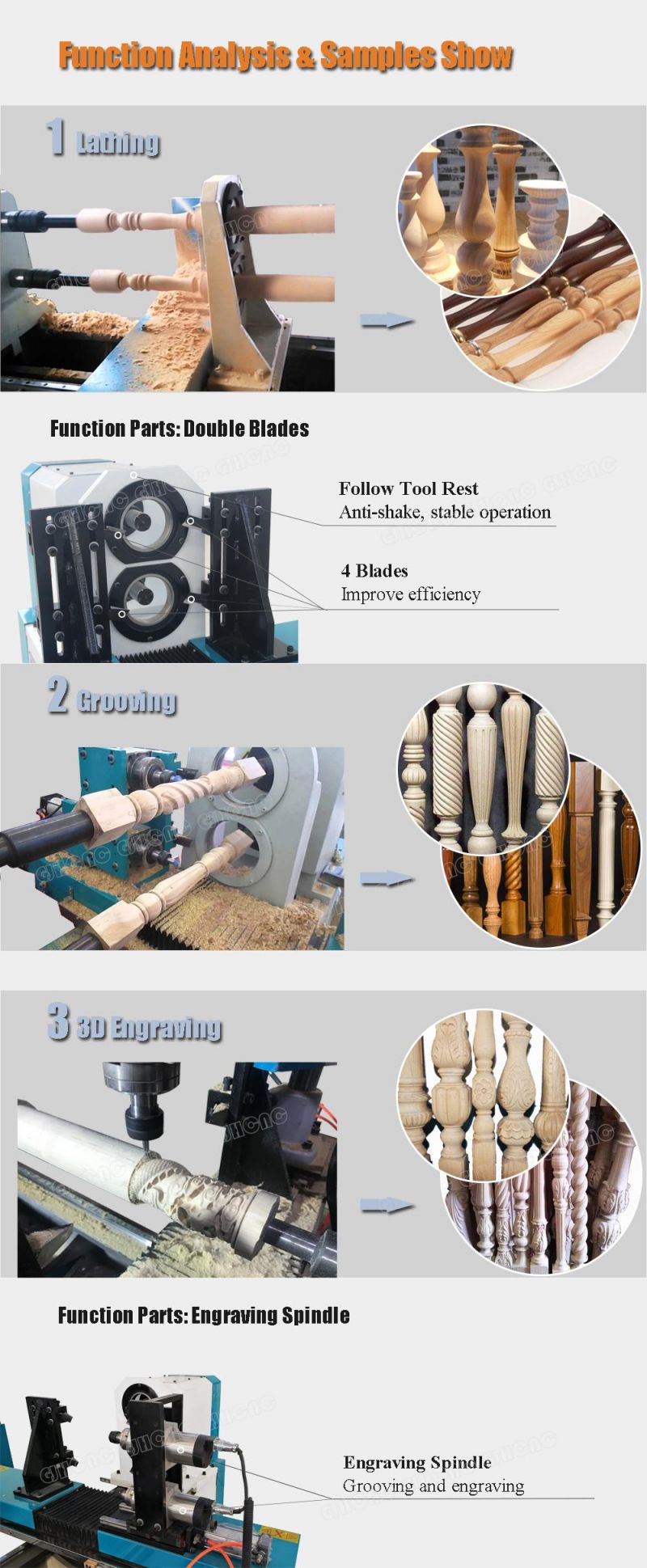

Main Functions: | Lathing, grooving, 3D engraving, flat engraving |
If you have specific requirement for CNC wood turning lathe, customization is available.
