• Model NO.：MJ6132tz
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Dimension of Sliding Table：3200*360mm
• Gross Cut Capacity：3200mm
• Width of Cut：1250mm
• Tilting Saw Group：0-45
• Diameter of Main Saw Blade：300mm
• Max Cutting Height：80mm
• Speed of Main Saw Spindle：4000,6000 r.p.m
• Main Saw Motor Power：5.5kw
• Main Spindle Diameter：30mm
• Diameter of Scoring Saw Blade：120mm
• Transport Package：Plywood Case
• Specification：3250*3150*900mm
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659100
• Production Capacity：500 Set Per Year

Basic Info.

Model NO. MJ6132tz Certification CE, ISO Customized Customized Condition New Color Customized Dimension of Sliding Table 3200*360mm Gross Cut Capacity 3200mm Width of Cut 1250mm Tilting Saw Group 0-45 Diameter of Main Saw Blade 300mm Max Cutting Height 80mm Speed of Main Saw Spindle 4000/6000 r.p.m Main Saw Motor Power 5.5kw Main Spindle Diameter 30mm Diameter of Scoring Saw Blade 120mm Transport Package Plywood Case Specification 3250*3150*900mm Trademark QDZD Origin Qingdao HS Code 84659100 Production Capacity 500 Set Per Year

Product Description

Factory supply table saw machine for woodworking processing

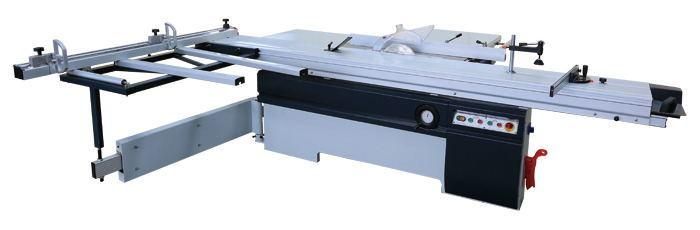

PANEL SAW MJ6132TZ


Product details:




Specification:


Model	MJ6132TZ	Main saw motor power	5.5KW
Dimension of sliding table	3200*360mm	Main spindle diameter	30mm
Gross cut capacity	3200mm	Diameter of scoring saw blade	120mm
Width of cut between saw blade and rip fence	1250mm	Speed of scoring saw spindle	8000 r.p.m
Tilting saw group	0-45°	Scoring saw motor power	1.1KW
Diameter of main saw blade	300mm	Scoring saw spindle diameter	20mm
Max cutting height(90°)	80mm	Weight	750KGS
Speed of main saw spindle	4000/6000 r.p.m	Overall dimension	3250*3150*900mm

Feature:

1. Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
2. Moveable table guide track is chromium steel bar structure, exact and durable
3. The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
4. With oxidation treatment, the sliding table surface is beautiful and durable
5. The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
6. The saw blade lifting is electrical controlled with titling digital display to make the operation more precision simple

Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
8) Certificate: CE&ISO 9001 Certificate

FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO9001 certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Package:





About us:


Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
