Plywood Machine Multi-Layers Veneer Dryer Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type:Drying Machine
- Automatic:Automatic
- Certification:CE, ISO
- Transport Package:Container
- Trademark:METRO
- Origin:China
Base Info
- Model NO.:dryer machine
- Production Capacity:500sets,Year
Description
Basic Info.
Model NO. dryer machine Production Capacity 500sets/YearProduct Description
Plywood Automatic Multilayers Dryer MachineTechnical Parameters:
Model | JGBY214×8/10-15IIm |
Nominal pressure | 100KN |
Layers | 15 |
Layer spacing | 70mm |
Hot platen | 16pcs |
Hot platen size | 2800×1340×38 mm |
Number of plunger cylinders | 2pcs |
Dia of cylinders | 120/100mm |
Stroke | 1050mm |
Pressure | <6.3Mpa |
Clossing time | 20s |
Low pressure pump flow | 140L/min |
Power | 5.5kw-4P |
Control mode | Half automatic |
Weight | 6500KGS |
Overall size | 4630×1340×2650mm |

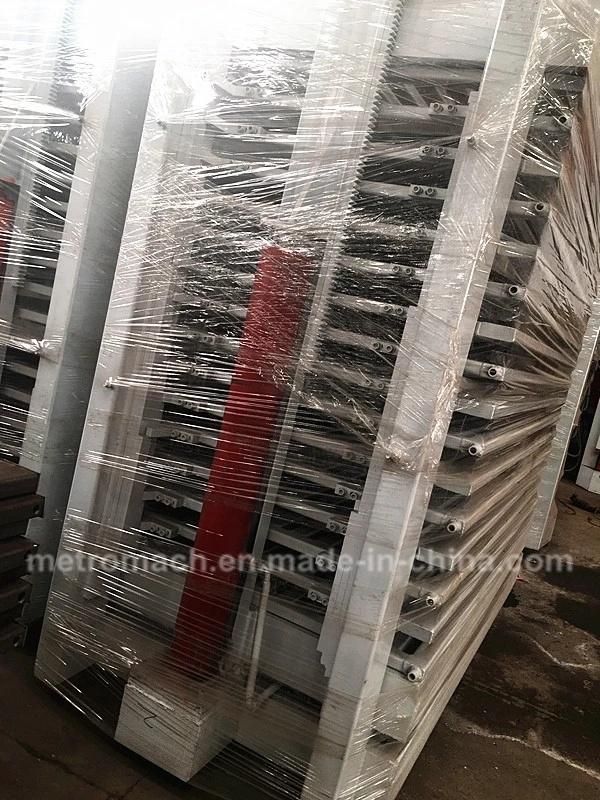

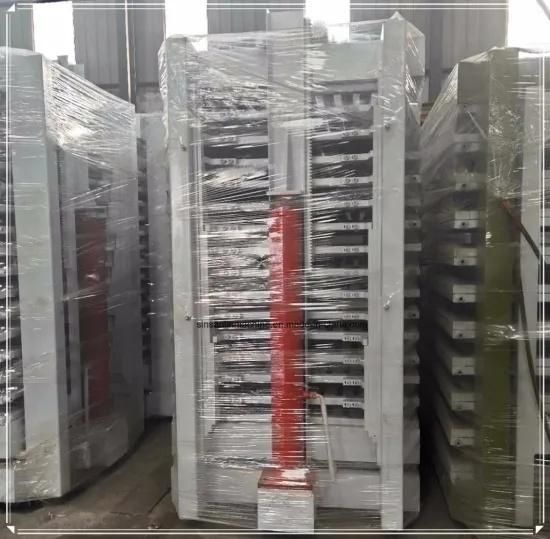

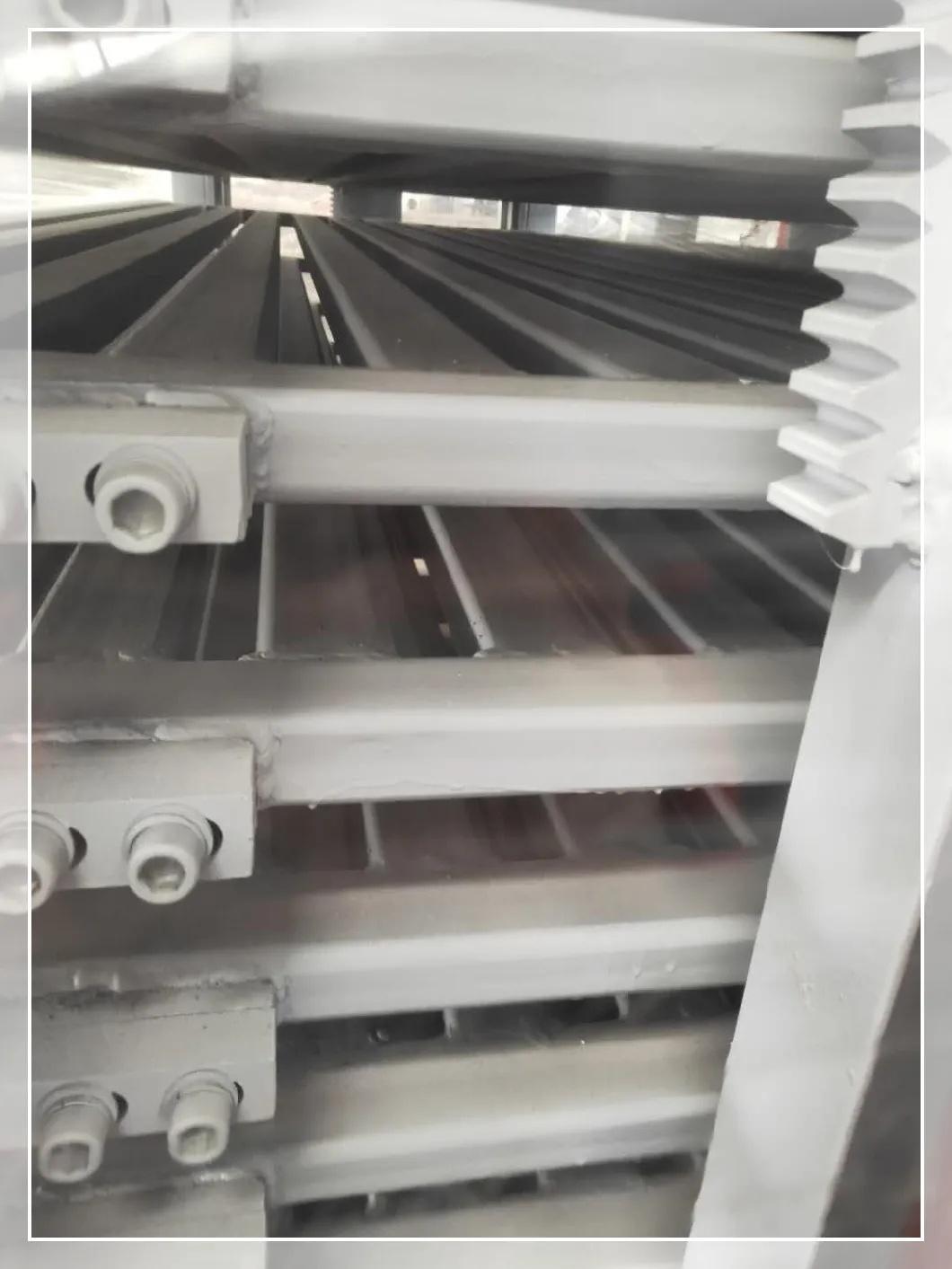

Machine Photos:
