• X and Y Axis Transmission：Germany Herion 1.5mrack and Pinion
• Z-Axis Transmission：Germany Tbi Ball Screw
• Guide Rail：Taiwan Hiwin 25mm Linear Rail
• Spindle：9.0kw, Air-Cooling
• Working Mode：Japan Yaskawa  750W Servo Motor
• Xy Transmission：Imported Rack
• Z Transmission：Taiwan Tbi Ball Screw
• Reudcer：Japan Shimpo
• Auto Tool Change：Yes, Linear Type
• Dust-Collection Function：Yes
• Color：Customer Needing
• Dust Collector：4kw, Double Bags
• Inverter：Hpmant 11kw
• Transport Package：Plywood Packing
• Specification：2100*3200*1900mm
• Trademark：Guandiao
• Origin：Jinan
• HS Code：8465990000
• Production Capacity：10000 Sets,Year

Basic Info.

X and Y Axis Transmission Germany Herion 1.5mrack and Pinion Z-Axis Transmission Germany Tbi Ball Screw Guide Rail Taiwan Hiwin 25mm Linear Rail Spindle 9.0kw, Air-Cooling Working Mode Japan Yaskawa  750W Servo Motor Xy Transmission Imported Rack Z Transmission Taiwan Tbi Ball Screw Reudcer Japan Shimpo Auto Tool Change Yes, Linear Type Dust-Collection Function Yes Color Customer Needing Dust Collector 4kw, Double Bags Inverter Hpmant 11kw Transport Package Plywood Packing Specification 2100*3200*1900mm Trademark Guandiao Origin Jinan HS Code 8465990000 Production Capacity 10000 Sets/Year

Product Description

Product Description

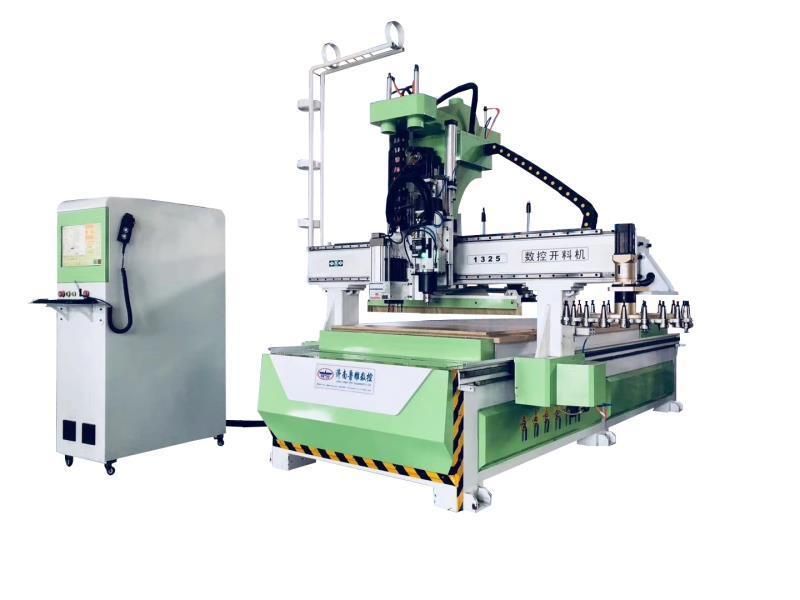

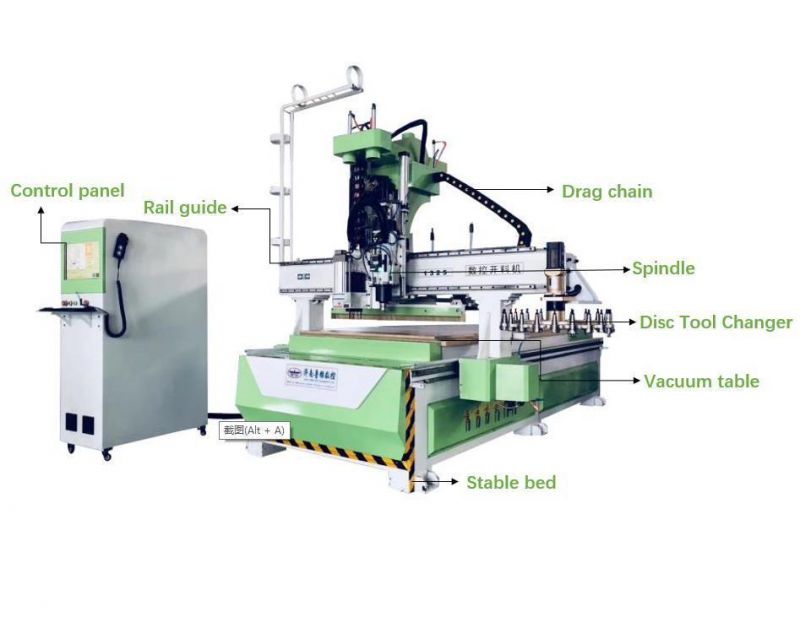

ATC Woodworking CNC Processing center





Advantage of ATC Woodworking CNC Processing center
1. The overall bed with steel seamless welding ,wearing strong, durable ,not easily deformed.Imported square guide rail and high precision ball screw, high precision,wear -resistant,smooth operation
2.Linear automatically tool changer system, tool change only takes more than ten seconds, you can save the tool change time, improve the production efficiency
3.Optional Taiwan LNC  system, Intelligent processing cross-border protection functions to prevent the design area beyond, and the intelligent processing speed control function, you can adjust the processing speed, increasing the tool working life
 4.T slot lathe structture and 6 separated vacuum adsorption table .assuring the high stability .can adsorb different size plates, more flat sheet

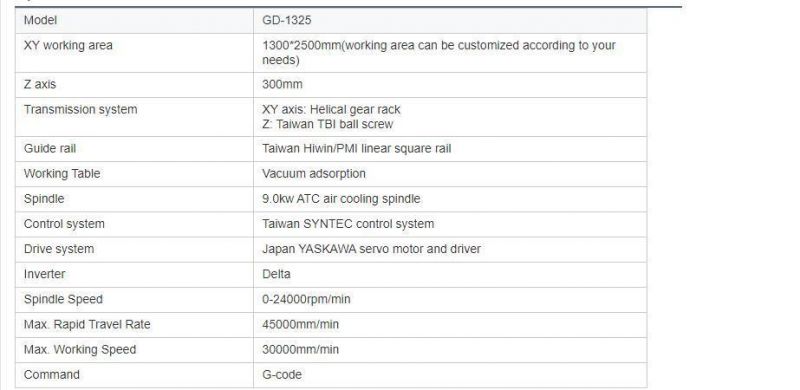

ATC Woodworking CNC Processing center technical parameters

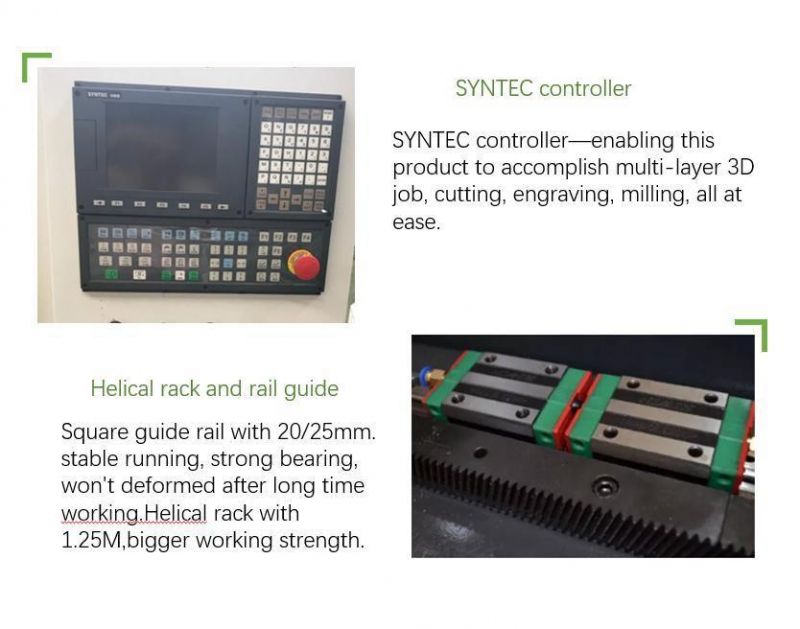

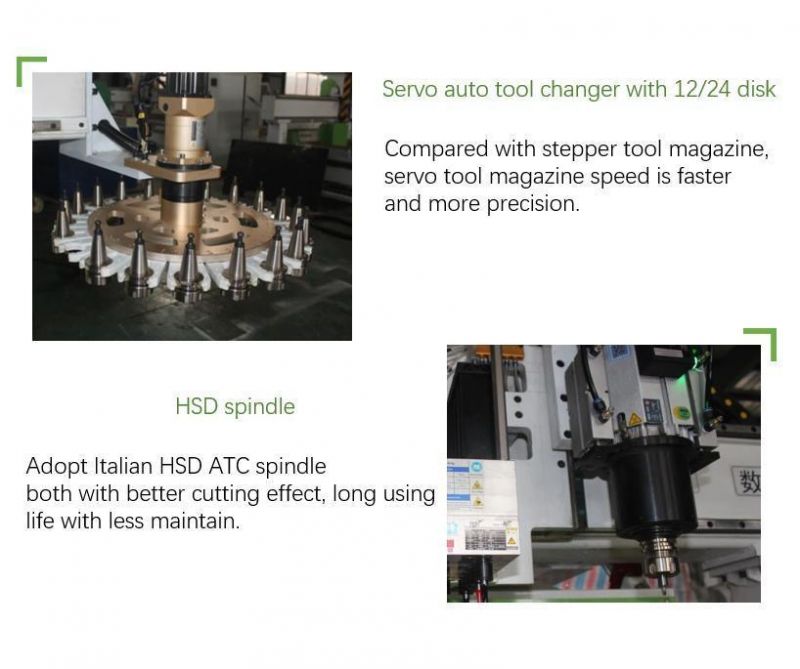

ATC Woodworking CNC Processing center details

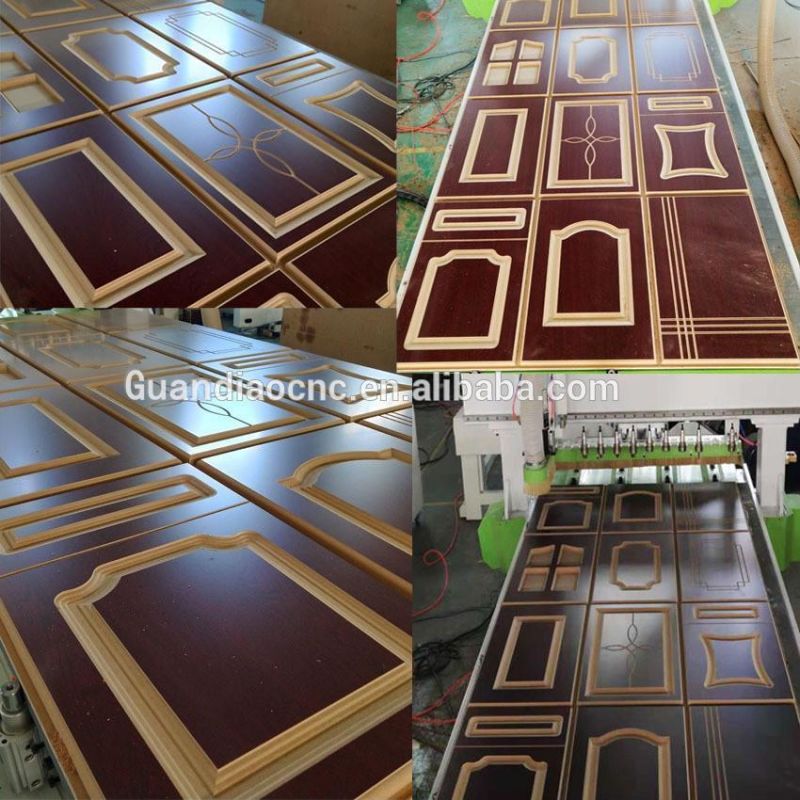

ATC Woodworking CNC Processing center samples




Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
  If you have other needs, please let me know

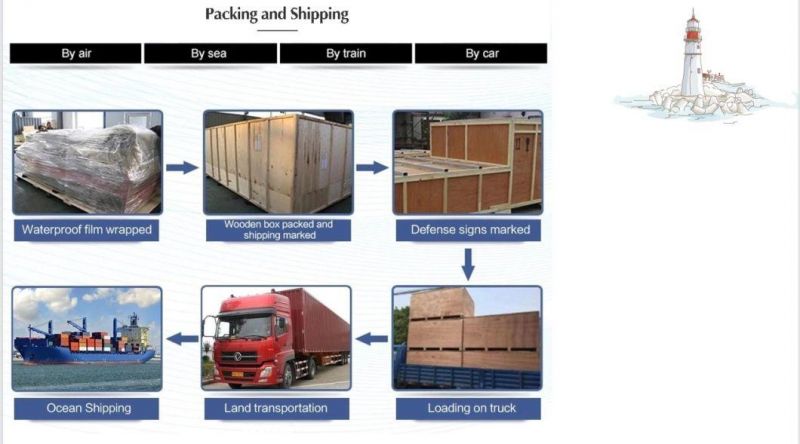

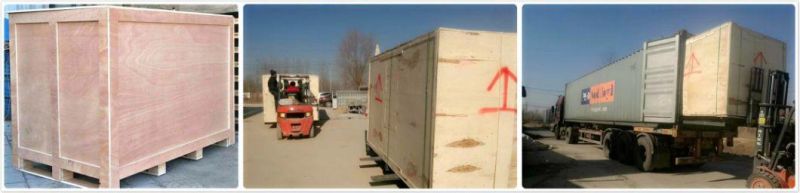

Packaging & Shipping

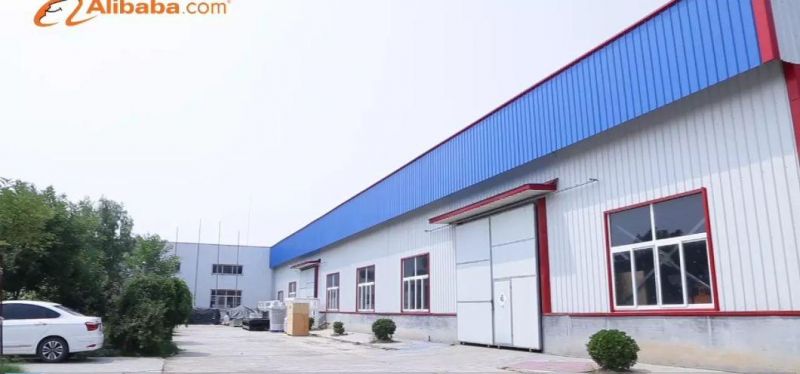

Company Information
Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.






Any needs,please Contact me
