• Customized：Customized
• Condition：New
• Color：Customized
• Item：Automatic Tool Change CNC Router
• Max Engraving Speed：3000mm,Min
• Spindle Power：9kw Air Cooling Spindle
• Spindle Speed：12000-24000rpm
• The Number of Knife：6-8 Pieces
• The Manner to Change Knife：Linear Type
• Xyz Traveling Positioning Accuracy：0.03,300mm
• Working Voltage：AC380V,50,60Hz, 3pH
• Drive Motors：Servo Motors and Drivers
• Key Words：CNC Router
• Working Area：1300*2500mm
• Z Axis Height：200mm
• Table：Vacuum Table
• Transport Package：Plywood
• Specification：CE
• Trademark：ZK
• Origin：Jinan, Shandong
• HS Code：8465990000
• Production Capacity：200 Sets,Year

Basic Info.

Customized Customized Condition New Color Customized Item Automatic Tool Change CNC Router Max Engraving Speed 3000mm/Min Spindle Power 9kw Air Cooling Spindle Spindle Speed 12000-24000rpm The Number of Knife 6-8 Pieces The Manner to Change Knife Linear Type Xyz Traveling Positioning Accuracy 0.03/300mm Working Voltage AC380V/50/60Hz, 3pH Drive Motors Servo Motors and Drivers Key Words CNC Router Working Area 1300*2500mm Z Axis Height 200mm Table Vacuum Table Transport Package Plywood Specification CE Trademark ZK Origin Jinan, Shandong HS Code 8465990000 Production Capacity 200 Sets/Year

Product Description

Application:

1) Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

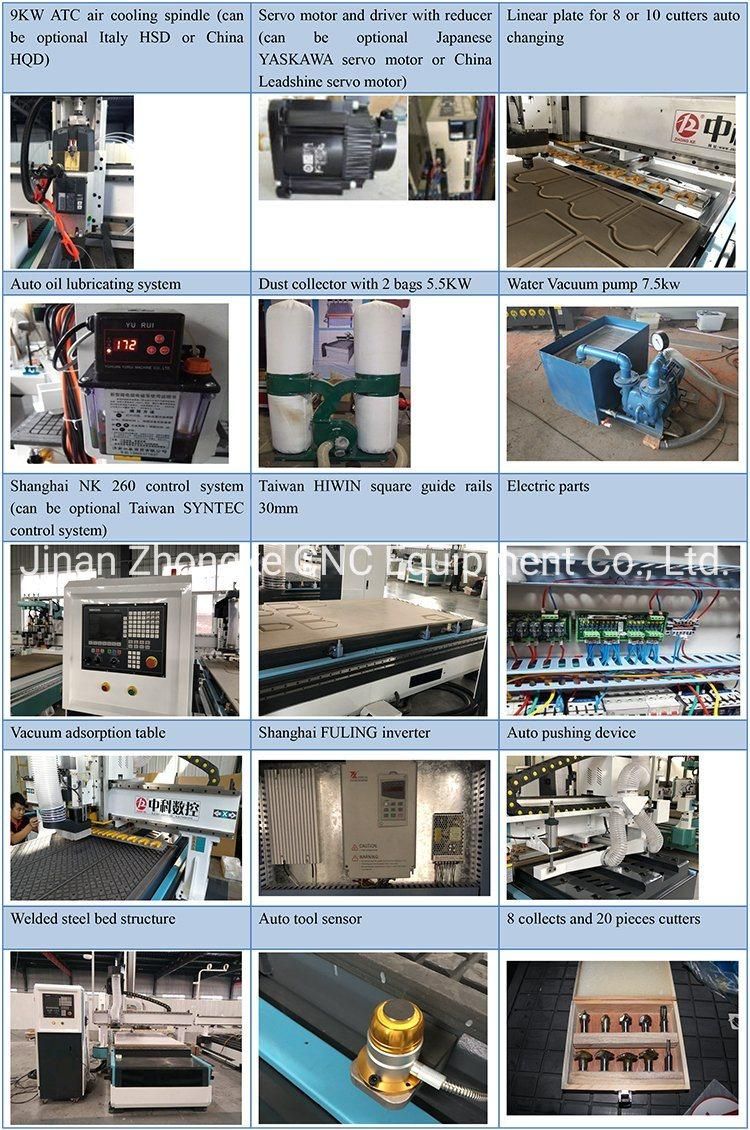

Specification

X Y Z axis travel distance	1300x2500x200mm
feeding height	200mm
ATC tool type and number	8 PCS  linear type
Spindle power	9KW air cooling atc spindle
Rail type	square rails
Control system	NK 260 control system or Taiwan SYNTEC control system
Drive type	servo motor and driver
Transmit	X Y Oblique gear rack /  Z ballscrew
Table type	Vacuum absorption with T slot clamping
Max travel speed	50000mm/min
Working precision	0.05mm
power	AC380V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc
command code	HPGL, G code
Machine / packing size	3.55*2.6*1.62m/ 3.67*2.13*1.86m
Net / Gross weight	2000KG

 Sample pictures



Technical Support:

1. The Whole machine Guarantee for 1 years.

2. 24 hours online service, free technical support lifetime .we hope every customer can use our machine easily and have a funof it.if you have any problems of machine in 2 or 3, 5 years , please feel free to contact us.we will always be here .

3. Machine will comes with manual instruction and operation disk (Guiding Videos) for software Installation, operation and machine's using and maintenance.

4. We will provide the consumable parts at an agency price.

5. Machine has been adjusted before delivery,pls kindly tell us If there is any other questions.

>>> FAQ



Package photo




If you have special requirements, of course, we can customize the machine according
    to your requirements to suit your needs.
