• Model NO.：JCW1325R-8H
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Name：Multi Head 4 Axis CNC Machine
• Application：Wood Chair Table Sofa Legs, Sculptures...
• Spindle：Air or Water Cooling Spindle
• Motor：Japan Yaskawa Servo Motor
• Software：Powermill with Post Processor
• System：5 Axis Taiwan Syntec
• Working Size of Each Rotary Axis：1200mm Length, 300mm Diameter (Can Be Customized)
• Rotary Axis Quantity：8 (Option:1, 4, 6, 10, 12)
• CNC Router Type：5 Axis (Option: 4 Axis)
• Option：3D Scanner
• Transport Package：Wood Case and Steel Support
• Specification：4.6L x 2.26W x 2.3H meters
• Trademark：CHAODA
• Origin：Linyi
• HS Code：8464909000
• Production Capacity：1000 Set , Month

Basic Info.

Model NO. JCW1325R-8H Customized Customized Condition New Color Customized Machine Name Multi Head 4 Axis CNC Machine Application Wood Chair Table Sofa Legs, Sculptures... Spindle Air or Water Cooling Spindle Motor Japan Yaskawa Servo Motor Software Powermill with Post Processor System 5 Axis Taiwan Syntec Working Size of Each Rotary Axis 1200mm Length, 300mm Diameter (Can Be Customized) Rotary Axis Quantity 8 (Option:1, 4, 6, 10, 12) CNC Router Type 5 Axis (Option: 4 Axis) Option 3D Scanner Transport Package Wood Case and Steel Support Specification 4.6L x 2.26W x 2.3H meters Trademark CHAODA Origin Linyi HS Code 8464909000 Production Capacity 1000 Set / Month

Product Description

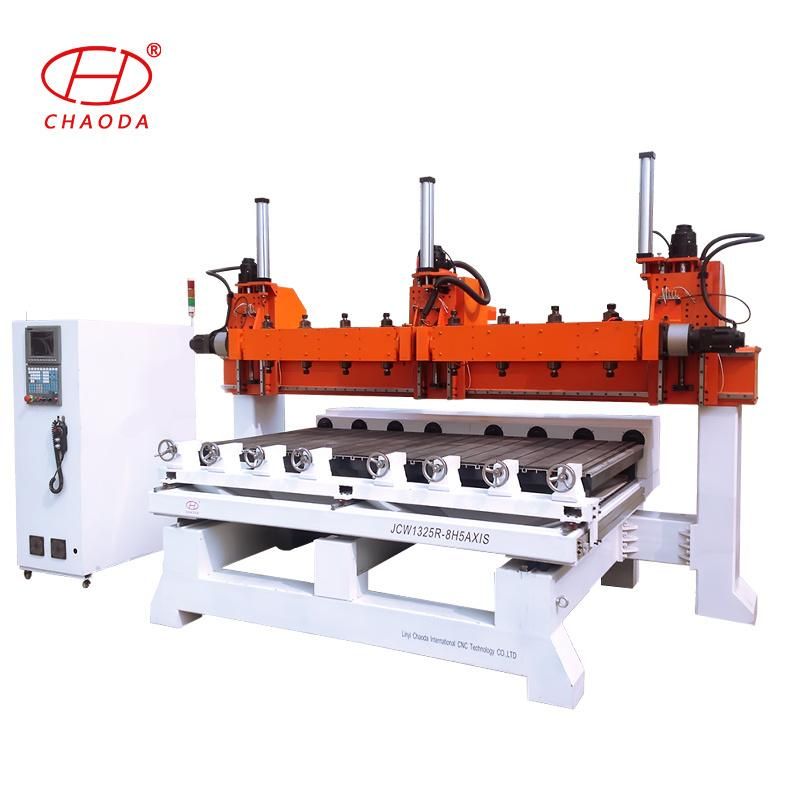

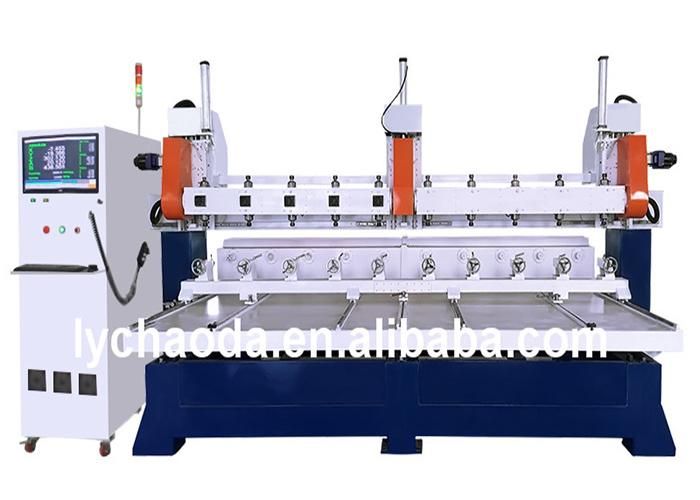

5 Axis  4 Axis  Multi-Head Air Cooled Spindles Rotary CNC Router Making Furniture Legs, Hadrail pillars, 3D Sculptures, Columns










Specifications

Model	JCW1325R--8H
Working size	1200mm ( L) x 300mm (W) x 10 rotaries
Spindle power	10*3.5KW Air Cooled (option: Water Cooled)
Spindle rotating	0-18000rpm
Max moving speed	20m/min
Reposition precision	0.05mm
Control system	5 Axis Syntec (option: Ncstudio)
Motor	Servo system

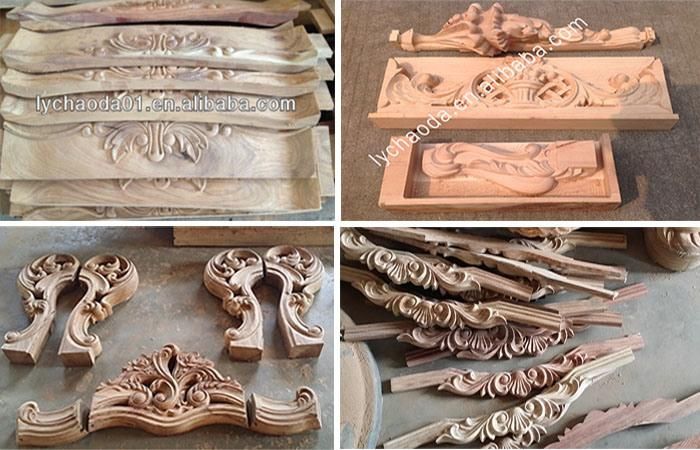

Application

All kinds of wood, hardwood, solidwood, plywood, foam, EPS, polystyrene, polyurethane, styrofoam, polyfoam, composite board, PVC, plastic, acrylic, Organic glass, and other materials.

1) Decoration industry

2) Advertising industry

3) Mould industry

4) Construction industry

5) Craft industry

6) Furniture industry

7) Sculpture, statue, figure industry

8) Model industry

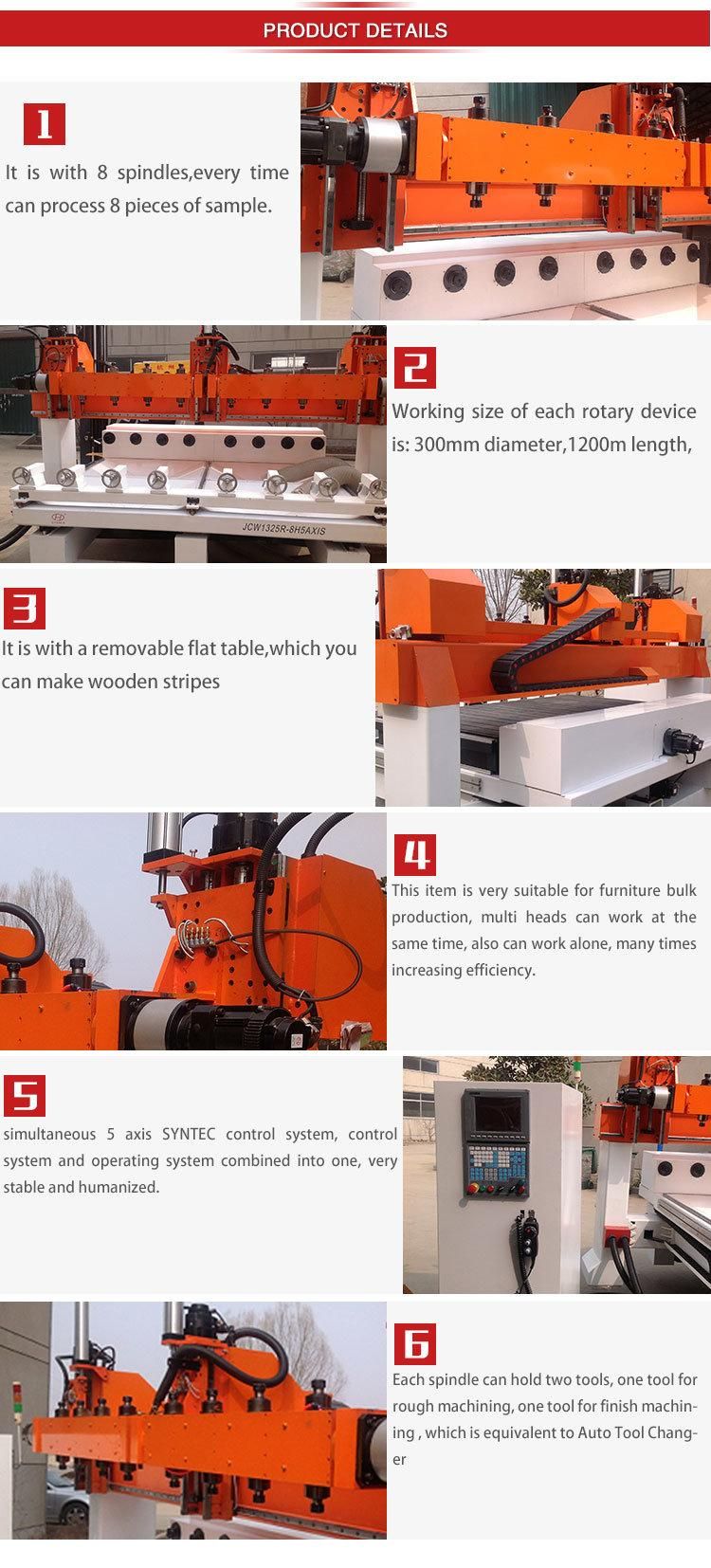

Main Features

1) This 5 axis cnc router machine with 8 rotary axis is with removable table, so, when you cut and engrave the flat /      plane, just need to put on this table; when you do the column / round / cylinder, just need to take down the     moveable table.

2) Each spindle has two heads with two tools, which is equivalent to Auto Tool Changer

3) Multi spindles can work at the same time,also can work alone, many times increasing inefficiency. can also

    control the machine heads independently, can use only one head to process and make increasing the working

     area.

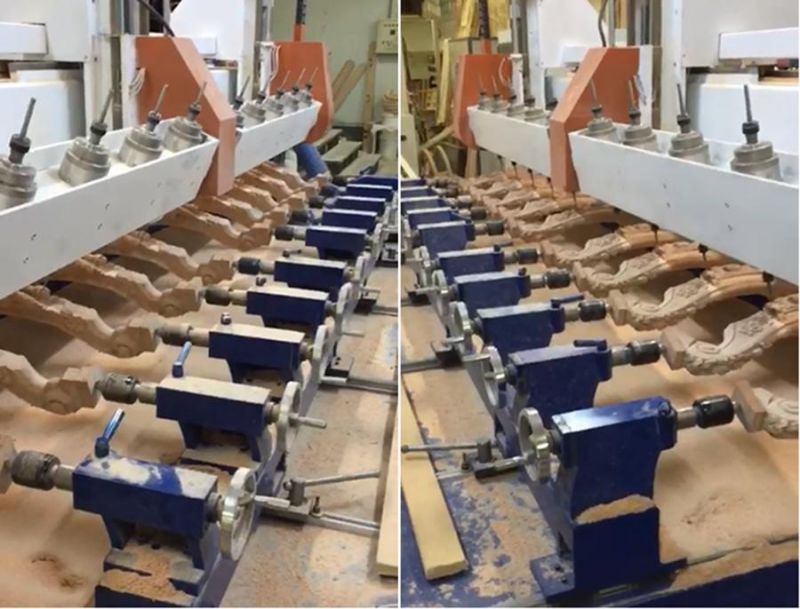

4) This machine is very suitable for furniture bulk production such as desk legs/stair handrails and other column /

     cylinder products,it also can easily engrave 360 degree human body, Buddhist statue, sculpture and other art

     works

5) Easy-to-operate Taiwan SYNTEC control system

6) Powerful PowerMill software with post processor

7) Except X, Y, Z and Rotary Axis, the 5th axis is the spindle can swing front and back, which can do
more complex work.
