• Model NO.：BY815X8,4-IIz
• Work Mode：Period
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• Pressure：400t,500t,600t,800t and So on
• Machine Color：Customization
• Cylinder Position：Upside
• Cylinder Type：Solid
• Hydraulic Pump：Automatic
• Plywood Conveyor Way：Automatic Chains Trolley
• Main Frame：Composited Frame
• Average Pressing Time：1hour
• Application：Plywood,Film Faced Plywood,Fancy Plywood
• Hydraulic Valve：Japan
• Transport Package：Plastic Film
• Specification：3600x4200x4220mm
• Trademark：METROMACH
• Origin：China
• HS Code：8479300000
• Production Capacity：800sets,Year

Basic Info.

Model NO. BY815X8/4-IIz Work Mode Period Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA Pressure 400t/500t/600t/800t and So on Machine Color Customization Cylinder Position Upside Cylinder Type Solid Hydraulic Pump Automatic Plywood Conveyor Way Automatic Chains Trolley Main Frame Composited Frame Average Pressing Time 1hour Application Plywood/Film Faced Plywood/Fancy Plywood Hydraulic Valve Japan Transport Package Plastic Film Specification 3600x4200x4220mm Trademark METROMACH Origin China HS Code 8479300000 Production Capacity 800sets/Year

Product Description

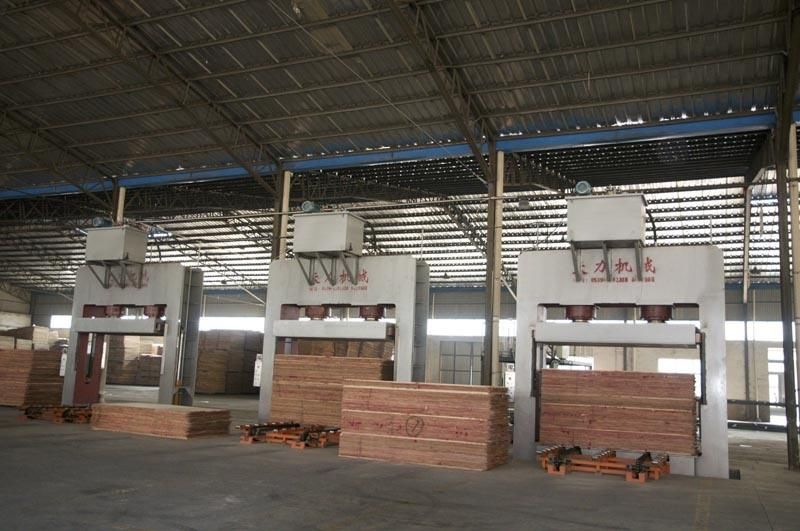

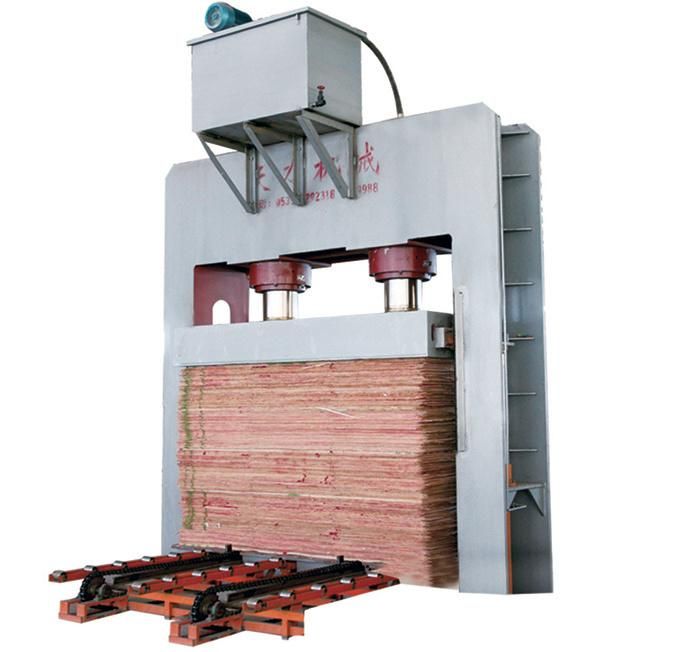

Hydraulic Cold Press Machine For PlywoodMain features:1. The main frame is welded by national standard steel plate,reasonable structure, force points are calculated strictly, high rigidity can endure high pressure, working stable no deformation.2. Adopt the best quality cylinders and imported hydraulic units ensure long working life.3. Easy to operate and maintenance.4. We can design and manufacture according to customer's production demand.Main technical specifications:

Machine model	BY815X8/4-IIz
Nominal pressure	5000KN(500TONS)
Boards in-feeding direction	Horizontal
Max.opening	1500mm
Dimension of working platform	1380mm x 2700mm
Dimeter of plunger cylinders	Ф360mm(Wuxi)
Number of plunger cylinders	2 Pcs
Diameter of side helpful cylinders	Ф60mm(Wuxi)
Number of side helpful cylinders	2Pcs
Allowed pressure of plunger cylinders	≤26Mpa
Stroke of plunger cylinders	1000mm
Position of plunger cylinders	Upside
Pressure of unit plate blank	12Kgf/cm2
Dimension of the board	2560mm x 1280mm
Allowed pressure	≤26Mpa
Machine net weight	19000Kgs
Control method	Automatic pumping station
Thickness of upper and lower crossbeams	900mm
Thickness of steel plate	40mm
Thickness of active crossbeam	400mm
Thickness of steel plate	20mm
Chain and roller transports device	YES
Frame structure	Composite frame for loading container
