• Model NO.：ZD515C
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：1.8kw
• Feeding Motor Power：0.75kw
• Air Pressure：>=4kg,Cm²
• Motor Power：0.37kw(0.18kw)
• Speed Adjustment：Frequency Control
• Application Range：Melamine,Veneer,PVC,etc
• Banding Tape Thickness：0.15-3mm
• Edge Width：10-50mm
• Shape of Workpiece：Straight&Curved Line
• Transport Package：Wooden Case
• Specification：1CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. ZD515C Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.8kw Feeding Motor Power 0.75kw Air Pressure >=4kg/Cm² Motor Power 0.37kw(0.18kw) Speed Adjustment Frequency Control Application Range Melamine,Veneer,PVC,etc Banding Tape Thickness 0.15-3mm Edge Width 10-50mm Shape of Workpiece Straight&Curved Line Transport Package Wooden Case Specification 1CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

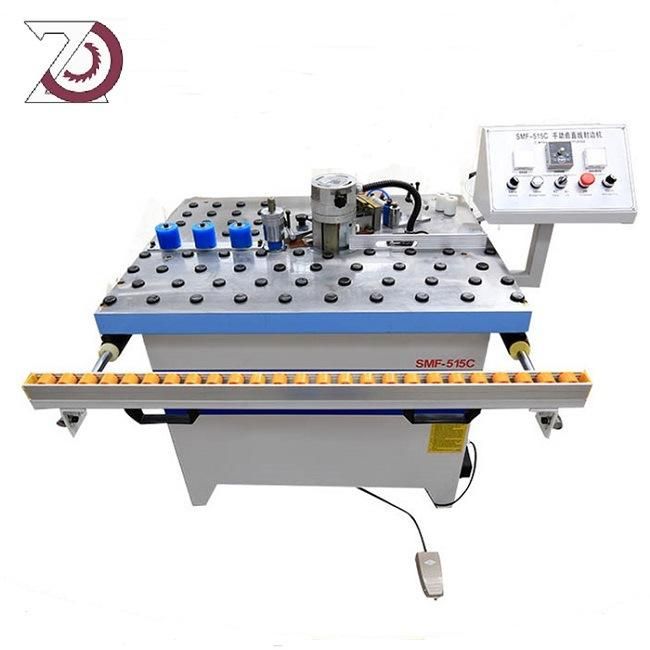

manual edge banding machine for mdf board





Technical Specification:


Type	SMF-515C
Heating power	1.8 KW
Motor Power	0.18 KW
Air pressure	>=4kg/cm2
Speed adjustment	Frequency control
Feeding speed	1-18 m/min
Application range	Melamine, Veneer. PVC, etc
Banding tape thickness	0.15-3 mm
Banding tape width	10-50 mm
Shape of work piece	Straight & curved line



Feature:

1. ISO&CE Certificate
2.It can make straight and curve edge banding
3. Unique lower-planted structure of glue dissolve, so it is stability and there is no leaking glue from box.
4. Using stainless thermostability bearing on glue box,so box has long time life
6.Double sides gluing ensures solid cement.
7.It suits for PVC Melamine ,veneer, plastic, bamboo,etc

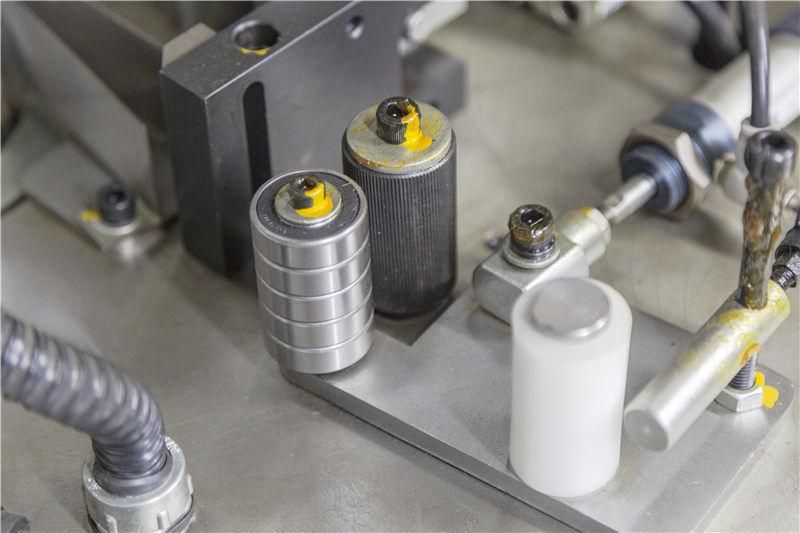

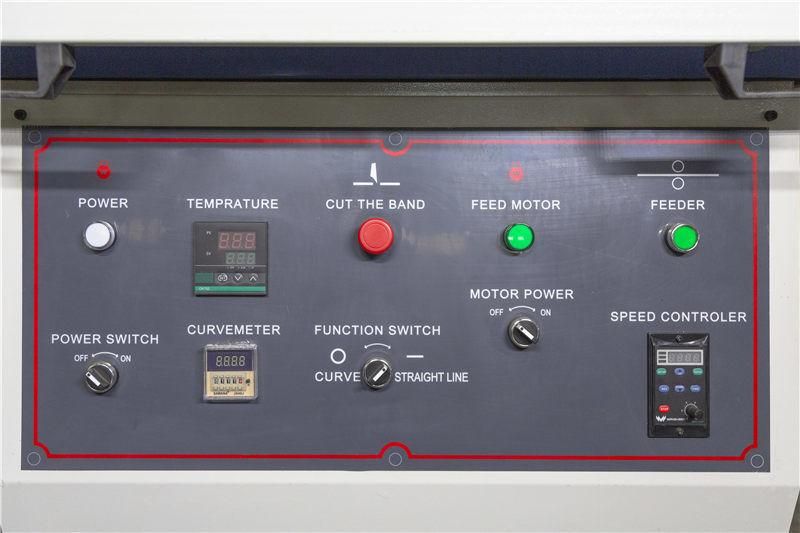

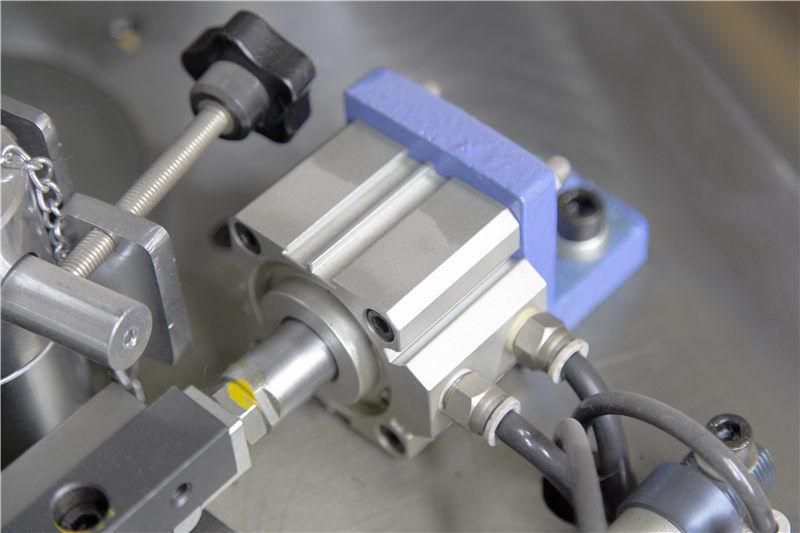

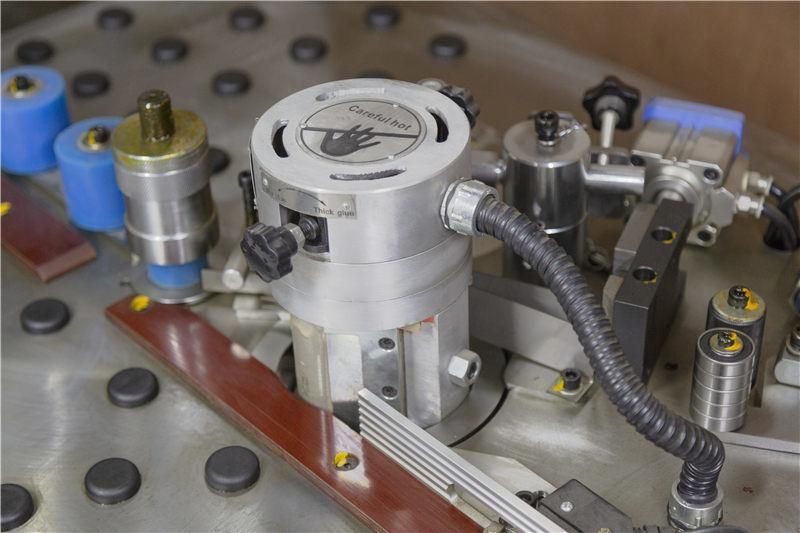

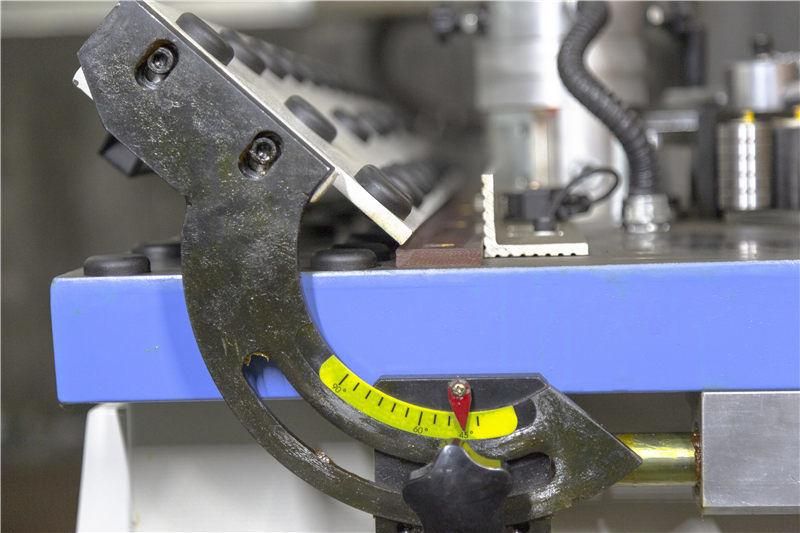

Product Details:
