Woodworking Automatic Edge Banding Machine with 5 Functions

Qingdao Zhongding Machinery Co., Ltd.
  • Warranty：1 Year

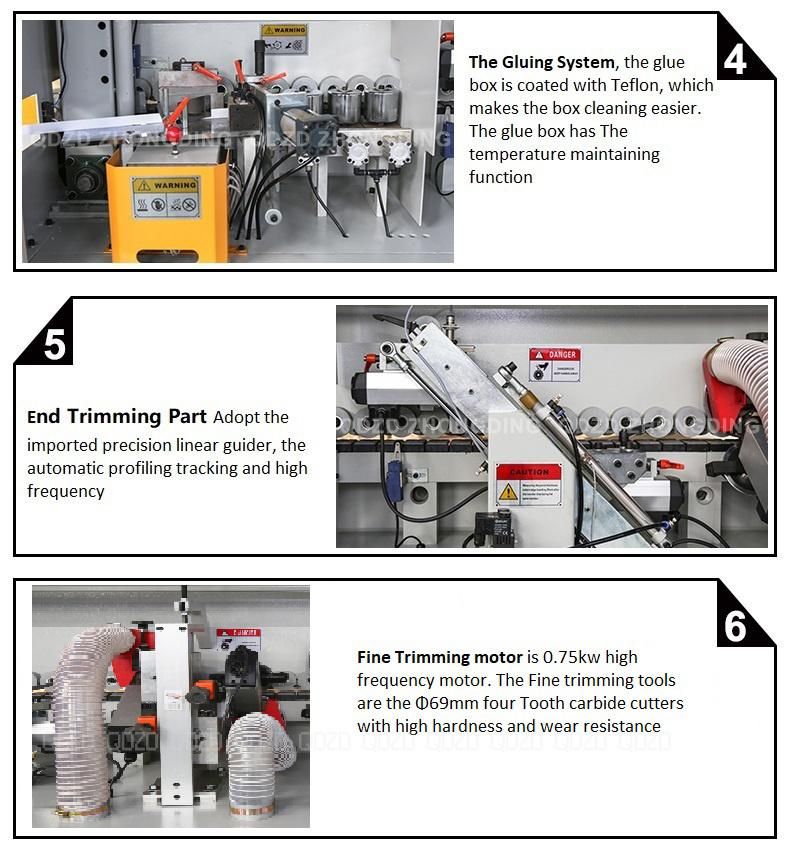

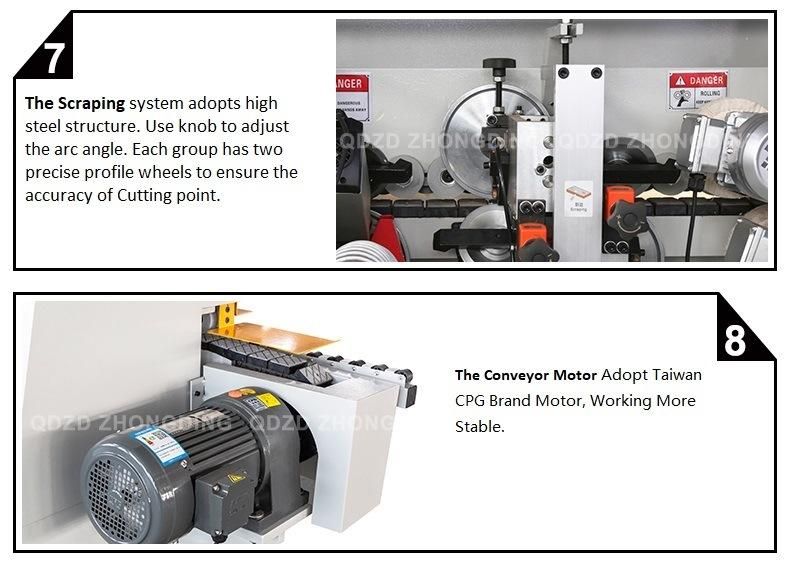

  • Function：Gluing, Edge Banding, End Trimming, Fine Trimming, Scraping, Buffing
  • Type：Straight Line
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：13m,min

Base Info

  • Model NO.：ZD500
  • Certification：CE, ISO
  • Panel Thinkness：10-60mm
  • Min.length panel：100mm
  • Min.width panel：50mm
  • Manufacturing Principles：Glue Tank Overhead
  • Customized：Customized
  • After-sales Service：1 Year
  • Transport Package：Plywood Case
  • Specification：3600*800*1500mm
  • Trademark：QDZD
  • Origin：Qingdao, China
  • HS Code：84659400
  • Production Capacity：200 Set, Month

Description

ModelZD500Banding tape thickness0.4-3mmBanding tape width10-60mmWorkpiece thickness10-60mmWorkpiece length>=100mmWorkpiece width>=50mmHeating power1.5kwFeeding motor power2.2kwGlue spreading motor power0.37kwEnd trimming motor power0.55kw*2Fine trimming motor power0.75kw*2Polishing motor power0.18kw*2Feeding speed13m/minAir pressure0.7MpaTotal power6.23kwOverall dimension3600*800*1500mmPacking size3670*850*1580mmNet weight1300kgsGross weight1470kgs



Woodworking Automatic Edge Banding Machine with 5 Functions


Woodworking Automatic Edge Banding Machine with 5 Functions

Woodworking Automatic Edge Banding Machine with 5 Functions


Woodworking Automatic Edge Banding Machine with 5 Functions


Woodworking Automatic Edge Banding Machine with 5 Functions

Woodworking Automatic Edge Banding Machine with 5 Functions
Woodworking Automatic Edge Banding Machine with 5 Functions



Available accessories:

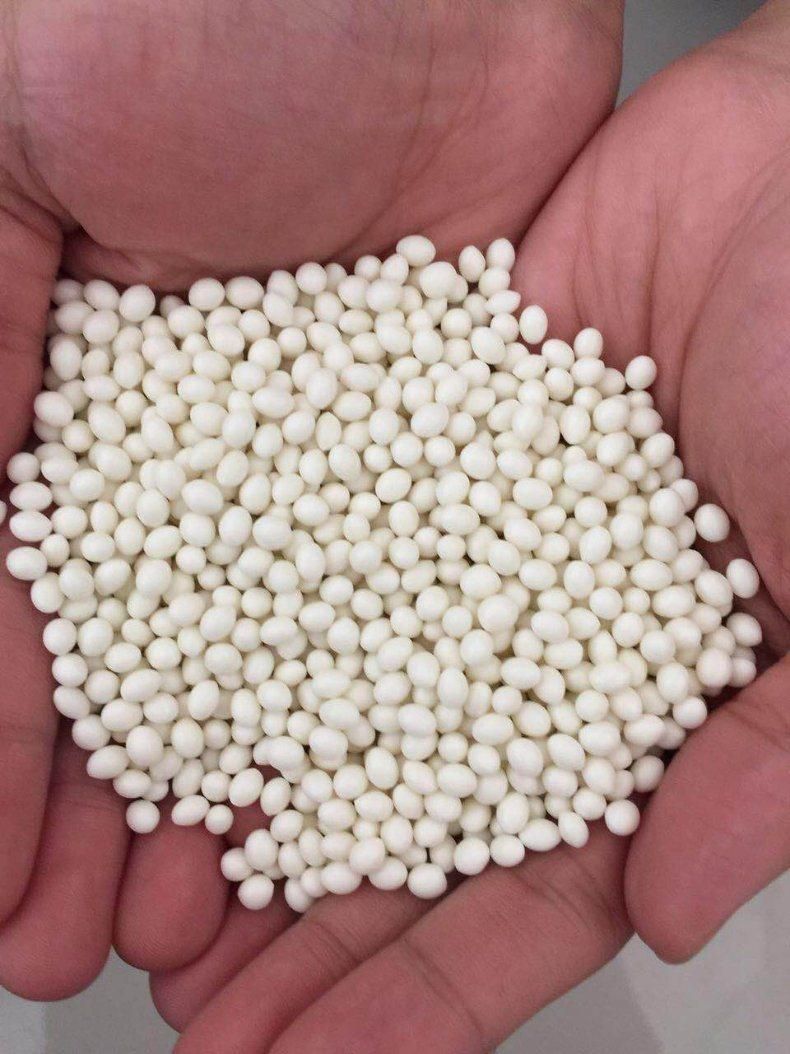

1. Hot melt glue

Woodworking Automatic Edge Banding Machine with 5 Functions

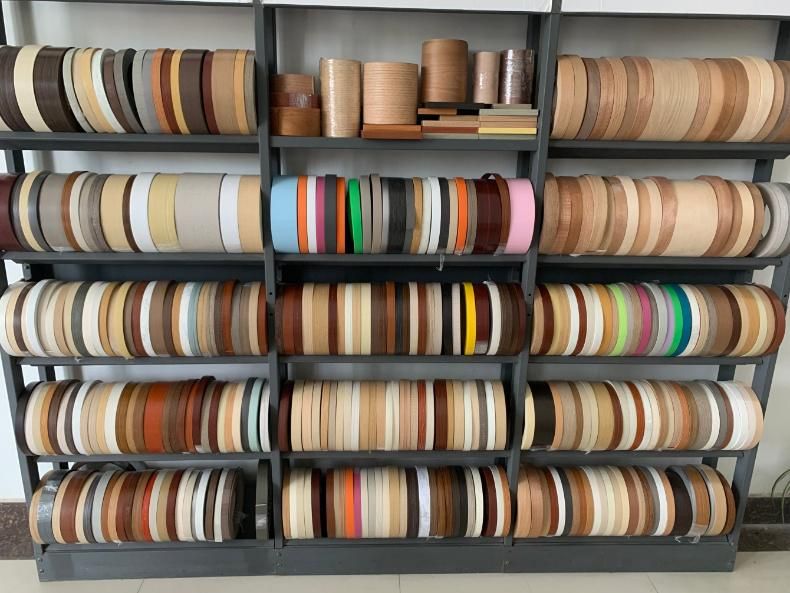

2. Band tapes

Woodworking Automatic Edge Banding Machine with 5 Functions
