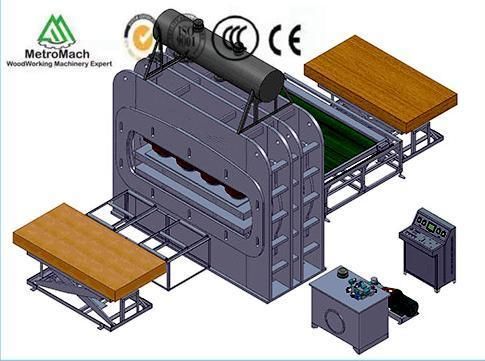

Short Cycle Lamination Hot Press Machine for Furniture, Floor
Linyi Sin San Lin Smart Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：TLY11418
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO, FDA
- Customized：Customized
- Transport Package：Standard Export Packing
- Specification：1200T- 2400T
- Trademark：METRO MACH
- Origin：China
- HS Code：8465990000
- Production Capacity：500sets,Year
Description
6x8ft, 6x9ft,
7x9ft etc
TECHNICAL PAREMETERS
| Model | TLY114×8/14-II |
| Nominal gross pressure | 14000Kn |
| Direction of feeding plate | HORIZONTAL |
| Layer Counting | 1 Layer |
| Distance between hot platens | 200mm |
| Numbers of hot platens | 2 pcs |
| Dimension of Hot Platens | 2600×1400×140mm(up) 2600×1400×100mm(down) |
| Numbers of Cylinder | 6 Pcs |
| Diameter of Cylinder | Φ340mm |
| Stroke of Cylinder | 200mm |
| Pressurization | ≤25Mpa |
| The Position of Cylinder | up |
| Empty Closing Time | About 2-3 s |
| Max Temperature | <210 |
| Numbers of Lift Cylinder | 4pcs |
| Diameter of Cylinder | Φ80mm, Φ30 |
| Stroke of Cylinder | 200mm |
| High Pressure Pump Flowing | About 89L/min |
| Allowed Pressure | ≤25Mpa |
| Power | 37Kw |
| Pressure of Unit Plate Blank | 47Kgf/cm2 |
| Control Method | Automatic pump station |
| Frame steel plate thickness | 60mm |
| Total weight | 37000kgs |

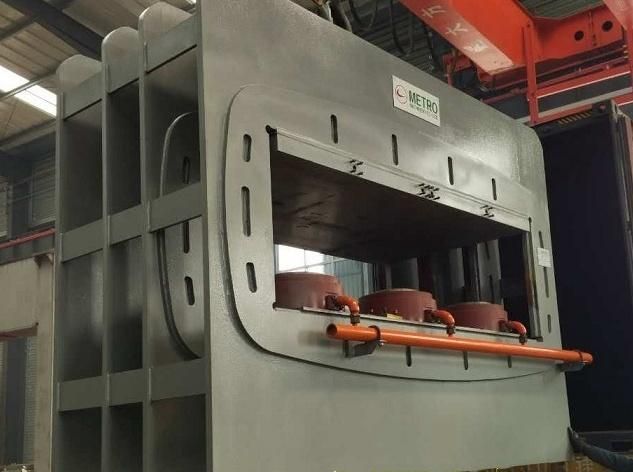

PRODUCT SHOW
