1836 Multi-Heads Wooden Door Design CNC Router Machine
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：One Head with Six Spindles
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, FDA
Base Info
- Model NO.：ELECNC-1836
- Customized：Customized
- Condition：New
- Color：Customized
- Product Name：Multi-Heads CNC Router
- Power：4.5kw
- Inverter：3.7kw Inverter
- Table：Thicker T-Slot Table
- Gantry：Cast Steel Gantry Moving Type
- Voltage：380V,220V, 3 Phase
- Software：Type3 and Artcam
- Orbit：Taiwan Imported Linear Square Guide
- Spindle Speed：China Top Brand 3kw Air Cooling Spindle
- Motor：Big Strength Stepper Motor

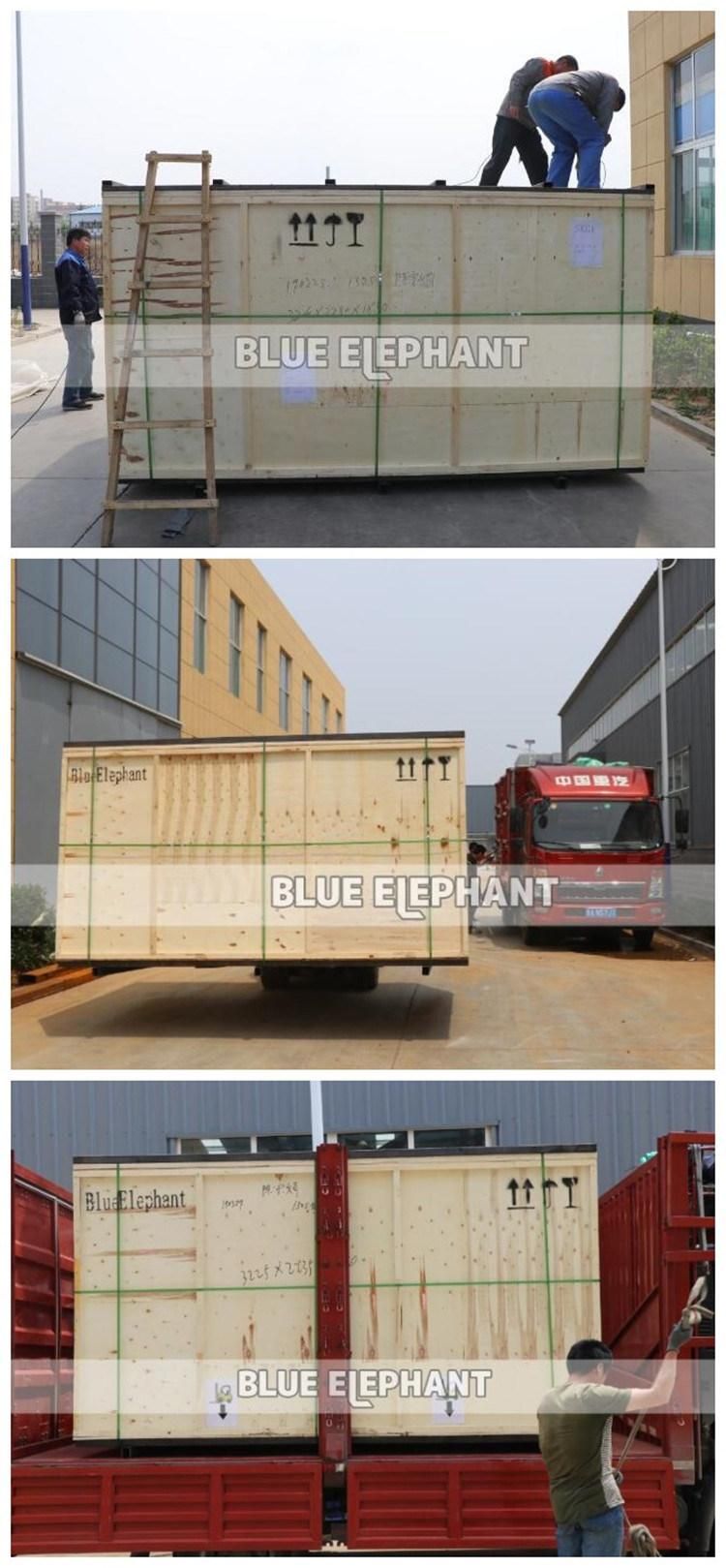

- Transport Package：Standard Export Wooden Case
- Specification：CE, FDA, ISO, SGS
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
X,Y,Z Working Area
1800x3600x200mm
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
X,Y,Z Repositioning Accuracy
±0.03mm
Table Surface
Vacuum and T-slot working table
Frame
Welded Structure
X, Y Structure
helical rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z Structure
Hiwin/PMI Rail Linear Bearings and Ball Screw
Spindle Power
6kw Italy HSD air cooling spindle
inverter
7.5kw Taiwan DELTA inverter
Spindle Speed
0-18000RPM
Drive Motors
YAKO or Lead shine
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
Command Language
G Code
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface
USB
Flash Memory
128M(U Disk)
Collet
ER25
X,Y Resolution
<0.01mm
Software Compatibility
Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
Application

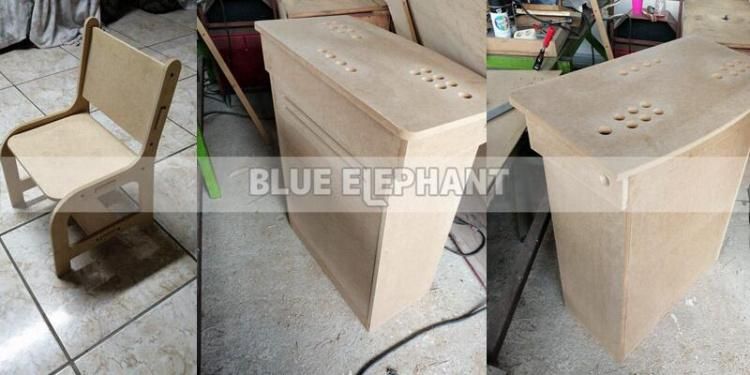

Woodworking: three-dimensional wave board processing, cabinet doors, solid wood doors, woodencraft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels,mahjong table, computer desk and furniture products, auxiliary processing .
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of
materials advertising the production of decorative products.
Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble,sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
After sale-service
1, Within 7 days since your local customs clearance: if the cnc machine's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems,
we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the cnc router machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Our advantage
·As a manufacturer, we have 10 years factory experience . We can devoted to the research and manufacture of many different models.
·Factory outlet can provide the lowest price and professional after-sales service.
·Our products are very popular in USA, Russia, Middle East, South East Asia and so on.
Features of multi spindle woodworking cnc router:
·China water ooling spindle (very economic,Italy HSD air colling spindle is also optional)
·Popular DSP controller, it's with USB interface, no need connecting to PC,both easy operation and convenient.
·Taiwan TBI ballscrew transmission,ensuring the stability and high precision.
·HIWIN/PMI linear guide, imported from Taiwan. It's high precision, long life and top pressure-tolerant performance.
·Helical rack gears transmission,ensuring stable transmission,low noise,high precision,strong power,high efficiency and long lifetime.
·Double motors for Y axis,providing more power.
·welded steel structure and 15mm thickness steel for main body----Strong type!
Advantage
Why are our products so welcome among customers all over the world?
1.Our company has more than 10 years' experience in manufacturing cutting and engraving cnc router machine.
2.Our machine has achieved CE,FDA,CIQ,which ensures the quality and its longer life time makes customers feel at ease to use it.
3. Reinforced and thickened machine body makes transportation absolutely safer.
