• Model NO.：450MX
• Warranty：1 Year
• Customized：Non-Customized
• Condition：New
• Color：Yellow
• Power：55kw
• Capacity：800-1000kg,Hour
• Net Weight：2800kg
• Diameter of Ring Die：450mm
• Ring Die Type：Vertical Ring Die
• Advantage：Automatic Lubricant Pump
• Keyword 1：Ring Die Wood Pellet Mill
• Keyword 2：Ring Die Wood Pellet Machine
• Keyword 3：Ring Die Wood Pellet Making Machine
• Keyword 4：Ring Die Pelletizer Machine
• Transport Package：Standard Fumigation Free Box
• Specification：1.4*0.75*1.55 m
• Trademark：AGII
• Origin：Henan, China
• HS Code：8474802000
• Production Capacity：200 Sets Per Month

ModelInner Dia of
Ring diePower
(Kw)Capacity
(ton/hour)Dimension
(m)Weight
(Kg)450 MX450mm55 kw0.8-1.0T1.4*0.75*1.552800550 MX550mm90 kw1.5-2T1.9*0.95*1.84500800 MX800mm132 kw2-3T2.5*1.35*2.170001000 MX1000mm160 kw3-4T2.65*1.45*2.18500


FEATURE of vertical ring die biomass pellet machine:

Gearbox:

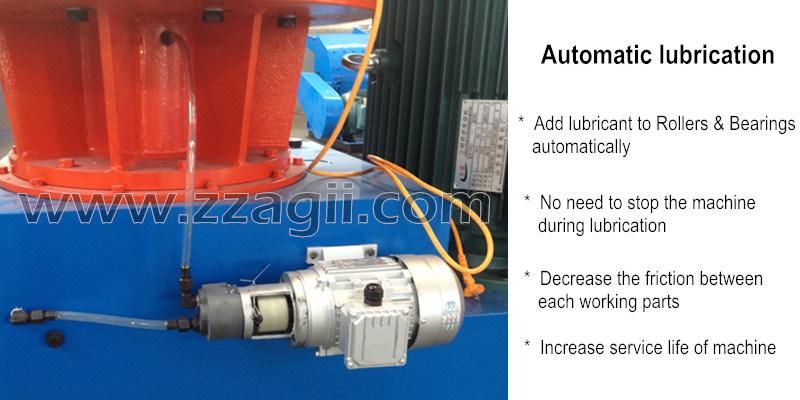

Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period

Vertical motor:
Mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working

Blower system:
Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam

Working parts:
Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density,

The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.




RAW MATERIAL for making biomass pellets:

Widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc..


FINAL PELLETS:

Wood pellets are the most common type of pellet fuel and are generally made from compacted sawdust[3] and related industrial wastes from the milling of lumber, manufacture of wood products and furniture, and construction.[citation needed] Other industrial waste sources include empty fruit bunches, palm kernel shells, coconut shells, and tree tops and branches discarded during logging operations




PACKING & DELIVERY:

The normal package is wooden box (Size: L*W*H). The wooden box will be fumigated for shipment to European countries. we can use PE film to prevent moisture according to customers special request.

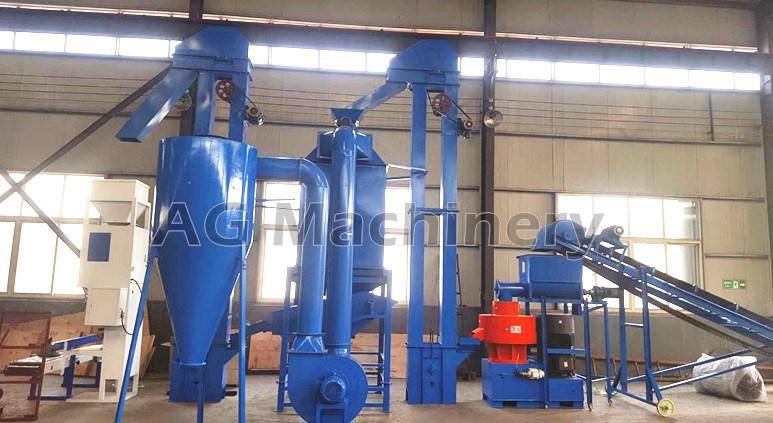

Biomass Wood Pelletizing Production Plant:

1) wood chipping machine
2) wood crushing machine( wood crusher & hammer mill)
3) sawdust drying system
4) wood pellet mill machine
5) pellet cooler & screener
6) Packaging machine
