Mars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood Cutting

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Body Structure:Thick-Walled Steel Tube Welded
  • Control System:Delta System

Base Info

  • Model NO.:HPL330HG
  • Drive System:Yaskawa Servo Motor
  • Converter:Zoncn, Fuling Brand
  • Net Weight:5800kg
  • Working Voltage:380V,50Hz
  • Transport Package:Wrapped in Layers of Wrapping Film and Ponchos
  • Specification:6500*5500*2000mm
  • Trademark:Mars
  • Origin:China
  • HS Code:8465910000
  • Production Capacity:3000 Sets,Year

Description

Basic Info.

Model NO. HPL330HG Drive System Yaskawa Servo Motor Converter Zoncn/ Fuling Brand Net Weight 5800kg Working Voltage 380V/50Hz Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 6500*5500*2000mm Trademark Mars Origin China HS Code 8465910000 Production Capacity 3000 Sets/Year

Product Description

Mars HPL330HG TAIWAN electronic automatic cnc panel saw machine for wood cuttingKeywords:15 years experience of production
                      ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                      Three Brand: Mars, Golden Eagle,Borio

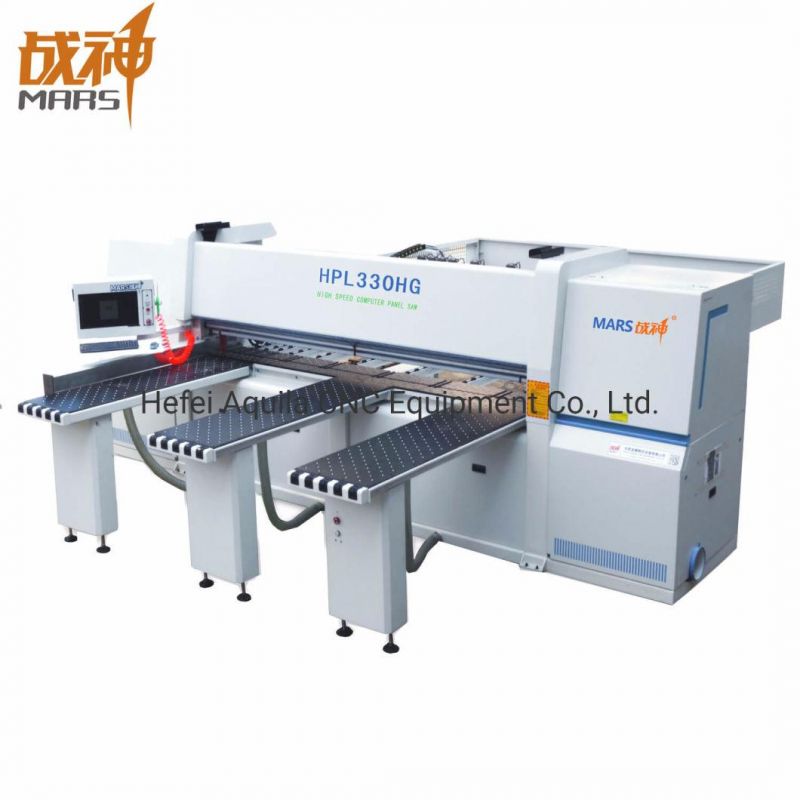

Mars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood Cutting


Mars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood Cutting

Mars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood CuttingMars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood CuttingMars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood CuttingDescription:

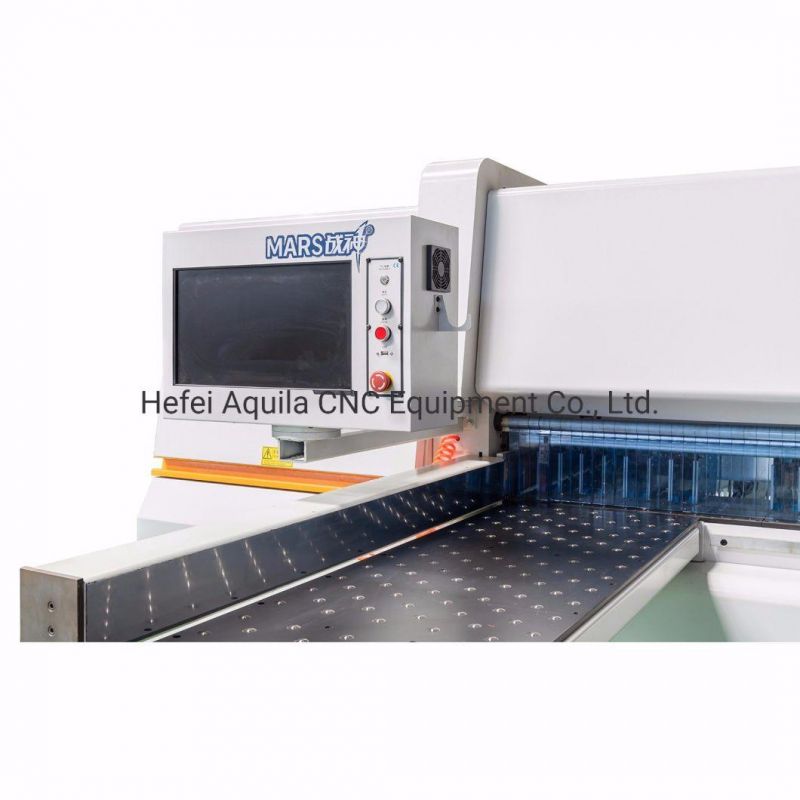

The new machine is a fully automatic touch-screen control. Workers input the data to be cut on the touch-screen, start the machine, and the machine runs automatically. It is a CNC cutting machine that precisely cuts the plates to be processed.

Functions:
The main function of this machine is cutting.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Mars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood Cutting

Application Scope:
It is suitable for cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.


Parameters:
Max.Cutting Length3280mm
Max.Cutting Width3280mm
Max.Cutting Thickness100mm(Intelligent lifting)
Large Saw Blade400 x 4.4 x 75 x 72teeth/1
Slot Saw Blade160 x 4.4 / 5.4 x 45 x 24teeth/1
Saw Carriage Forward Speed5-100m/min
Saw Carriage Backward Speed100m/min
Manipulator Forward Speed0-100m/min
Manipulator Backward Speed100m/min
Main Saw Motor18.5kw
Air Floating Workbenth3pcs
Scoring Saw Motor2.2kw
Worktable Height920mm
Total Air Consumption150L/min
Color LCDDelta 10.4 inch
Minimum Dust Extraction Speed26m/sec
Negative Pressure1200pa
Exhaust Air Volume4400m3/h
Diameter of Dust Extraction Pipe100×2pcs
Number of manipulators8pcs

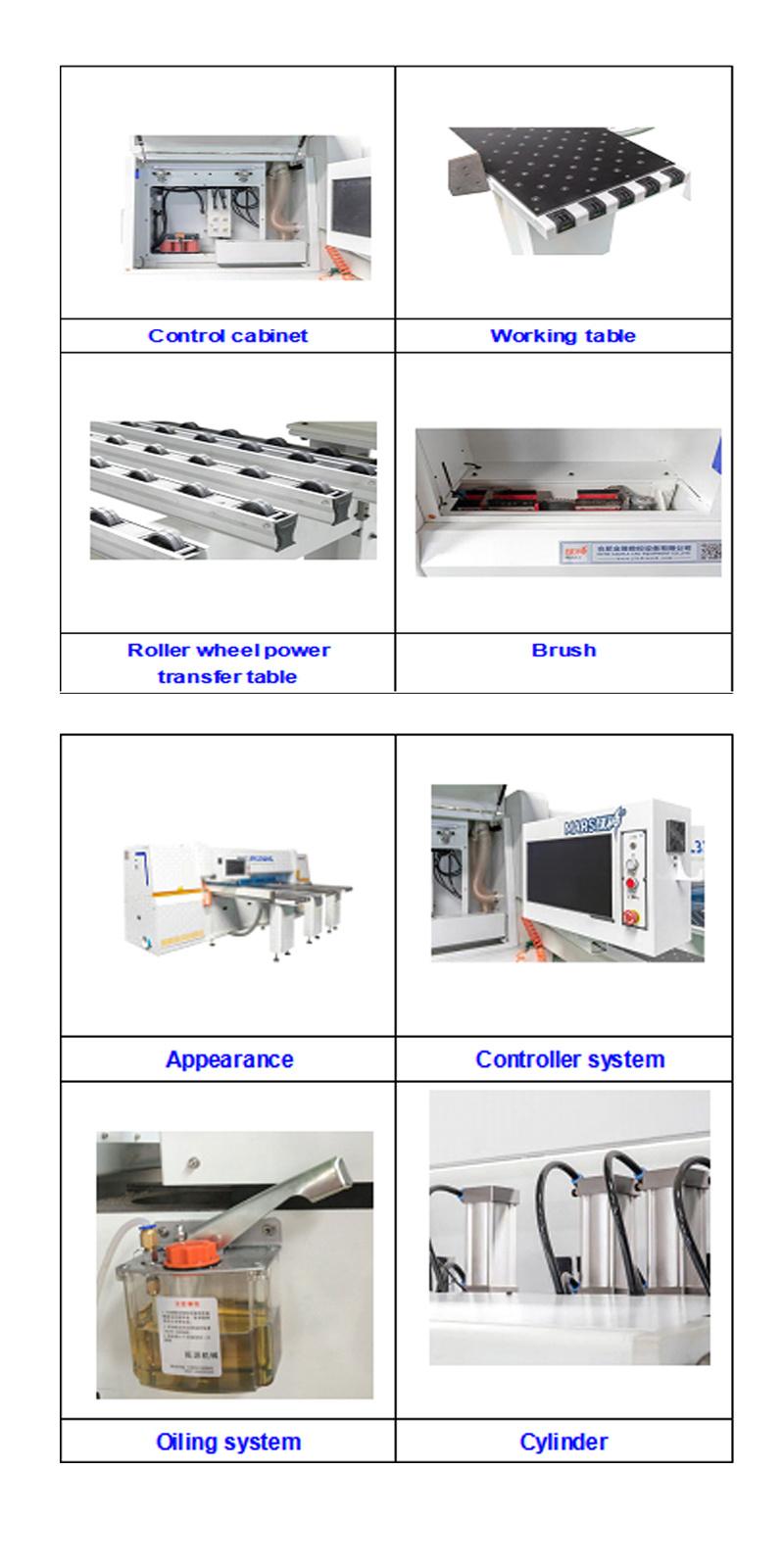

Accessories:
Mars HPL330hg Taiwan Electronic Automatic CNC Panel Saw Machine for Wood Cutting


Performance Features:
1.Multi -layer sheet can be superimposed for one-time cutting to improve processing efficiency.
2.Independent main and auxiliary saw blade matching,smooth cutting.
3.Pneumatic mechanical clamping device,automatic feeding.
4.Dockable intelligent automation whole plant production line.

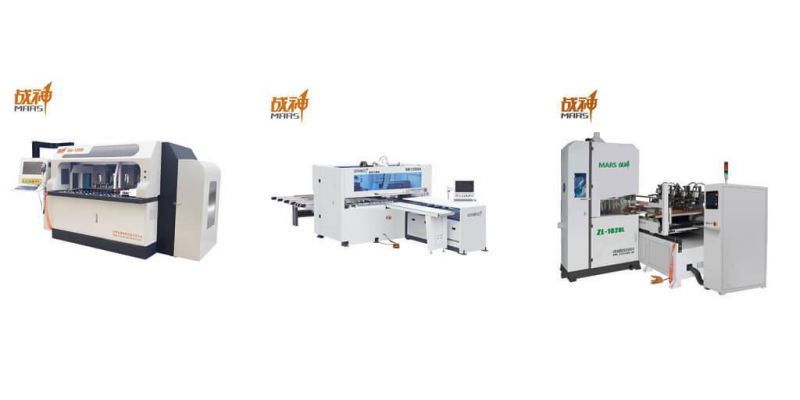

Similar products:
