• Model NO.：ZS-2512R
• Origin：China
• HS Code：8458110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. ZS-2512R Origin China HS Code 8458110090 Production Capacity 300sets/Month

Product Description

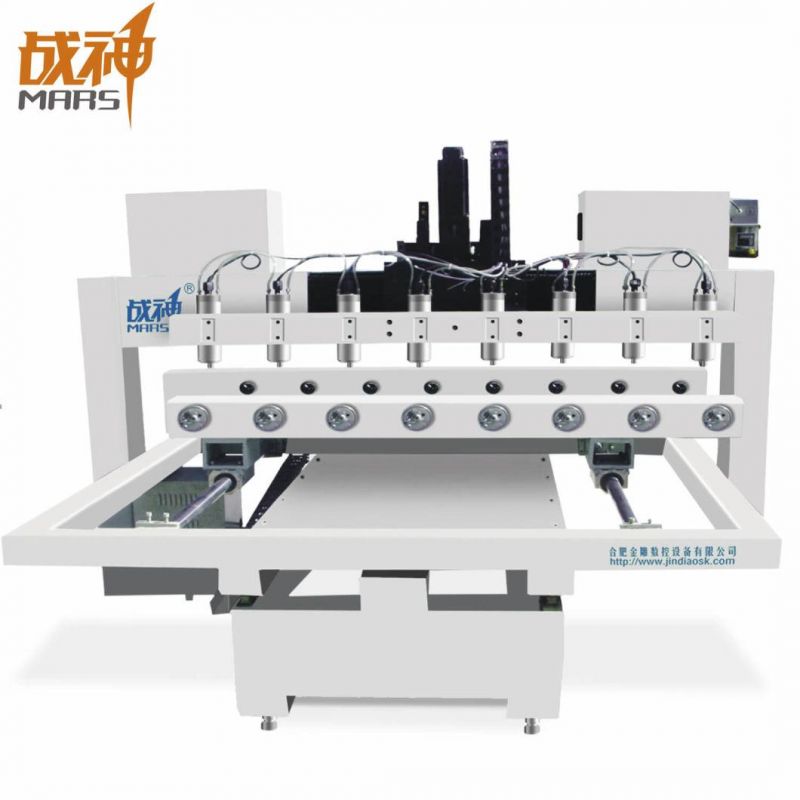

Woodworking CNC Router Machine/CNC Router Carving Machine

Keywords: 15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                 Three Brands: Mars, Golden Eagle, Boiro
                 Technicist who go abroad to offer after-sale service



Technical Parameters:


Model	ZS-2512R Four Axis Rotary Wood CNC Router
Working Stoke	Ø250X1200mm
Feeding Height	160mm-250mm
Table Structure	T-slot
Body Structure	Thick steel tube welded, w/ tempering
Spindle Power	6*2.2KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Control System	RichAuto-A11 DSP
Drive System	SG servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Max Travelling Speed	20m/min
Max Processing Speed	10m/min
Dictate Format	G code/ HPGL
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	2500KG
Machine Size	2700*2000*2100mm

Performance Features:

1. Selection of imported ball screw, high precision dividing head, big clamping diameter, can be adapted to different sizes of cylindrical material.
2. National patent box-type column.
3. High-precision drive systems.
4. Using a unique intelligent prediction algorithm, gives full play to drive potential to achieve high speed processing, linear and curve synchronous,
the curve is more smooth.
5. With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.;
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..
  Application:

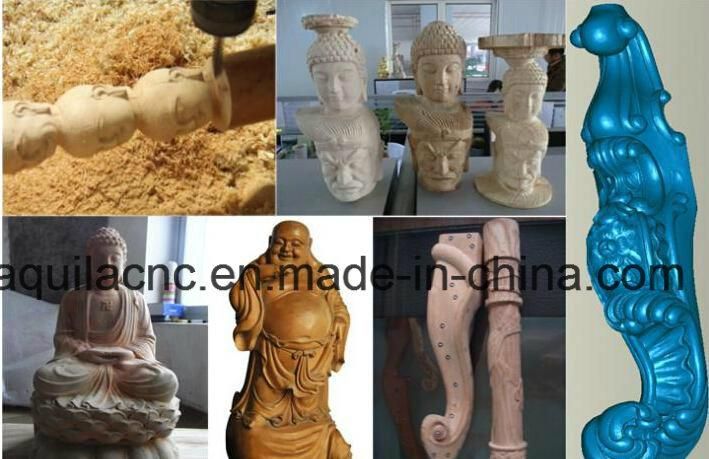

Can be widely used for the 3D processing of body sculpture, statues, artware, jewelry, furniture, stone columns, etc..

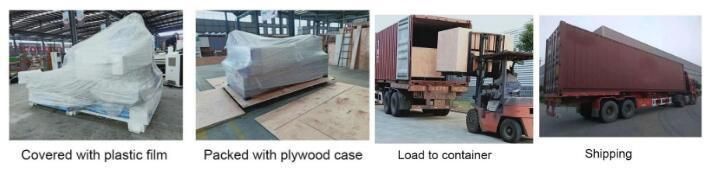

Package and Shipment:

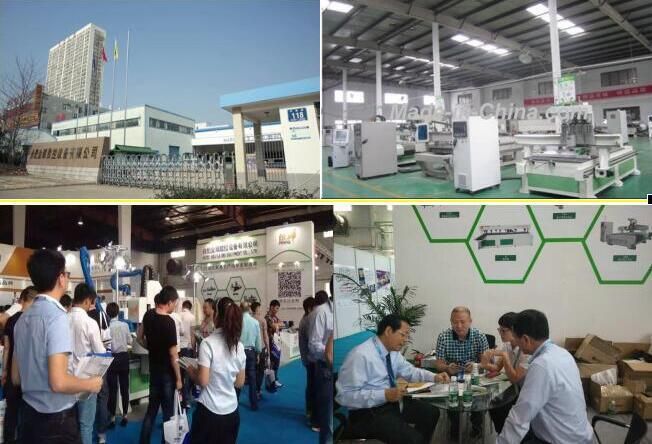

Company Profile:

Our Company ( With 15 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.



Certificate:



FAQ:

Q1:Could you pls use our own brand on your machine ?
A1:Yes,we can do it according to your request.
Q1:Could you modified and production machine according to our designer ?
A2:Of course yes,but order quantity each model more than 6 sets.
Q3:Could you supply technical guidance ?
A3: Yes.You can come to our factory study in China and we also can dispatch our engineer go to your country and assist you on installation and operation.
