• Model NO.：ZD214*8,12(1)H
• Work Mode：Period
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO
• Size(Feet)：4*8
• Dimension of Hot Platens：1400*2600mm
• Nominal Pressure：1.0mm
• Number of Layers：1
• Max Service Opening：80-120mm
• Transport Package：Wooden Case
• Specification：10CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. ZD214*8/12(1)H Work Mode Period Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO Size(Feet) 4*8 Dimension of Hot Platens 1400*2600mm Nominal Pressure 1.0mm Number of Layers 1 Max Service Opening 80-120mm Transport Package Wooden Case Specification 10CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

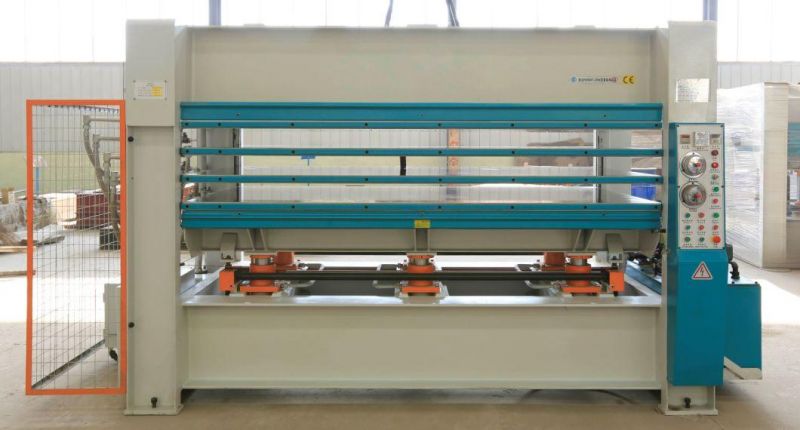

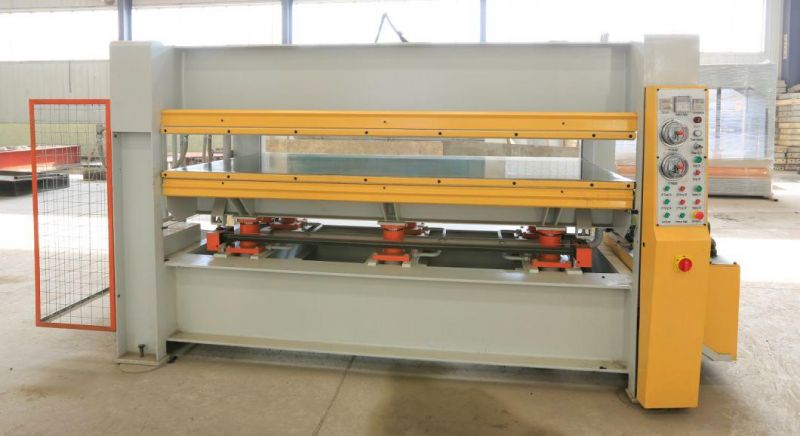

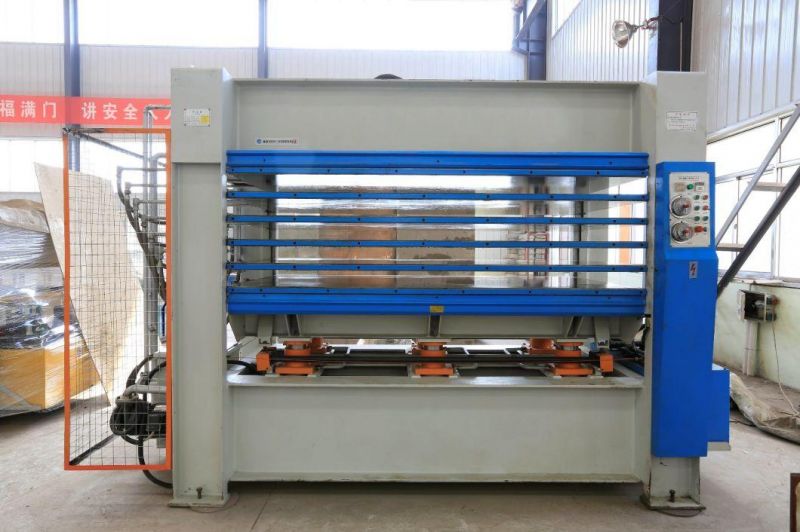

_{High quality Woodworking Machinery Hydraulic Hot Press Machine}Technical Specification:


Total pressure	100/120/160/200ton
Feeding direction	Transversal
Dimension of hot platen	2500x1300x42mm
Number of layers	optional
Number of platens	Optional
Stroke	80-120mm

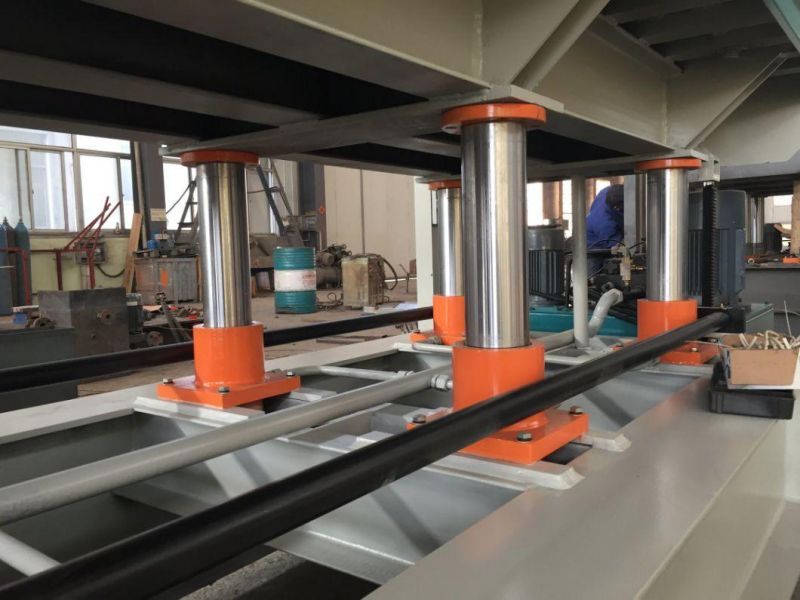

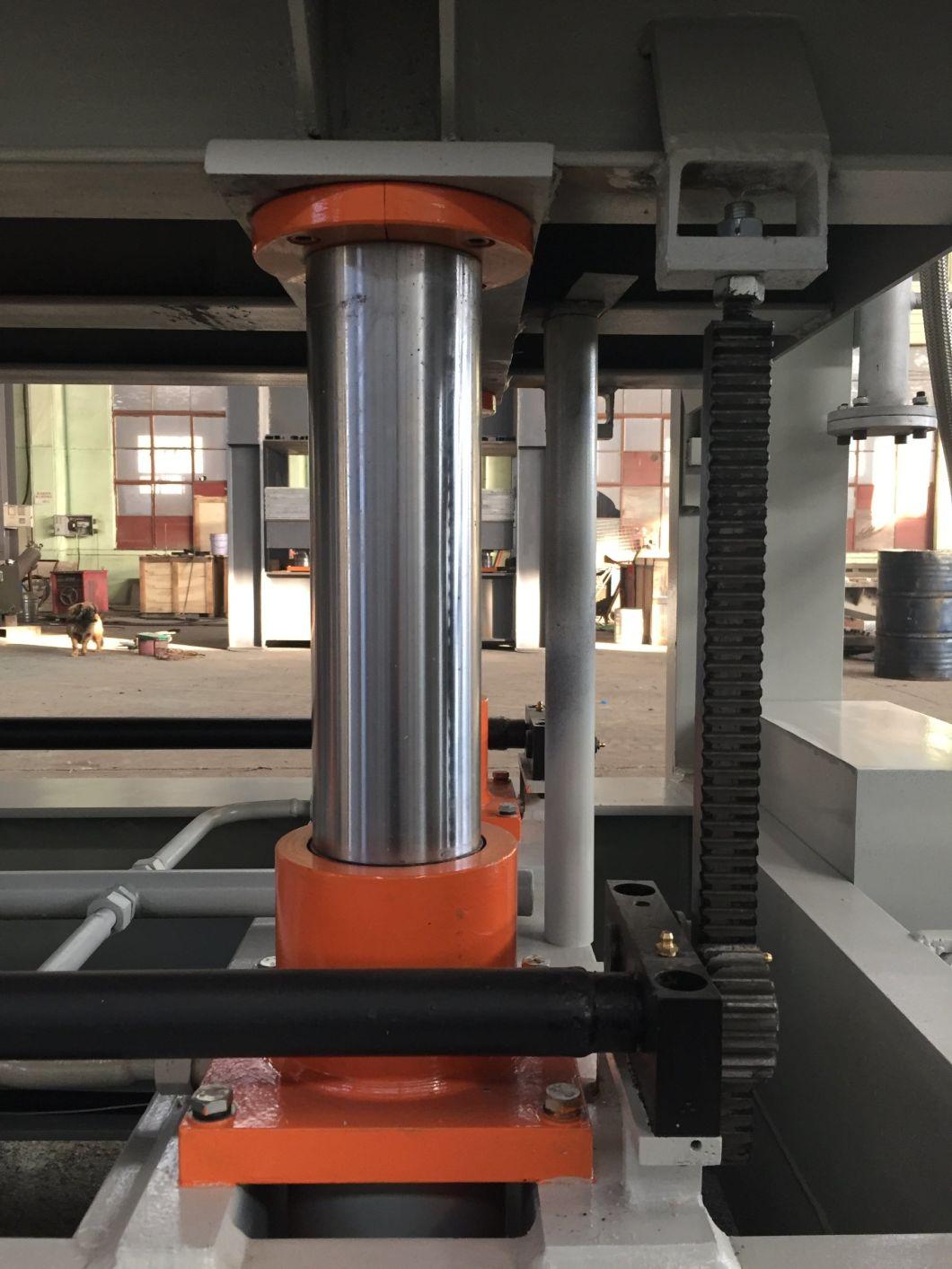

Diameter & stroke of oil cylinder	100mm x 200mm
Number of cylinders	optional
Heating medium	thermal oil
Working pressure	optional
Total power	9.2Kw
Thermal oil furnace power	optional

Feature:

1. All 3 pumps we use Vane Pumps. The others use Gear Pumps. Vane pumps with lower noise than gear pumps. So the working life is longer than gear pumps.
2. The surface roughness of our platen is 0.8μm. The better among the others is just 1.6μm. This will keep the heating averagely. This is very important.
3. Our machine base is type H steel. The others use welded steel plate. Type H steel is much stronger than the welded steel plate. Welded steel plate will be bent easily.

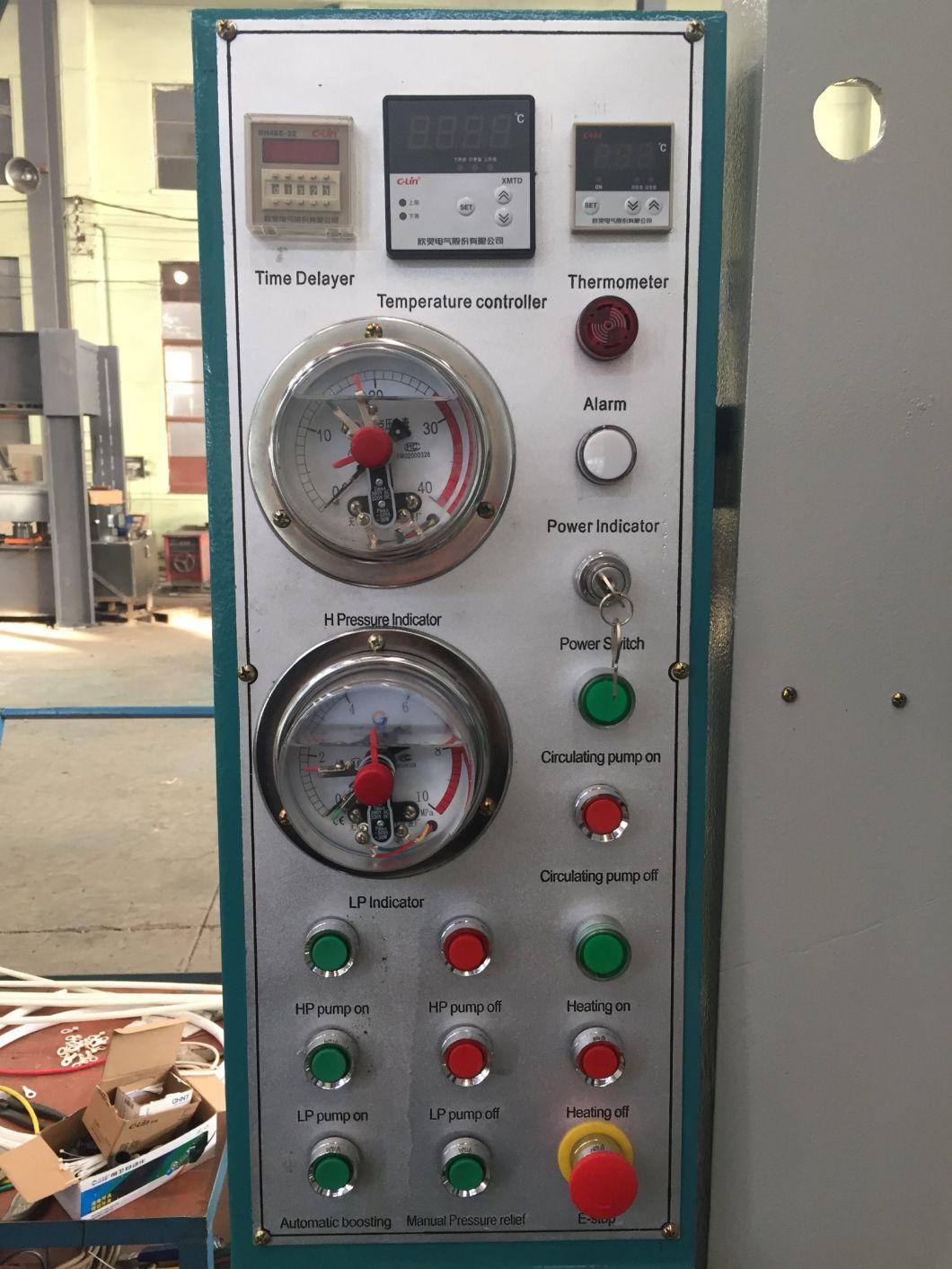

Product Details:

Certificate:





Our company:

      Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
