• Model NO.：JCW1325R
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Name：Multi Head 5 Axis CNC Machine
• Application：Furniture Sofa Legs, Sculptures...
• Spindle：Air or Water Cooling Spindle
• Motor：Japan Yaskawa Servo Motor and Driver
• Software：Powermill with Post Processor
• System：5 Axis Taiwan Syntec with Handwheel
• Working Size of Each Rotary Axis：1200mm Length, 300mm Diameter (Can Be Customized)
• Rotary Axis Quantity：8 (Option:1, 4, 6, 10, 12)
• CNC Router Type：5 Axis (Option: 4 Axis)
• Option：3D Scanner
• Transport Package：Wood Case and Steel Support
• Specification：4.6L x 2.26W x 2.3H meters
• Trademark：CHAODA
• Origin：Linyi
• HS Code：8464909000
• Production Capacity：1000 Set , Month

Basic Info.

Model NO. JCW1325R Customized Customized Condition New Color Customized Machine Name Multi Head 5 Axis CNC Machine Application Furniture Sofa Legs, Sculptures... Spindle Air or Water Cooling Spindle Motor Japan Yaskawa Servo Motor and Driver Software Powermill with Post Processor System 5 Axis Taiwan Syntec with Handwheel Working Size of Each Rotary Axis 1200mm Length, 300mm Diameter (Can Be Customized) Rotary Axis Quantity 8 (Option:1, 4, 6, 10, 12) CNC Router Type 5 Axis (Option: 4 Axis) Option 3D Scanner Transport Package Wood Case and Steel Support Specification 4.6L x 2.26W x 2.3H meters Trademark CHAODA Origin Linyi HS Code 8464909000 Production Capacity 1000 Set / Month

Product Description

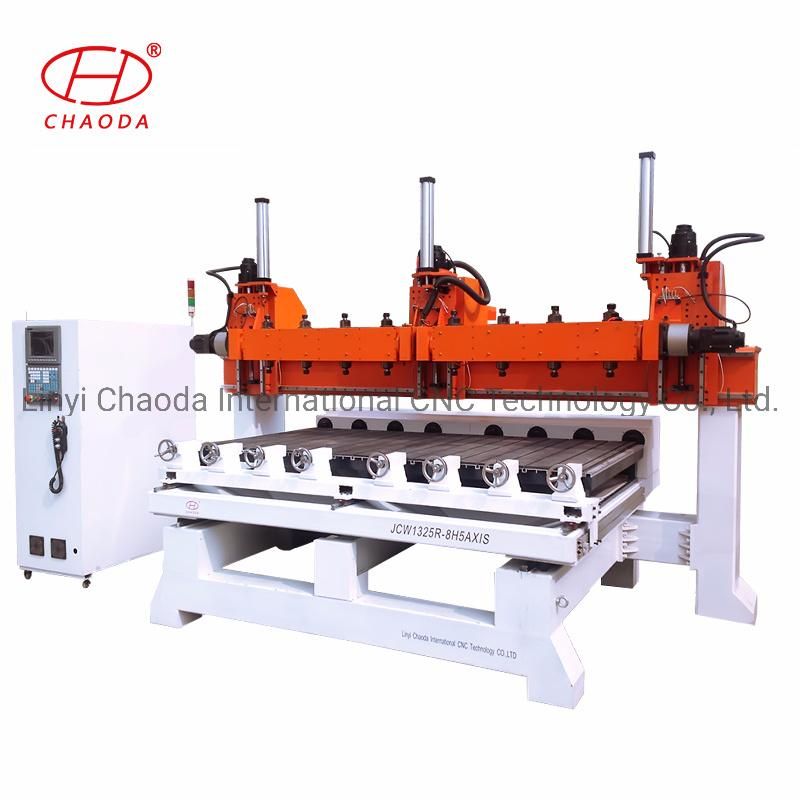

CNC 5 Axis/ 4 Axis 1 2 3 4 5 6 8 10 head, 360 degree turning lathe for carving wood bars into furniture legs, poles, statues

Specifications

Model	JCW1325R--8H
Working size	1200mm ( L) x 300mm (W) x 8 rotaries
Spindle power	10*3.5KW Air Cooled (option: Water Cooled)
Spindle rotating	0-18000rpm
Max moving speed	20m/min
Reposition precision	0.03mm
Control system	5 Axis Syntec (option: Ncstudio)
Motor	Servo system





Application

All kinds of wood, hardwood, solidwood, plywood, foam, EPS, polystyrene, polyurethane, styrofoam, polyfoam, composite board, PVC, plastic, acrylic, Organic glass, and other materials.

1) Decoration industry

2) Advertising industry

3) Mould industry

4) Construction industry

5) Craft industry

6) Furniture industry

7) Sculpture, statue, figure industry

8) Model industry

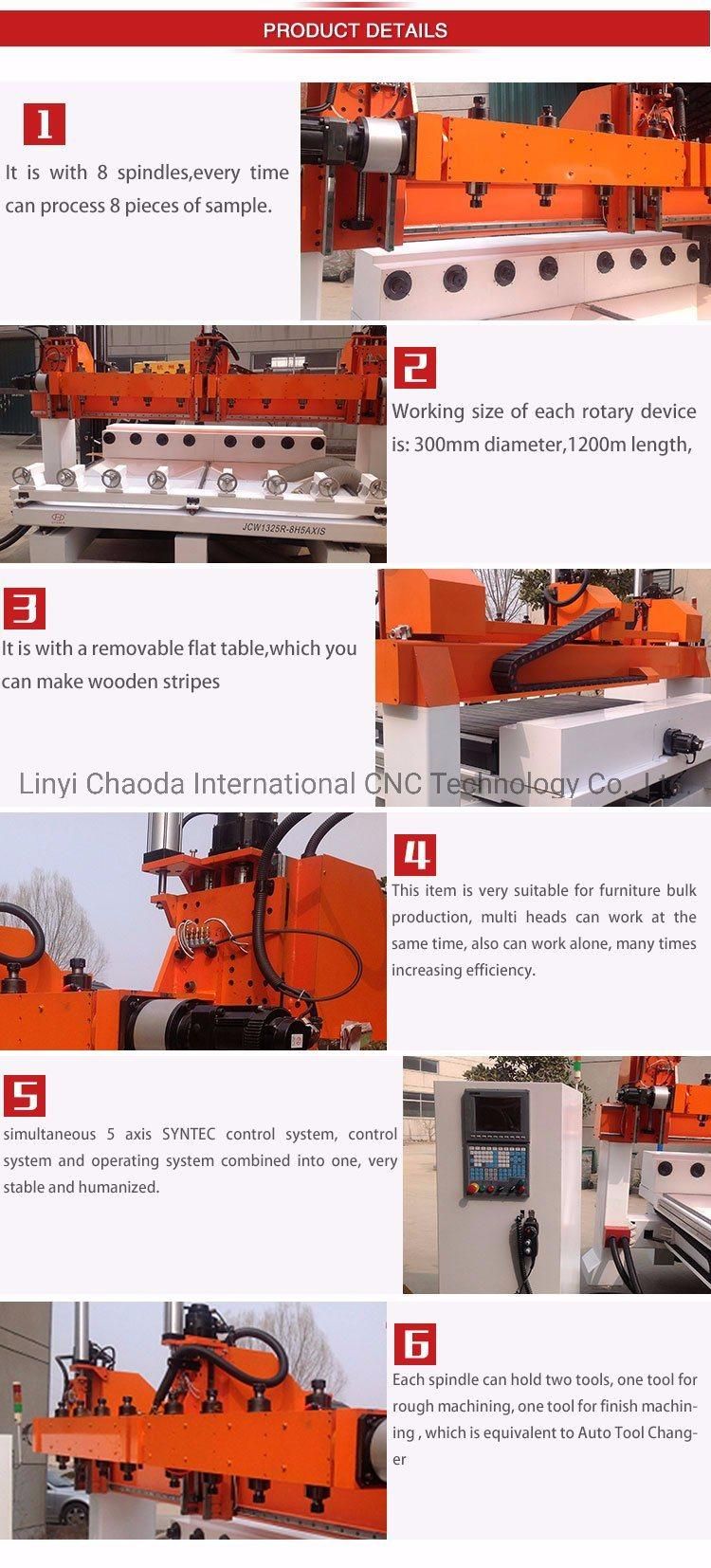

Main Features

1) This 5 axis cnc router machine with 8 rotary axis is with removable table, so, when you cut and engrave the flat /      plane, just need to put on this table; when you do the column / round / cylinder, just need to take down the     moveable table.

2) Each spindle has two heads with two tools, which is equivalent to Auto Tool Changer

3) Multi spindles can work at the same time,also can work alone, many times increasing inefficiency. can also

    control the machine heads independently, can use only one head to process and make increasing the working

     area.

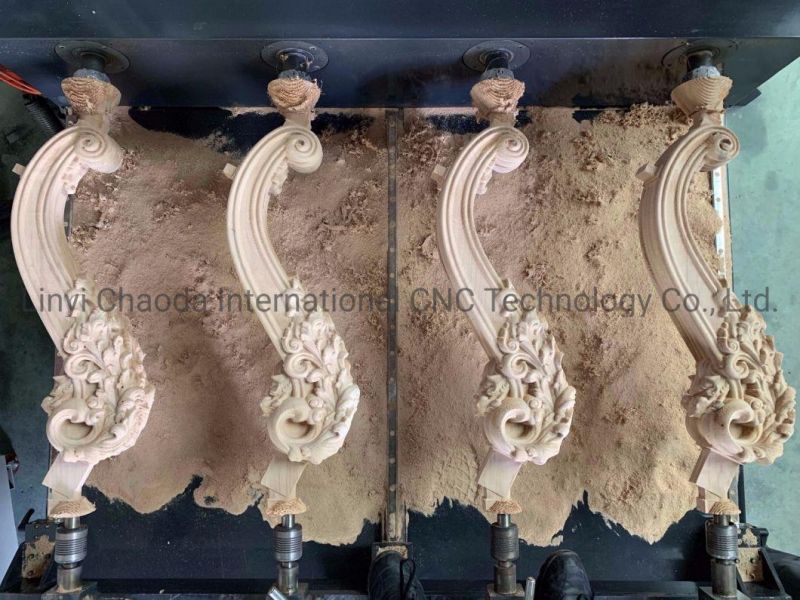

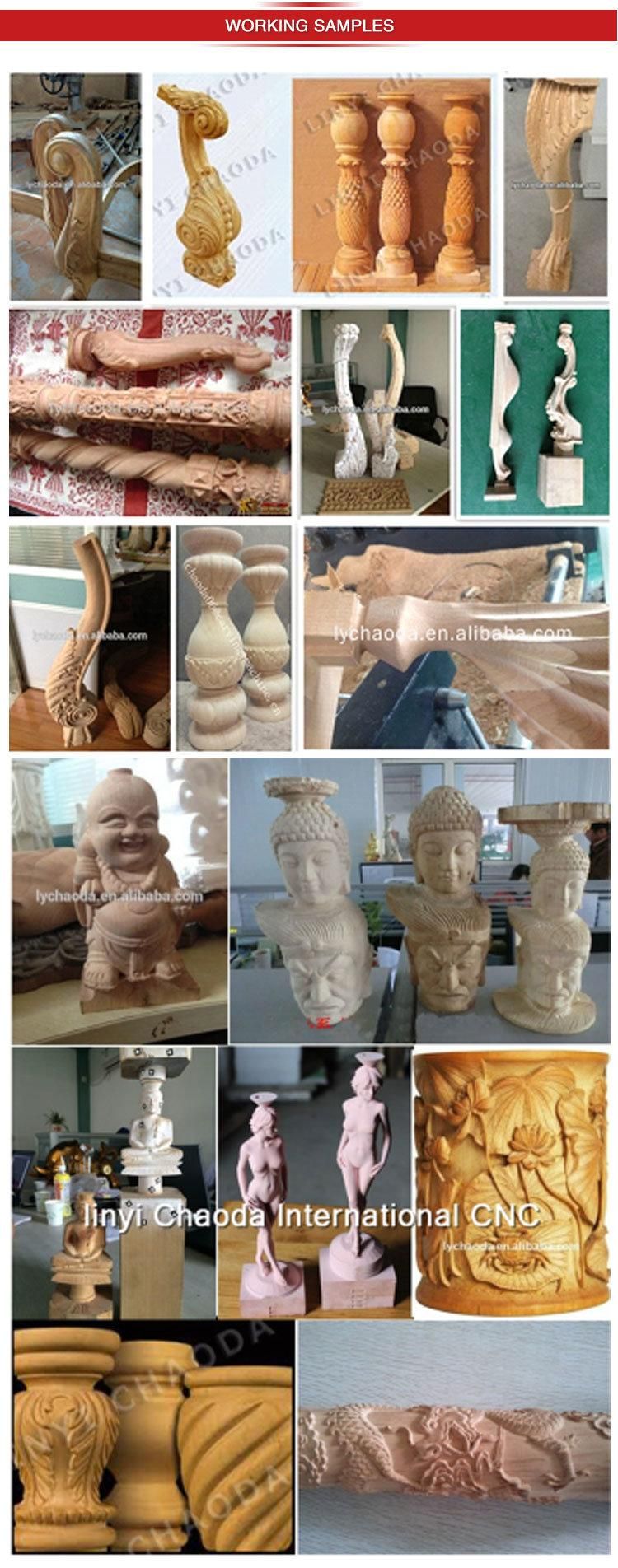

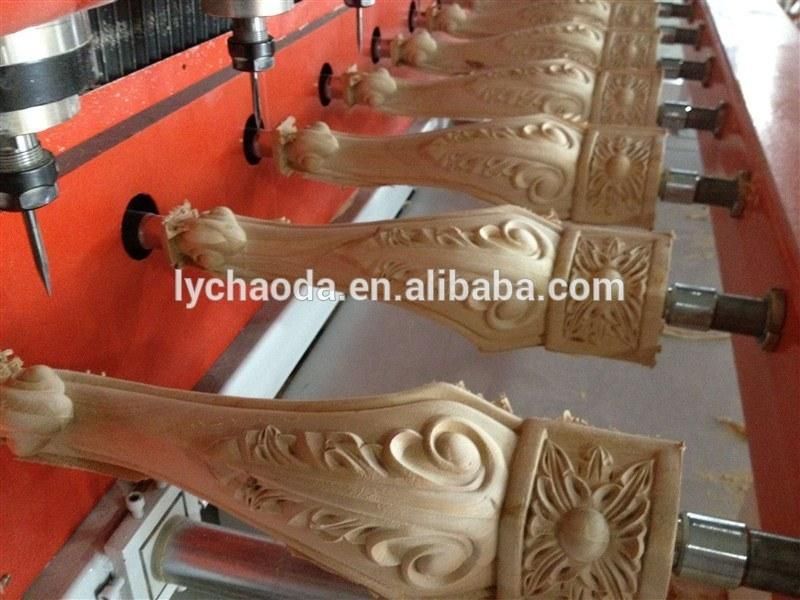

4) This machine is very suitable for furniture bulk production such as desk legs/stair handrails and other column /

     cylinder products,it also can easily engrave 360 degree human body, Buddhist statue, sculpture and other art

     works

5) Easy-to-operate Taiwan SYNTEC control system

6) Powerful PowerMill software with post processor

7) Except X, Y, Z and Rotary Axis, the 5th axis is the spindle can swing front and back, which can do
more complex work.

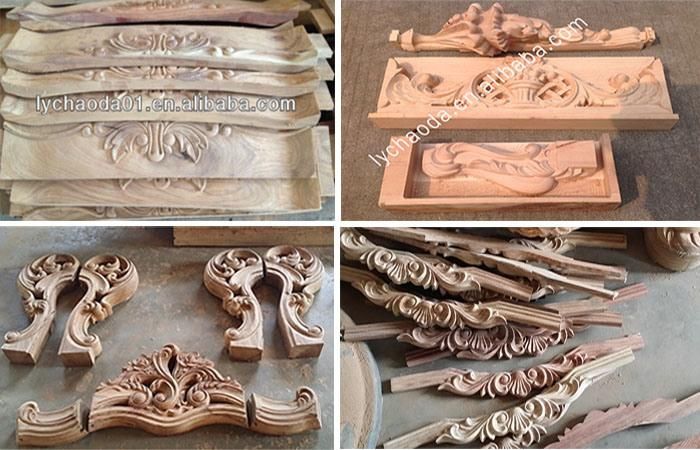

Flat Work

FAQ

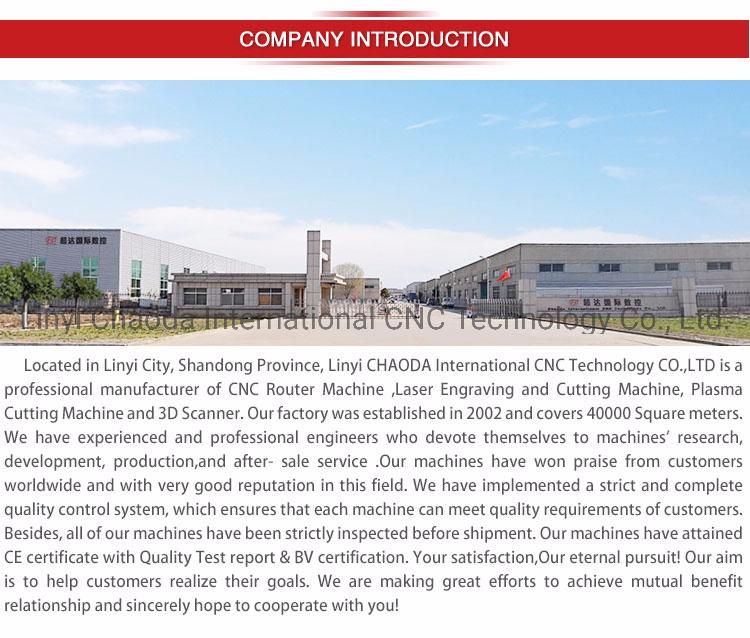

1) Factory location:

    Linyi city, Shandong province, China.

    From Shanghai to Linyi by airplane: about 1 hour

    From Beijing to Linyi by airplane: about 1 hour

    From Guangzhou to Linyi by airplane: about 2 hours

2) Payment term:

    50% T/T deposit payments in advance, the balance should be paid before shipment

3) Delivery time:

    1 month

4) Free training in our plant:

    Including how to make program (tool path) by PowerMill software, how to install and operate

    the machine, normally 2~3 days
