• Model NO.：LT-1325
• Spindle Power：3kw
• Spindle：Water Cooled Spindle
• Guide Rail：Hiwin Linear Square Guide Rail
• Working Area：1300*2500mm
• Transmission：X, Y by Gear Rack, Z by Ball Screw
• Spindle Rotating Speed：0-24000rpm
• Inverter：Fuling Inverter
• Software：Artcam
• Motor：Stepper Motor
• Driver：Leadshine Driver
• Transport Package：3300*1950*1950mm
• Specification：12.548
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：500sets,Year

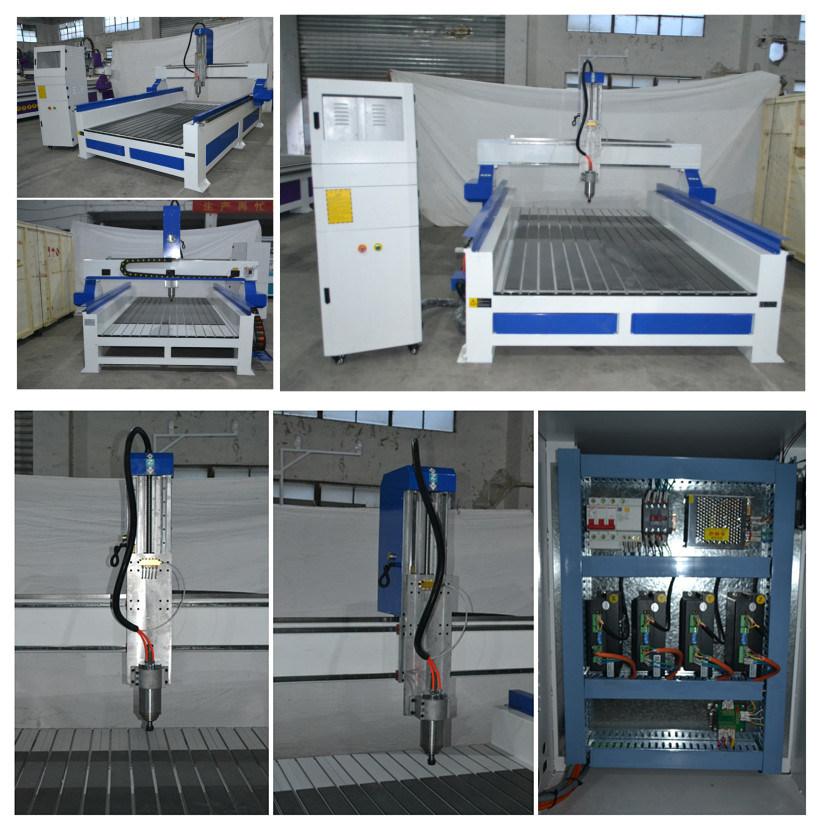

Main Features



1. Z axis feeding height 200mm

2. Square tube welded steel frame structure-8mm thickness

3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump

4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw

5. X, Y, Z axis Taiwan square rails PMI

6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver

7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional

8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional

Working area1300*2500*200mmTable styleAluminum T-slot table with pvc;Machine structure8mm thickness welded steel tube,cast iron vertical shafts and steel gantrySpindle3.0kw water cooling spindleSpindle rotating speed0-24000rpmCollect sizeER20Guide railHiwin square guide railDriving methodX,Y axis by helical gear rack,Z axis by TBI ball screwMotors and driversStepper motor450B,Leadshine drivers MA860HControl systemNcstudio control systemInvert Fuling invertMax.idling speed25m/minMax.working speed12m/minWorking accuracy<0.05/300mmInstruction formateG cose*u00*mmg*pltWorking voltageAC220V,1 phase,50-60HzCompatible softwareType3/CastmateControl cabinetIndependentOtherTool sensor,oiling system,water pump,tool box etc.

Application

Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on

Advertisement: engraving and cutting various labels and number plate.

Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable materials

wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

More machine models

Samples

Packaging & Shipping
--3300*1950*1950mm
Plywood case with water proof materials

FAQ

1) This is the first time I use this kind of machine, is it easy operate?

There are English manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, please tell me the max working

area, materials for processing and the thickness for materials processing engraving

or cutting.

Then perfect suitable CNC router will be recommended

3) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

we will give you 24hours service from phone and Skype.

4) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly,

please tell us your port name. There will be best shipping freight and machine price

send to you

5)Payment terms

a. 30% by T/T in advance,70% by T/T before shipping b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.

6)Delivery terms

We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
