• Model NO.：KAF
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Color：Multi Color
• Output：100-150 Kgs,Hour
• Motor：7.5 Kw
• Power Supply：220V or 380 V
• Pellet Size：6mm 8mm
• Weight：320 Kg
• Keyword 1：Wood Pellet Mill
• Keyword 2：Sawdust Pellet Mill
• Keyword 3：Feed Pellet Mill
• Keywords 4：Wood Pellet Machine
• Keywords 5：Sawdust Pellet Machine
• Transport Package：Wooden Case
• Specification：1* 0.45* 0.8 m
• Trademark：AGII
• Origin：China
• HS Code：8474802000
• Production Capacity：300 Sets Per Month

ModelCapacity
(kg/h)Motor
(kw)Pellet Size
(mm)Dimension
(m)Weight
(kg)KAF-200100-1507.5 kw6,8,101* 0.45* 0.8320KAF-250150-20015 kw1.2* 0.6* 1.3350KAF-300200-30022 kw1.3* 0.6* 1.3560KAF-350350-45030 kw1.4* 0.8* 1.2880KAF-450400-60045 kw1.8* 1* 1.651300

Advantages:

1.  CE certificate

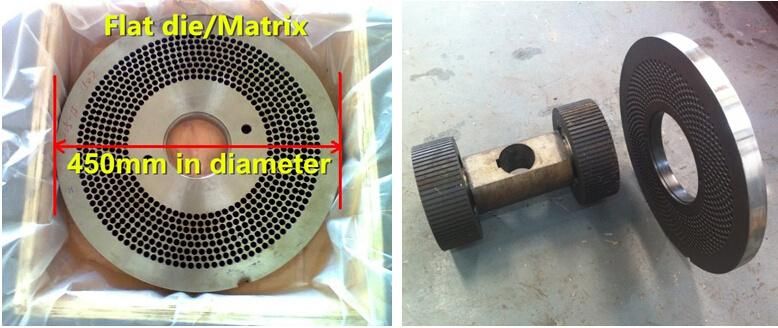

2.  Mould and roller both made of alloy steel.
3.  Gearbox life without refueling.
5.  The quick-wear parts (die and roller) warranty more than 2.000 working hours.

Features:

1. The flat die wood pellet mill machine are easier to clean than the ring die pellet mill.
2. Able to change die and roller faster and easily.
3. Small and lightweight, making small-scale production possible.
4. Visibility. It is possible to view into the chamber when pelletizing, so you can solve any problem in time.



Application of biomass wood pellet mill:

1. Widely used in households, farming and industries.

2. Mainly suitable for producing feed pellets, fuel pellets, fertilizer pellets,etc.

3. Applied to different grains such as corn, wheat, sorghum, and any type of agro-forestry waste: crops straw, husks, vines, wood chips, etc. (Energy-saving & Environment-protecting)

4. Size range of making wood pellets: Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm
