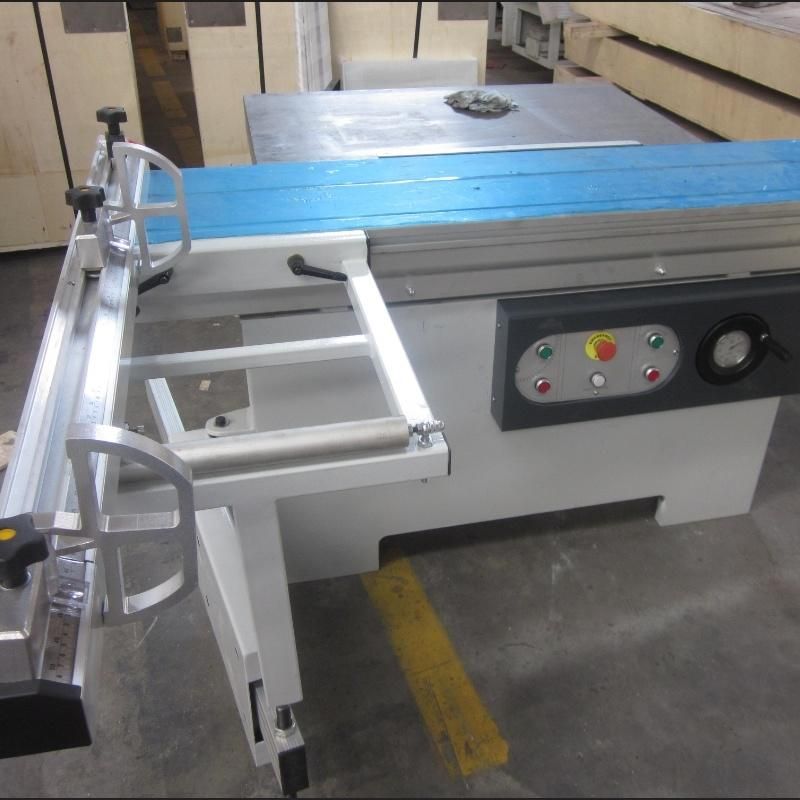

Mini Based Table Panel Saw Machine for Woodworking

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Precision：Precision

Base Info

  • Model NO.：MJ6115
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Dimension of Sliding Table：1500*375mm
  • Gross Cut Capacity：1500mm
  • Main Saw Motor Power：5.5kw(7.5HP)
  • Speed of Main Saw Spindle：4000,6000r.p.m
  • Max Cutting Height：80mm
  • Scoring Saw Spindle Diameter：20mm
  • Tilting Saw Group：0-45°
  • Diameter of Main Saw Blade：300mm
  • Main Spindle Diameter：30mm
  • Diameter of Scoring Saw Blade：120mm
  • Weight：570kg
  • Transport Package：Wooden Case
  • Specification：2.8CBM
  • Trademark：QDZD
  • Origin：Qingdao
  • HS Code：84569100
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. MJ6115 Certification CE, ISO Customized Customized Condition New Color Customized Dimension of Sliding Table 1500*375mm Gross Cut Capacity 1500mm Main Saw Motor Power 5.5kw(7.5HP) Speed of Main Saw Spindle 4000/6000r.p.m Max Cutting Height 80mm Scoring Saw Spindle Diameter 20mm Tilting Saw Group 0-45° Diameter of Main Saw Blade 300mm Main Spindle Diameter 30mm Diameter of Scoring Saw Blade 120mm Weight 570kg Transport Package Wooden Case Specification 2.8CBM Trademark QDZD Origin Qingdao HS Code 84569100 Production Capacity 500sets/Year

Product Description

Mini Based Table Panel Saw Machine for WoodworkingMini Based Table Panel Saw Machine for WoodworkingMini Based Table Panel Saw Machine for Woodworking
Mini Based Table Panel Saw Machine for Woodworking
Mini Based Table Panel Saw Machine for Woodworking
Mini Based Table Panel Saw Machine for Woodworking

Technical Specification:

TypeMJ6115
Dimension of sliding table1500x375 mm
Gross cut capacity1500 mm
Tilting saw group0-45°
Diameter of main saw blade300 mm
Max cutting height (90°)80 mm
Speed of main saw spindle4000/6000 r.p.m
Main saw motor power5.5 kw
Main spindle diameter30 mm
Diameter of scoring saw blade120 mm
Speed of scoring saw spindle8000 r.p.m
Scoring saw motor power1.1 kw
Scoring saw spindle diameter20 mm
Weight570 KGS
Overall dimension1550x3150x900 mm

Feature:
  1. Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
  2. Moveable table guide track is chromium steel bar structure, exact and durable.
  3. The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent.
  4. With oxidation treatment, the sliding table surface is beautiful and durable.

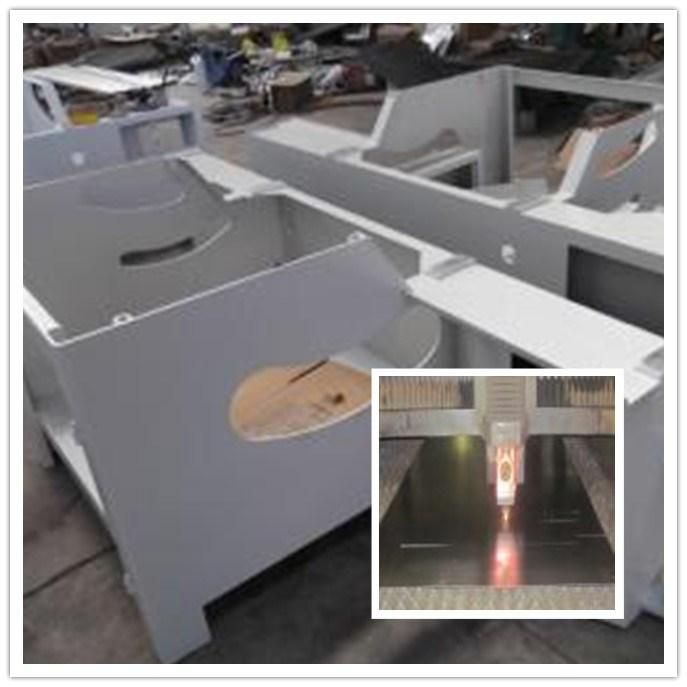

  5. The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise.

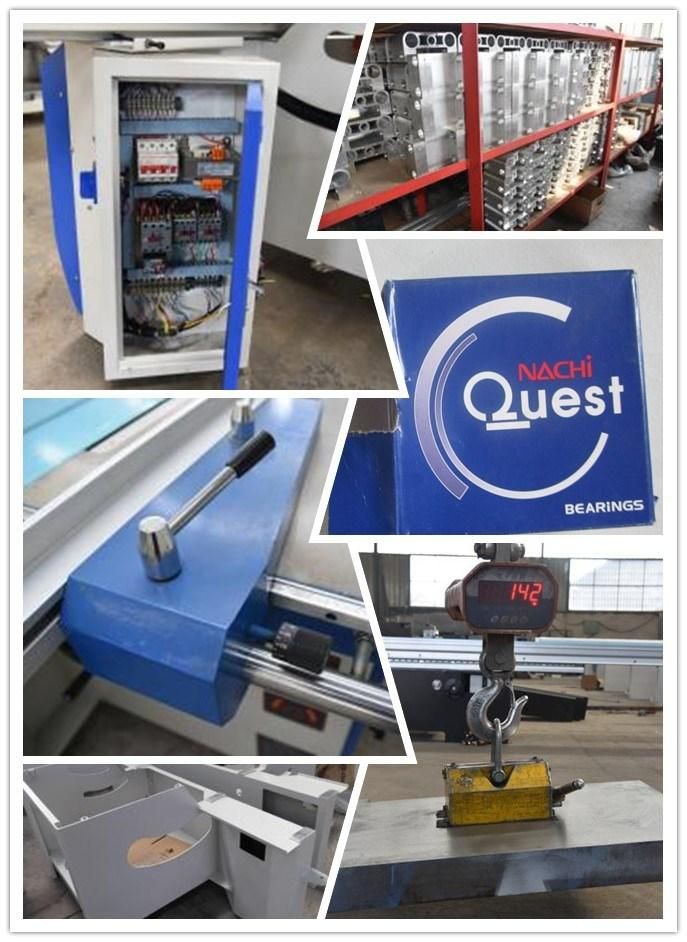

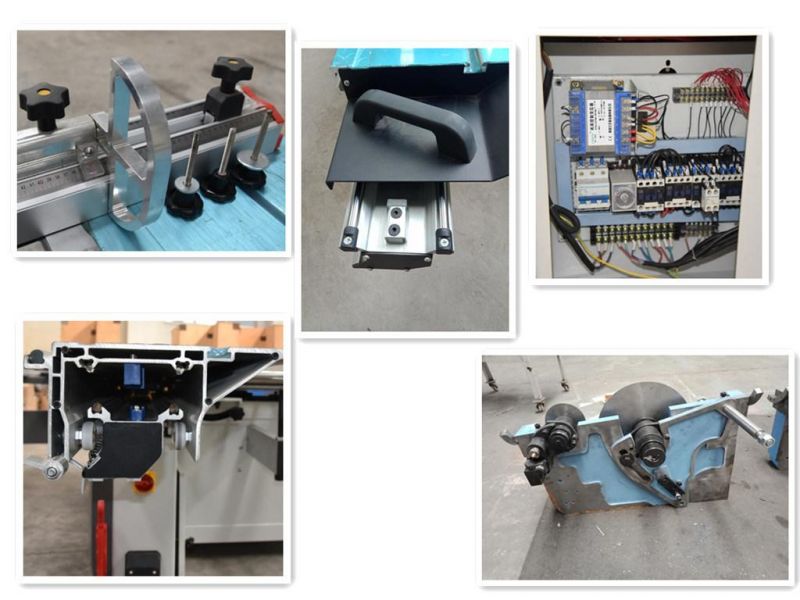

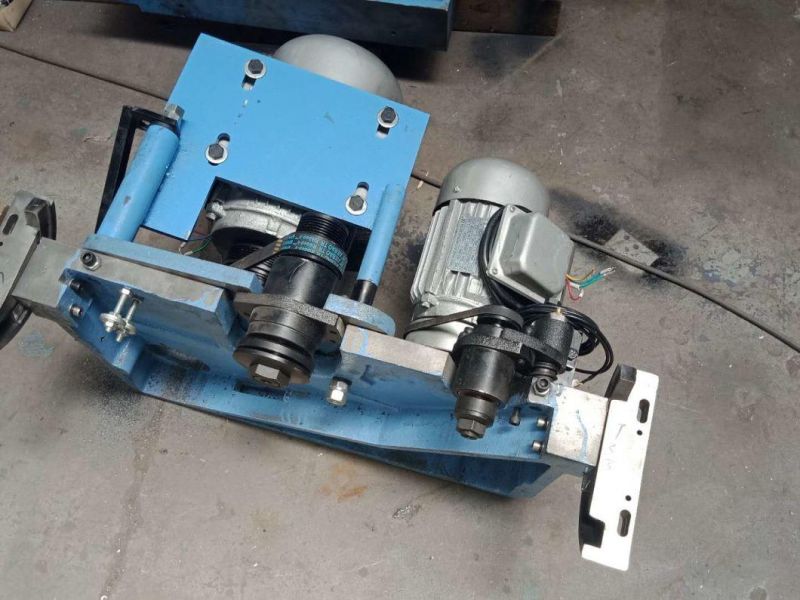

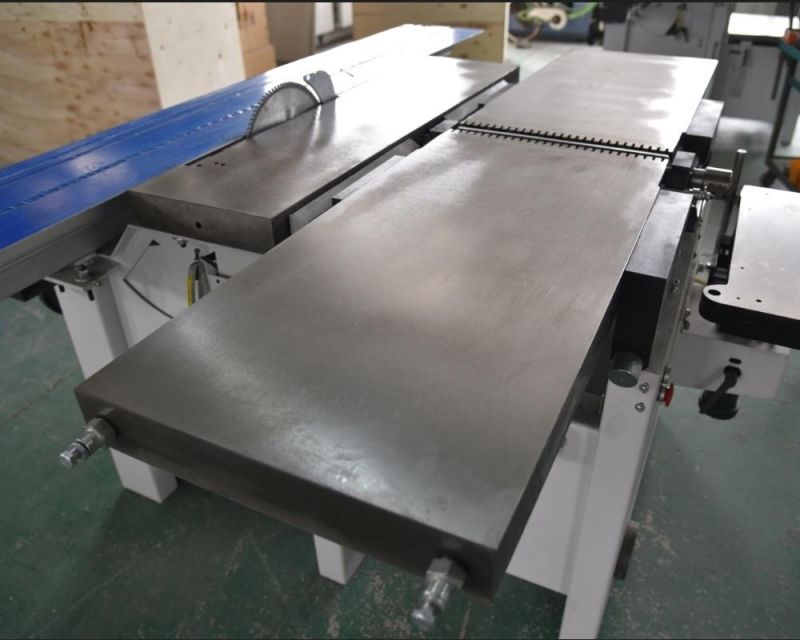

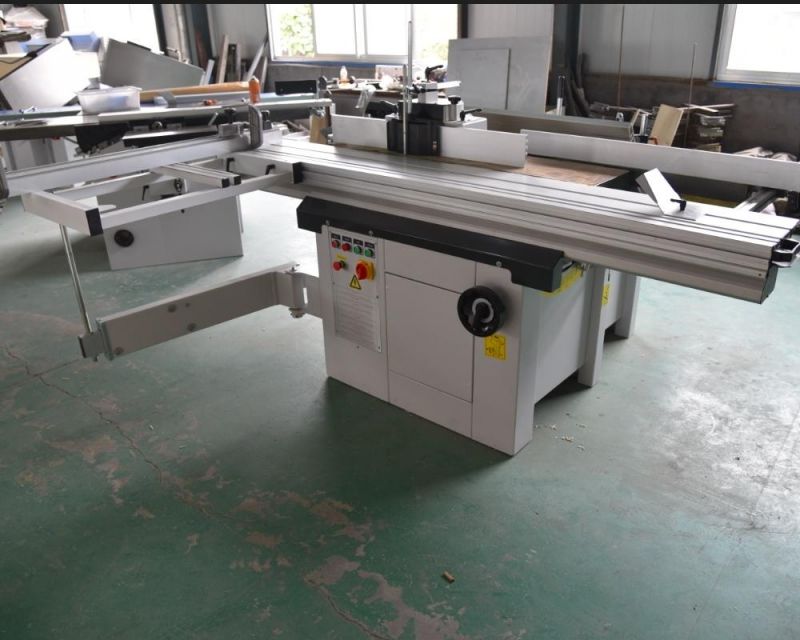

Product Details:
Mini Based Table Panel Saw Machine for Woodworking
Mini Based Table Panel Saw Machine for Woodworking
Mini Based Table Panel Saw Machine for Woodworking
Mini Based Table Panel Saw Machine for Woodworking



Certificate:

Mini Based Table Panel Saw Machine for Woodworking

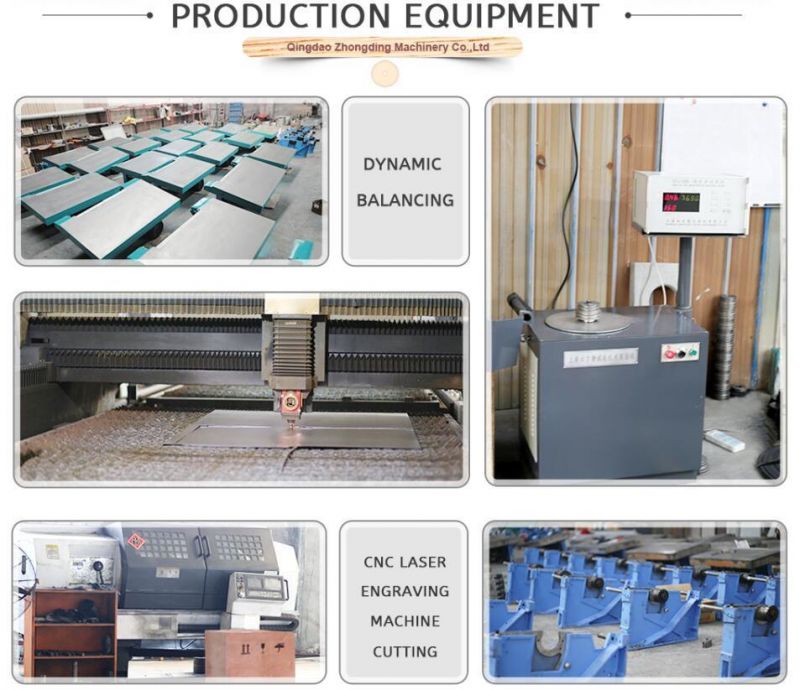

Our company:

Mini Based Table Panel Saw Machine for Woodworking

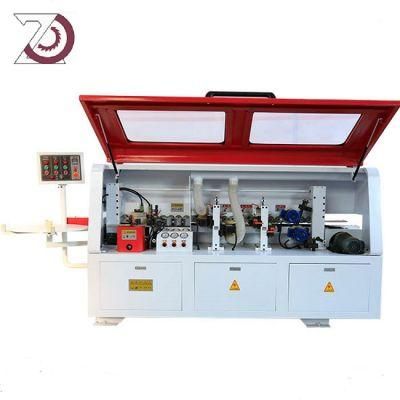

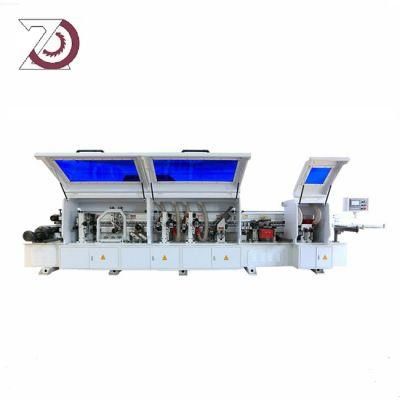

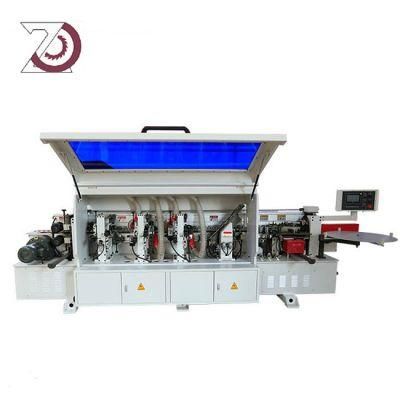

Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
