Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Pneumatic Veneer Clipper
  • Automatic：Automatic
  • Certification：CE, ISO
  • Transport Package：Option
  • Specification：19cbm
  • Trademark：QDZD

Base Info

  • Model NO.：MQJ268
  • Origin：Qingdao
  • HS Code：84659600
  • Production Capacity：500 Sets

Description

ModelMQJ420MQJ320MQJ268MQJ150Max cutting length(mm)4200310026801500Max cutting thickness(wet veneer)(mm)40404040Max cutting thickness(dry veneer)(mm)20202020Scissors size(mm)4200*145*163200*145*142750*125*141500*105*14Feed motor power(kw)4.373.373.372.57Compressed air pressure (Mpa)0.4-0.70.4-0.70.4-0.70.4-0.7Overall dimension(mm)5700*1600*21004700*1500*20004100*1400*19002900*1400*1900Weight(kg)3500300025002000Picture:

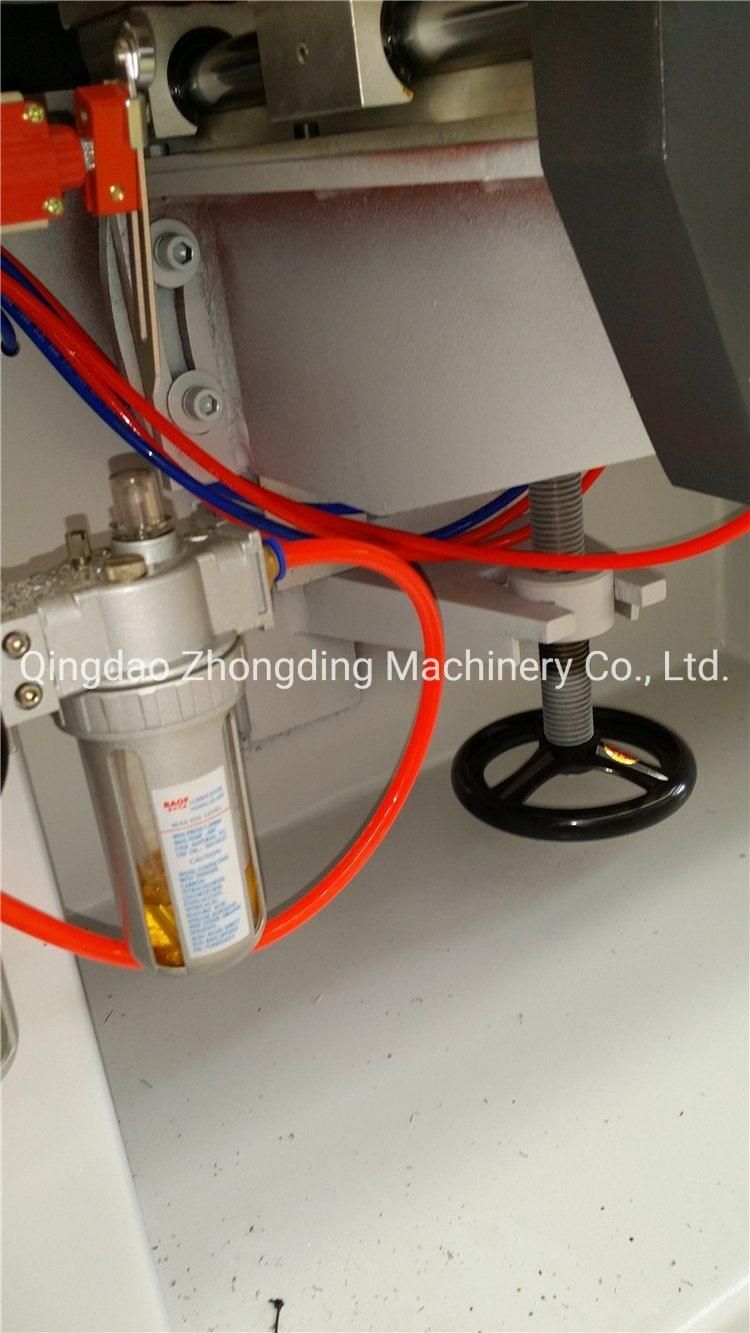

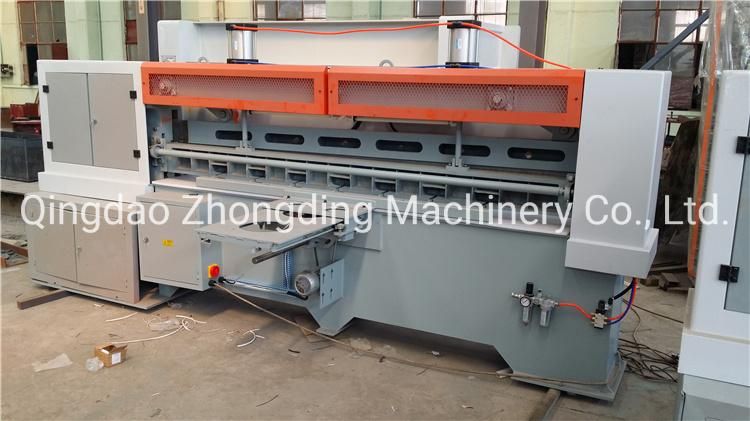

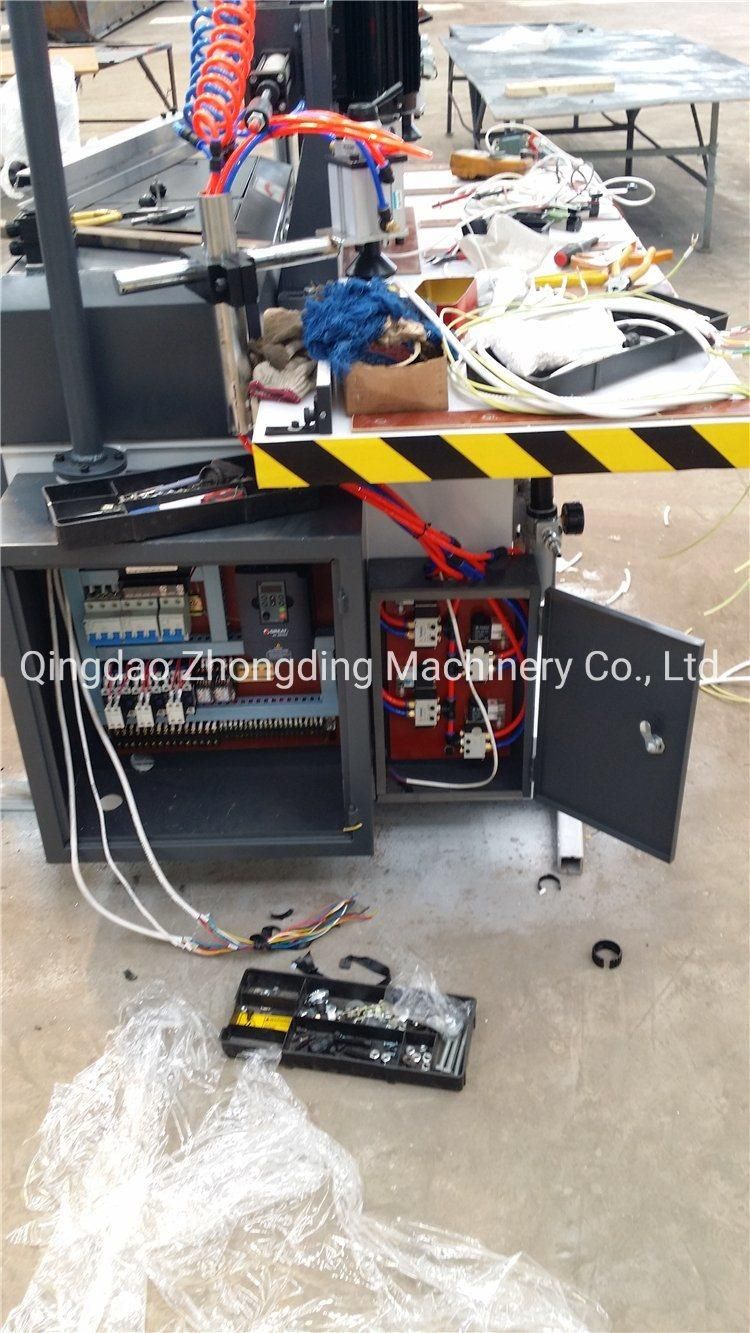

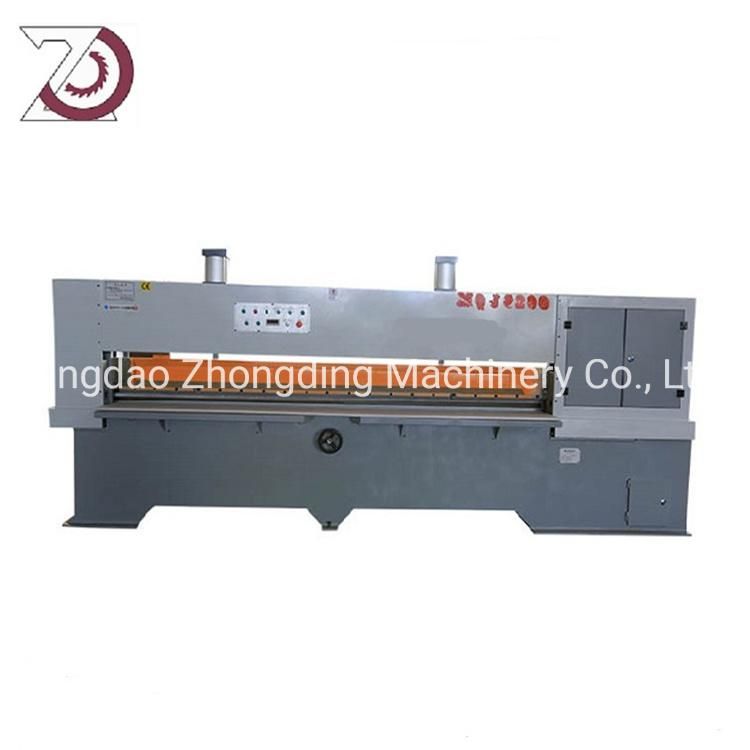

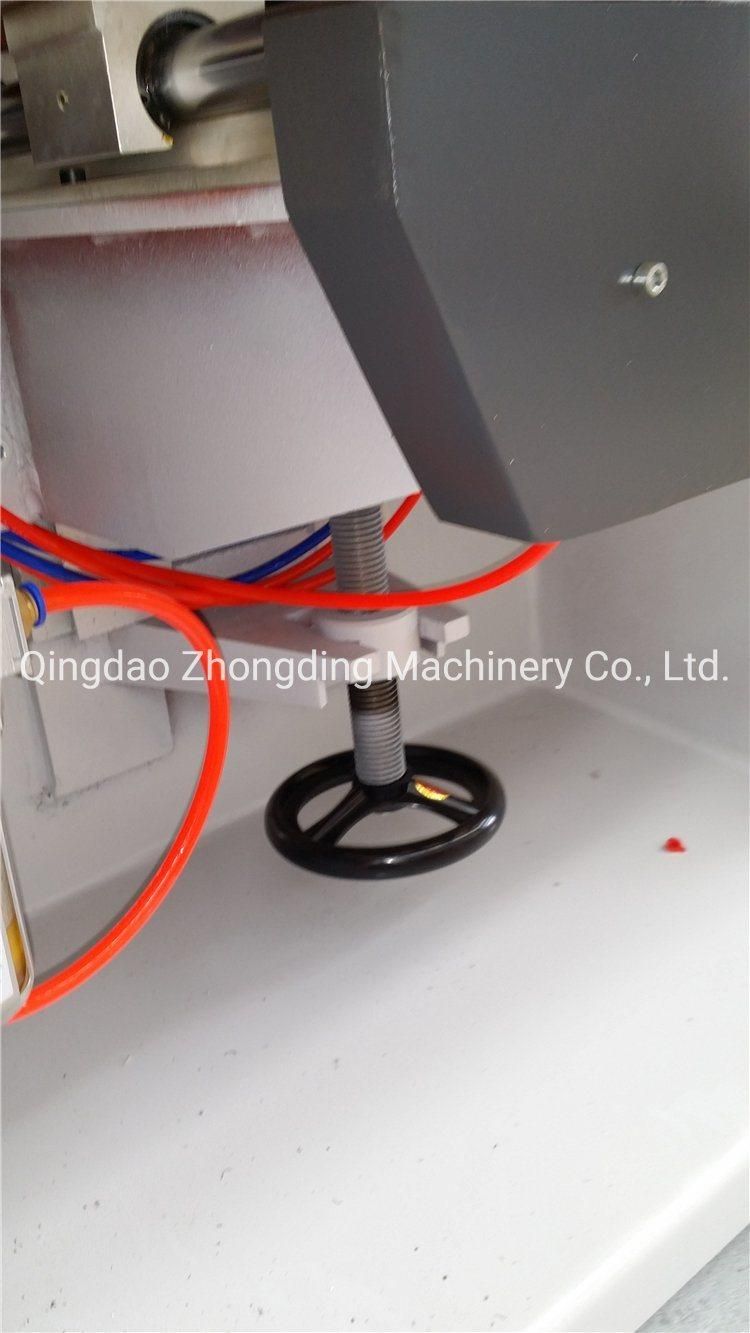

Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine

Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine
Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine
Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine
Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine
Solid Wood Veneer Penuamatic Clipper Veneer Cutting Machine
