• Customized：Customized
• Condition：New
• Color：Customized
• Rail：Hiwin Liner Square Guide Rail
• Inverter：Sunfar Inverter
• Spindle Power：4.5kw

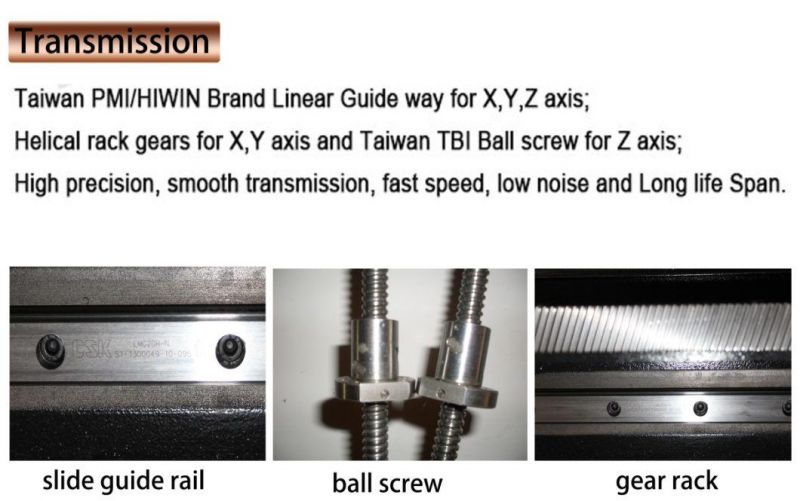

• Transmission：Helical Rack
• Lubricating：Oiling System
• Motor：Yaskawa Servo Motor
• Working Area：1300mm*2500mm
• Control System：DSP Control System
• Spindle：Air Cooling Spindle
• Application：Wood Working
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Model

ZK 1325 CNC router

X,Y,Z Working Area

1300*2500*200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z repositioning Positioning Accuracy

±0.02mm

Lathe Structure

Thick wall square tubes welding bed

X Structure

Taiwan HIWIN square guide rails

Y Structure

Taiwan HIWIN square guide rails

Z Structure

Taiwan TBI ball screw

Max.Speed

0-30000mm/min

Max.Working Speed

0-25000mm/min

Spindle

4.5KW air cooling spindle)

Spindle Speed

6000-18000RPM

Working Mode

Japan YASKAWA servo motor

Working Voltage

380V/3ph

50HZ/60Hz for standard machine

Command Code

G code(*uoo,*nc,*mmg, *plt)

Operating System

DSP control system

Interface

 USB

X,Y Working Delicacy

<0.01mm

Software

Type3 software or Wentai software

Running circumstance

Temperature: 0°C~45°C

Relative humidity: 30%~75%

Waranty

One year

Delivery time

15 working days

Technical support:

• Warranty is 1 year
•
• 24 hour technical support by email or calling
•
• User-friendly english manual for machine using and maintaining
•
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.
•

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.

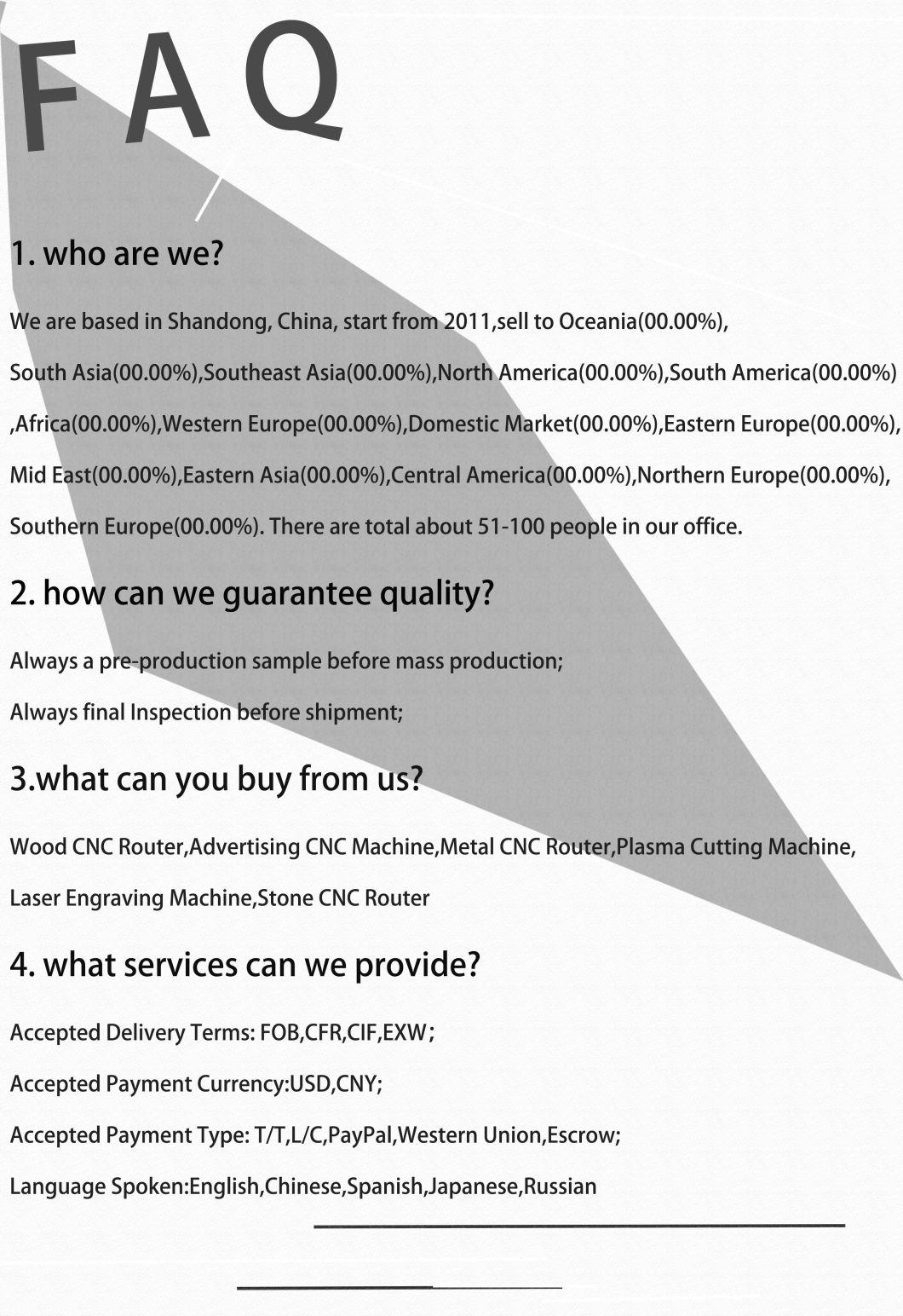

FAQ:
