Woodworking Machinery

Woodworking Machinery CNC Beam Panel Saw Wood Cutting

Qingdao Samac International Trading Co., Ltd.
  • Type:Frame Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Precision:High Precision

Base Info

  • Certification:CE, ISO
  • Customized:Non-Customized
  • Condition:New
  • Color:Iron Grey
  • Transport Package:OEM
  • Specification:CE Standard
  • Trademark:SAMACH
  • Origin:China
  • HS Code:84659902
  • Production Capacity:90sets,Month

Description

Basic Info.

Certification CE, ISO Customized Non-Customized Condition New Color Iron Grey Transport Package OEM Specification CE Standard Trademark SAMACH Origin China HS Code 84659902 Production Capacity 90sets/Month

Product Description

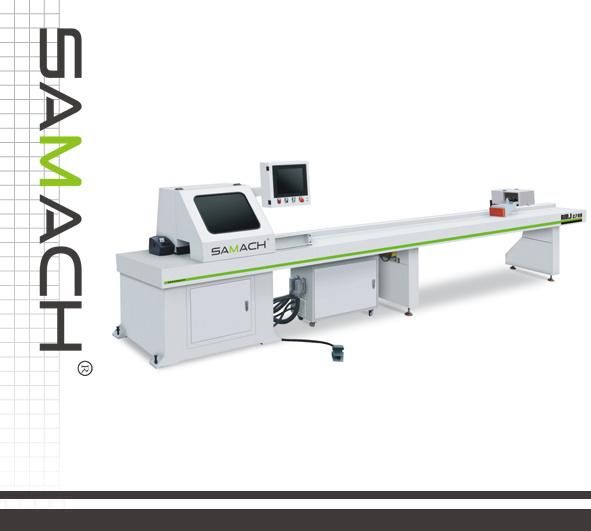

Solid Wood Panel Board CNC Cut-off Saw Rmj601

Woodworking Machinery CNC Beam Panel Saw Wood Cutting
CNC Cut-off Saw Specifications:
Specifications&modelsRMJ601RMJ602RMJ603
Cutting thickness10-120mm200mm(Thickness:200mm)40-80mm
Cutting width30-200mm450mm(Thickness:100mm)30-230mm
Cutting length4000mm4000mm4000mm
Max.cutting cross sectional area120×120/100×200mm-250×30mm
Feeding speed5-30m/min 60m/min
Cutting speed40pcs/min 60pcs/min
Saw blade sizeФ450mmФ620mmH450×D30
Dimension of saw shaftФ30mmФ30mmФ30mm
Saw sprindle sped3500rpm1850rpm3000rpm
Feeding servo motor750W750W750W
Saw motor7.5kw7.5kw7.5kw
Pressure5-6kg/cm²5-6kg/cm²5-6kg/cm²
Dust collecting portФ100mm×2Ф100mm×2Ф100mm×1
Overall Size9000×1200×1300mm9000×1225×1500mm6750×1450×1800mm
Sawing error<1mm<1mm<1mm
Weight900kg1200kg1000kg
Cylinder stroke250mm250mm250mm
 Features:
  1. Touch screen operation, simple and efficient.
  2. The machine will infeed and cut automatically after input the data.
  3. It is available to input 10 sets of data each time.
  4. The optimizing identification function is optional.
  5. 30 degrees tilting table design is for the purpose of keeping the conveyor belt guide way stable.

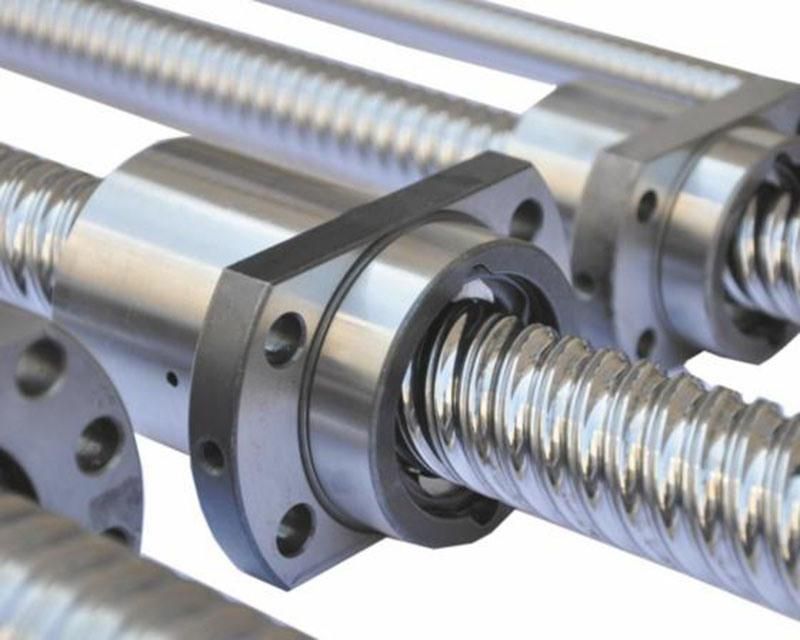

  6. Adopting Taiwan TBI high precision screw

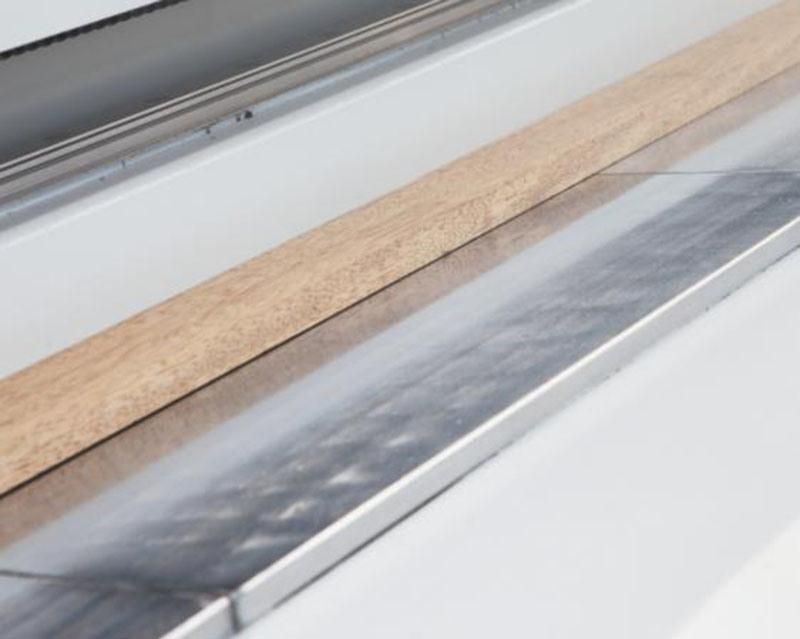

  7. degrees tilting table

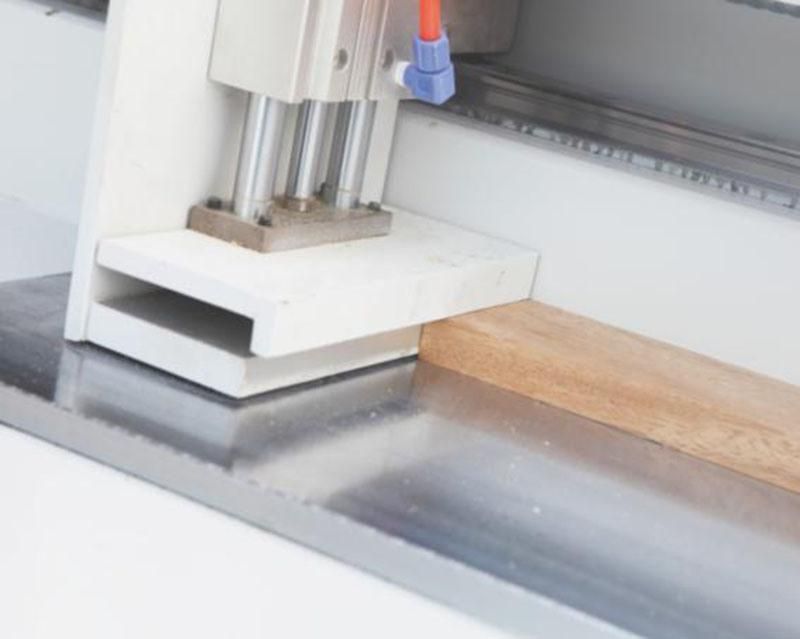

  8. Cylinder device could press accurately

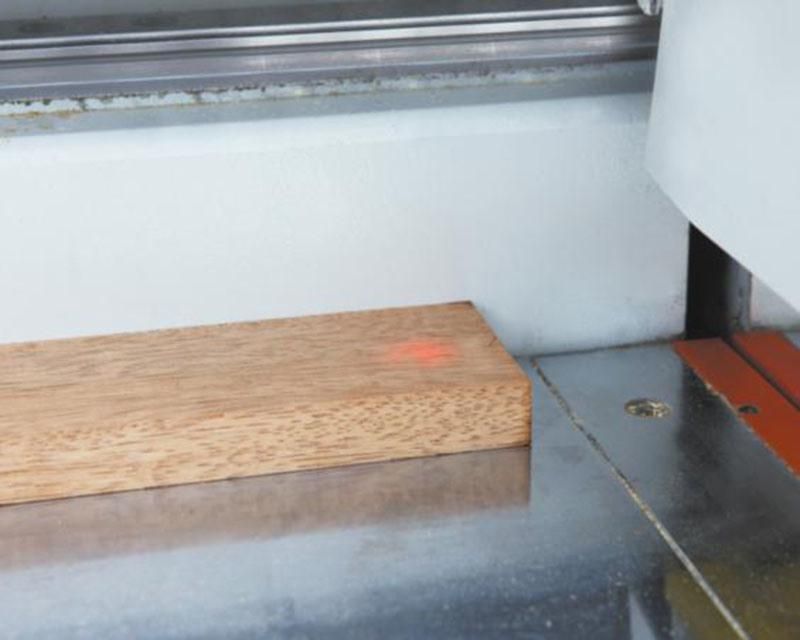

  9. Infrared calibration device to make the real-time detection.

Woodworking Machinery CNC Beam Panel Saw Wood Cutting
Woodworking Machinery CNC Beam Panel Saw Wood Cutting
Woodworking Machinery CNC Beam Panel Saw Wood Cutting
Woodworking Machinery CNC Beam Panel Saw Wood Cutting

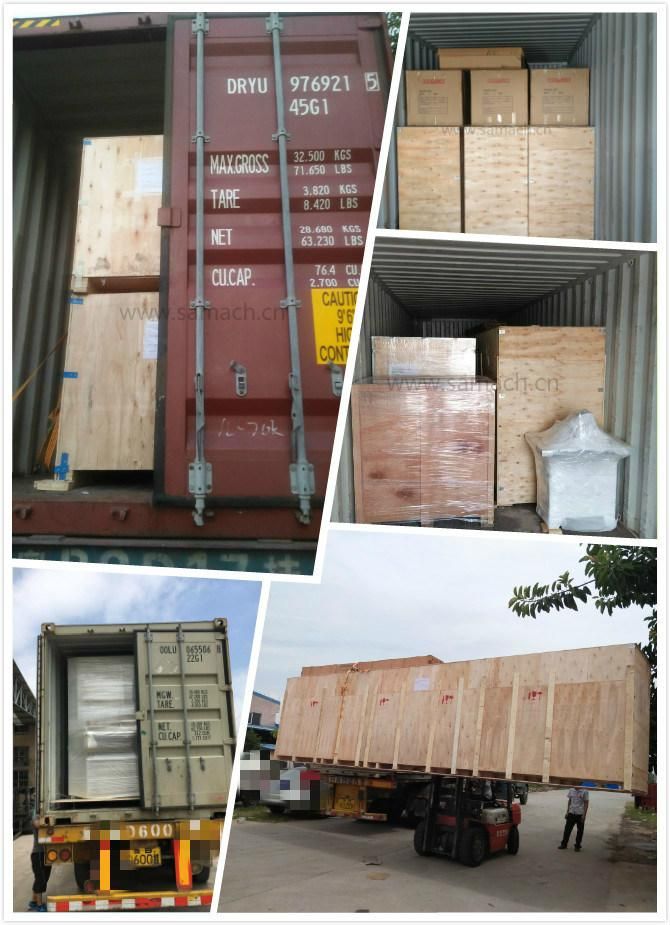

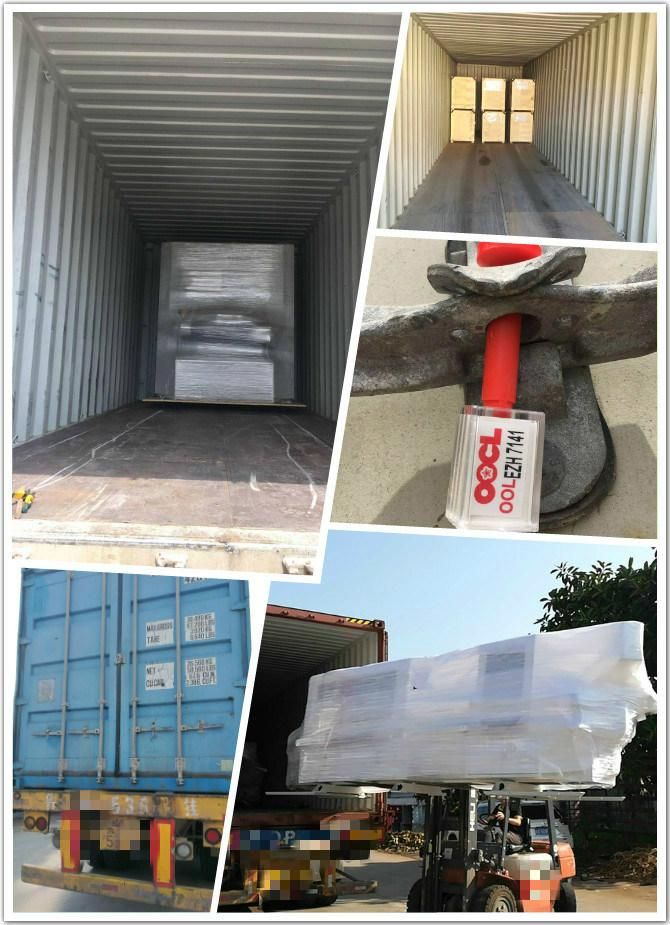

Delivery of Woodworking Machines
Woodworking Machinery CNC Beam Panel Saw Wood Cutting
Woodworking Machinery CNC Beam Panel Saw Wood Cutting

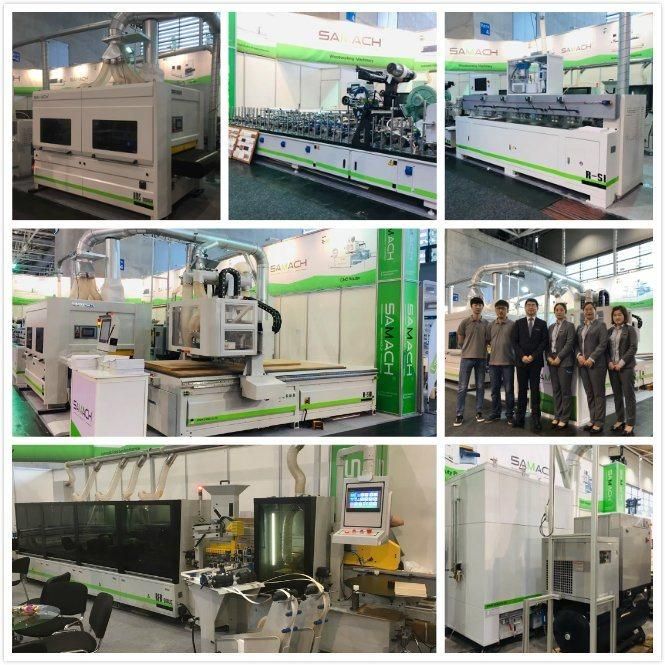

Exhibition, LIGNA in German, World Top Level Exhibition
Woodworking Machinery CNC Beam Panel Saw Wood Cutting

Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine
latest and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees
,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partner.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time!
