Woodworking Machinery

Sawdust Pressed Wood Pallet Block Production Line Machine

Henan Pallet Machinery Co., Ltd.
  • Warranty:1 Year
  • Work Forms:Hydraulic Pressure
  • Processing Technics:Hot Press
  • Structure:Frame Type
  • Pressing Shape:Moulding Press
  • Platen Surface Pressure:Medium Pressure

Base Info

  • Model NO.:PM-JDJ-D
  • Pressing Layer:Single Layer
  • Work Mode:Continuous
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Certification:CE
  • After-sales Service:Installation & Maintenance
  • Transport Package:Wooden Case
  • Trademark:PalletMach
  • Origin:China
  • Production Capacity:60 Pieces,Year

Description

Overview Product Description
  1. Product ParametersModelPM-JDJ-SPM-JDJ-DPM-JDJ-TSize (mm)4800*780*13204800*780*13204800*900*1420Length and width of block (mm)75-145Power (kW)16.8622.2630.26Density (kg/m3)550-600Production efficiency (m3/24h)2-53-65-9Dimension with saw (mm)8000*600*15008000*700*15008000*700*1500Weight (kg)100015002000Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required. Working Principle


    1. The hydraulic cylinder provides high pressure and pushes the piston to extrude and mold the materials.

    2. The heating of the heating plate at a high temperature promotes the solidification and molding of urea-formaldehyde glue.

    3. Cutting according to a certain length (usually around 1.2 meters).

    4. After cooling, the compressed sawdust pallet block machine for block pallet cut the long wood strips of half-finished products to the final size.


    Our Advantages


    1. Strong bearing capacity, no deformation, and can be reused.

    2. Pallet blocks can be used in export package, free fumigation, and free quarantine.

    3. Insects prevention and protection against termites and do not easy to burn.

    4. Compressed sawdust pallet block machine for block pallet uses hydraulic transmission, horizontal continuous out bags, speed high yield.

    5. Compressed sawdust pallet block machine for block pallet is mainly applicable for sawdust, compression moulding material, facilitate their storage, transportation cost.


    Normally 90*90 mm, 90*100 mm, 100*100 mm, 80*90 mm, and so on according to the inlet fork height of the forklift. If you have special requirements, we could customize it while it ranges from 75 mm to 145 mm.

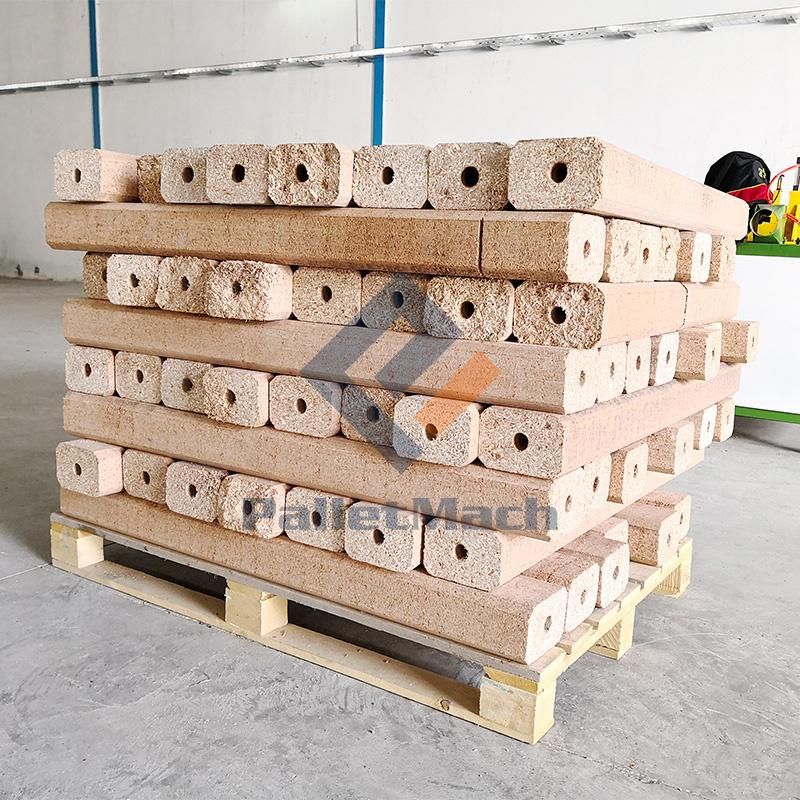

    Detailed PhotosSawdust Pressed Wood Pallet Block Production Line MachineSawdust Pressed Wood Pallet Block Production Line Machine
