• Color：Customized
• Transport Package：Standard Export Packaging or as Per Your Request
• Specification：3140x2770x2440mm
• Trademark：METRO MACH
• Origin：Shandong, China (Mainland)

Basic Info.

Color Customized Transport Package Standard Export Packaging or as Per Your Request Specification 3140x2770x2440mm Trademark METRO MACH Origin Shandong, China (Mainland)

Product Description

This machine is suitable for the thickness setting ,light sanding and fine polishing of the small
type wood board ,veneer ,chipboard ,fiberboard,middle dense board ,laminatedboard ,and variety
of sheet materiaks for the funiture factory and the board mill..




Technical Parameters


Working Width	40~1300mm
Working thickness	2.5~110mm
Working Length	≥750mm
No.1 Abrasive belt speed	20m/s
Power Supply	380V  50HZ
Feed speed	20~40m/min
Size of abrasive belt(W x P)	1300x2620mm
Total motor power	64kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m³/min
Volume of sucked air	7900m3/h
Speed of sucked air	25-30m/s
Overall dimension (L x W x H)	2100x2900x2440mm
Net Weight	6400kg

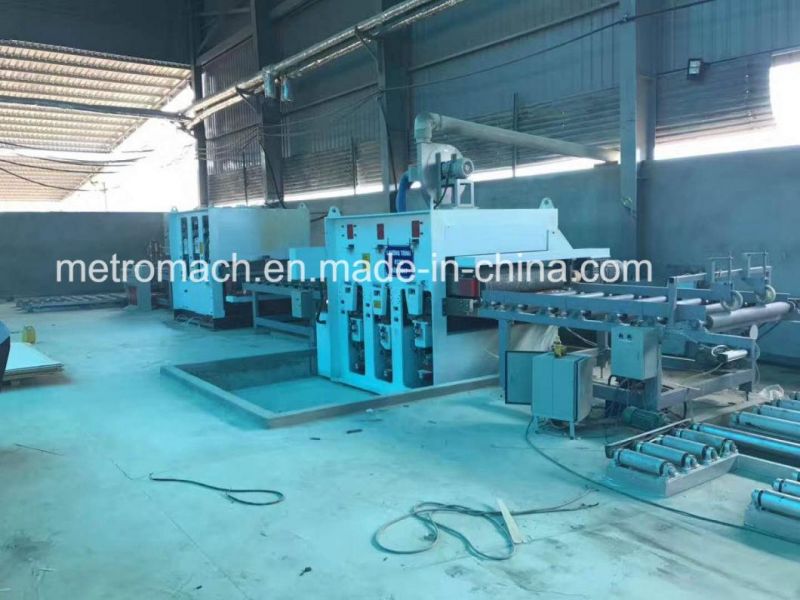

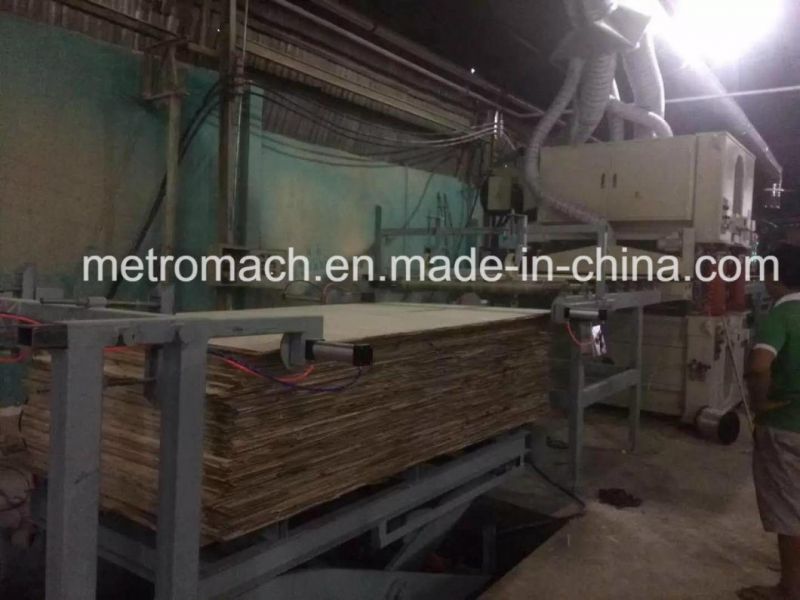

Customer working machine photos



Customer install  machine photos








Shipping & Packaging





Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
