• Model NO.：550 MX
• Warranty：1 Year
• Customized：Non-Customized
• Condition：New
• Color：Customized
• Product Name：Wood Pellet Making Machine
• Inner Dia of Ring Die：450mm
• Power：55 Kw
• Capacity：0.8-1.0t
• Dimension：1.4*0.75*1.55
• Weight：2800kg
• Keywords：Biomass Pellet Machine
• Keywords1：Wood Pellet Mill Machine
• Keywords2：Ring Die Wood Pellet Mill
• Keywords3：Wood Pellet Making Machine
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：AG
• Origin：China
• Production Capacity：10sets Per Month

Basic Info.

Model NO. 550 MX Warranty 1 Year Customized Non-Customized Condition New Color Customized Product Name Wood Pellet Making Machine Inner Dia of Ring Die 450mm Power 55 Kw Capacity 0.8-1.0t Dimension 1.4*0.75*1.55 Weight 2800kg Keywords Biomass Pellet Machine Keywords1 Wood Pellet Mill Machine Keywords2 Ring Die Wood Pellet Mill Keywords3 Wood Pellet Making Machine Transport Package Wooden Case Specification CE, SGS Trademark AG Origin China Production Capacity 10sets Per Month

Product Description

Chinese Factory Supplier wood pellet machines for sale pellet machine wood

Product presentation:


This type of vertical ring die 1000kg/h wood pellet mill machine is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping pelletizing equipment with low investment and high profit.

Specification:


Model	Inner Dia of Ring die	Power (Kw)	Capacity (ton/hour)	Dimension (m)	Weight (Kg)
450 MX	450mm	55 kw	0.8-1.0T	1.4*0.75*1.55	2800
550 MX	550mm	90 kw	1.5-2T	1.9*0.95*1.8	4500
800 MX	800mm	132 kw	2-3T	2.5*1.35*2.1	7000
1000 MX	1000mm	160 kw	3-4T	2.65*1.45*2.1	8500

Feature:

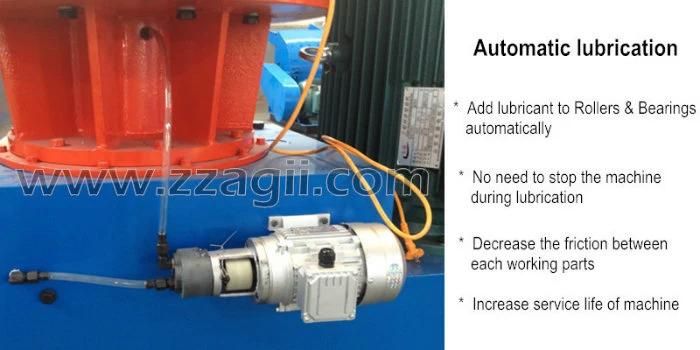

1.Gearbox: Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period
 2.Vertical motor: the most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working

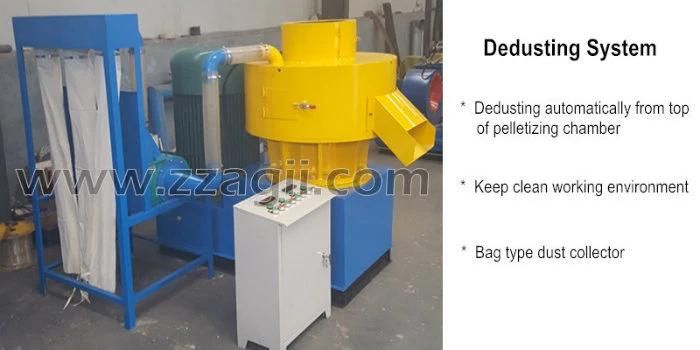

 3.Blower system: Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam
4.Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.

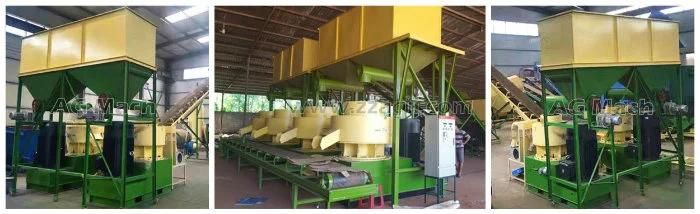

Detailed Images:

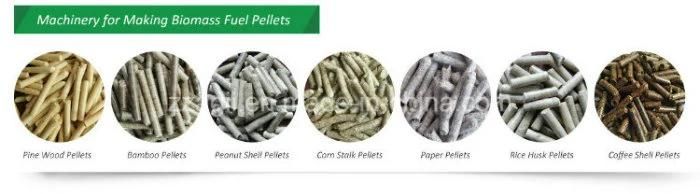

Wood pellets:

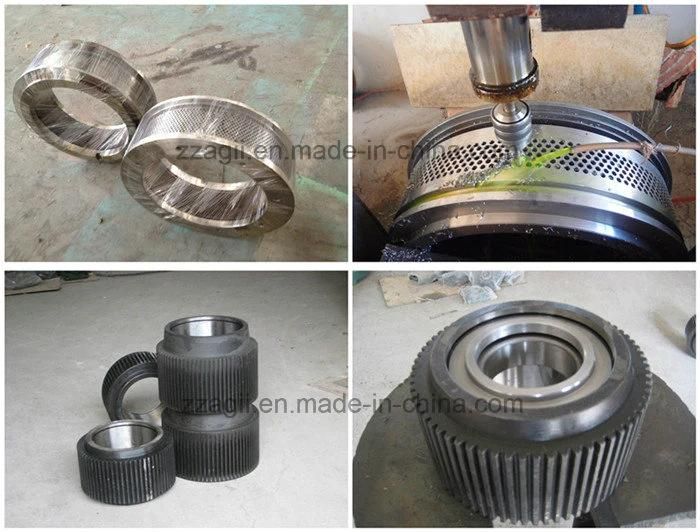

Spare parts:
