160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System

Shandong STX Machinery Trade Co., Ltd.
  • Warranty:18 Months
  • Type:Four-Side Planer
  • Working Depth:100-200mm
  • Working Width:160mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Mechanical

Base Info

  • Model NO.:M616
  • Motor Power:>10Kw
  • Cutter Shaft:6
  • Spindle Speed:>5000rpm
  • Process Type:Heavy Processing
  • Certification:CE
  • After-sales Service:Online Service
  • Color:Standard
  • Advantage:Long Service Life
  • Application:Woodworking Factory
  • Function:Planer and Moulder
  • Extra Support:Roller Conveyor

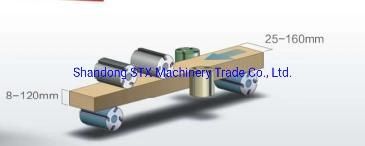

  • Working Thickness:8-120mm
  • Max. Working Width:160mm
  • Spindle Qty.:6
  • Transport Package:Steel Pallet
  • Origin:China
  • HS Code:846592
  • Production Capacity:2000 Sets,Year

Description

Other Parameters

Feeding wheel diamter

140mm

Overall dimension

3690*1400*1680mm

Dust outlet diameter

140mm

Machine weight

3150kg



 160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System



160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System

Detailed Images

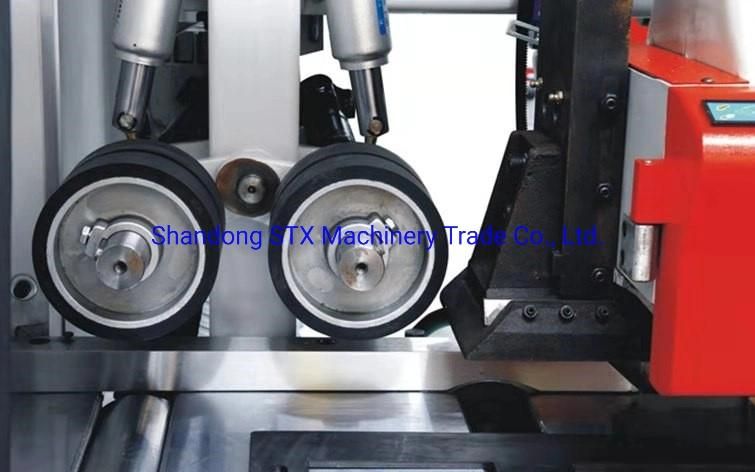

160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor SystemRapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated

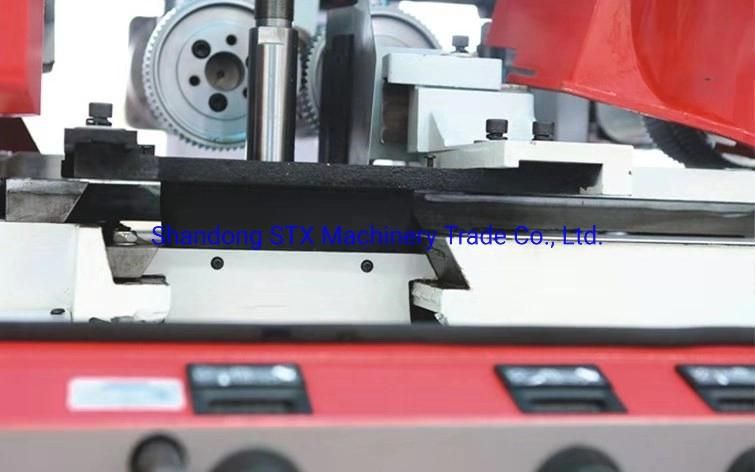

Moveable working table on the last bottom spindle, Making easy working on changing cutters

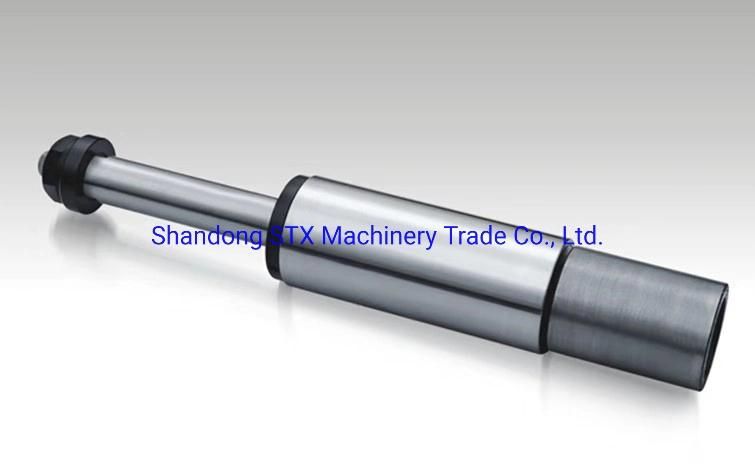

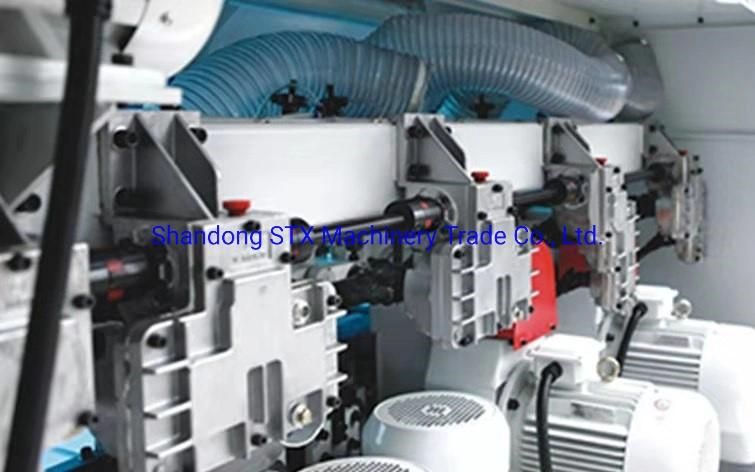

160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor SystemHeavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracyEvery spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughness160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor SystemDouble-deck working table on left and right spindle, guaranteed working verticalityFront and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working table160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor SystemFeeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.


160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System

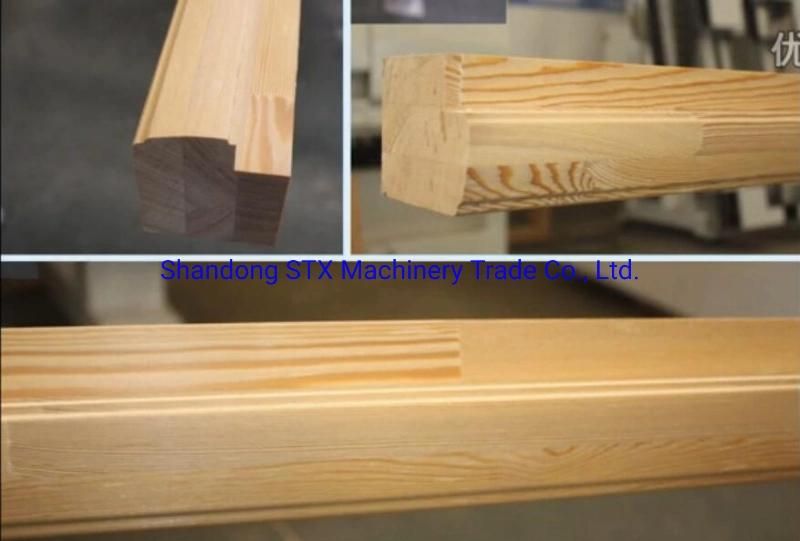

Processed effect

160mm Automatic 6 Spindles Four Side Planer Moulder with Conveyor System
