• Model NO.：ZDBS1000-8BX
• Origin：Qingdao
• HS Code：84659300
• Production Capacity：500 Sets

Model ZDBS1000-8BXMac working width1000mmWorking thickness5-160mmMin working length350mmTotal power14.1kwFeeding speed5-30m/minOverall dimension4200*1720*1900mmWeight2500kg This wood polishing machine is used after engraving or cutting by the CNC router, it can remove the burr and dirty in the durface or side of the wood panel. apply in solid wood, PU, metal and many other material.

the rollers can be customized, depends on the processing and workpiece size and others.
Machien detail:


2 lines of sanding dics + 2 lines of sanding dics + 2 lines of sanding dics + 2 straihgt roller

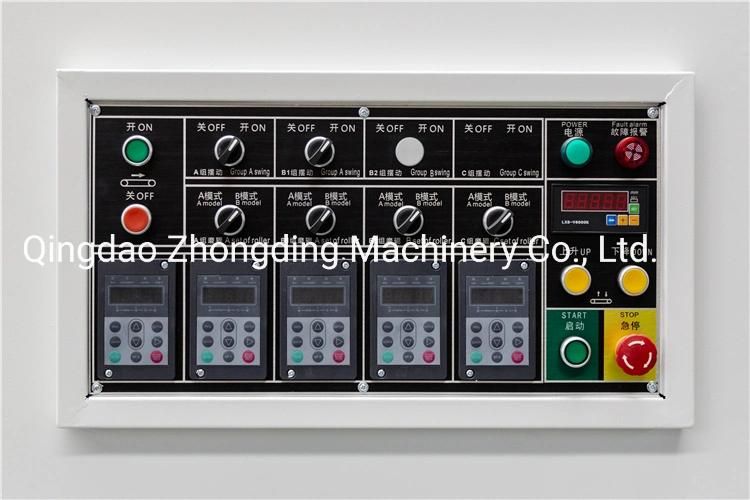

Easy opreated interface control panel.

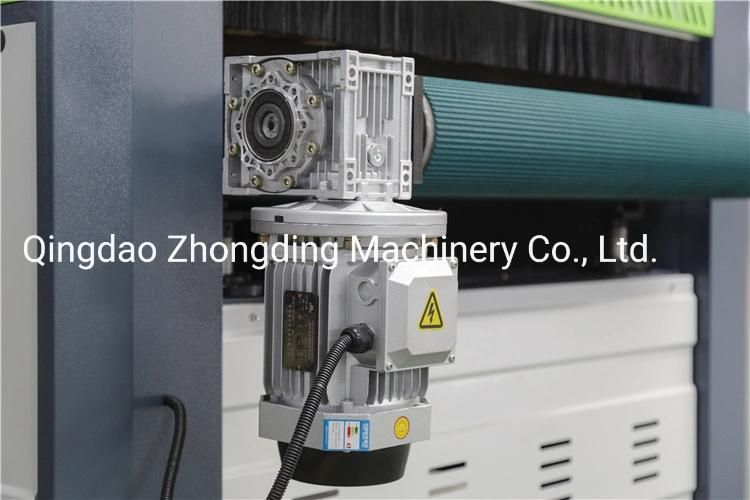

The imported frequency converter is used to control the feeding speed, polishing discs speed of the
Polishing roller. Operation is stable to ensure the polishing effect.


The sanding head adopt quicy-changing interface, changes quickly and easily.

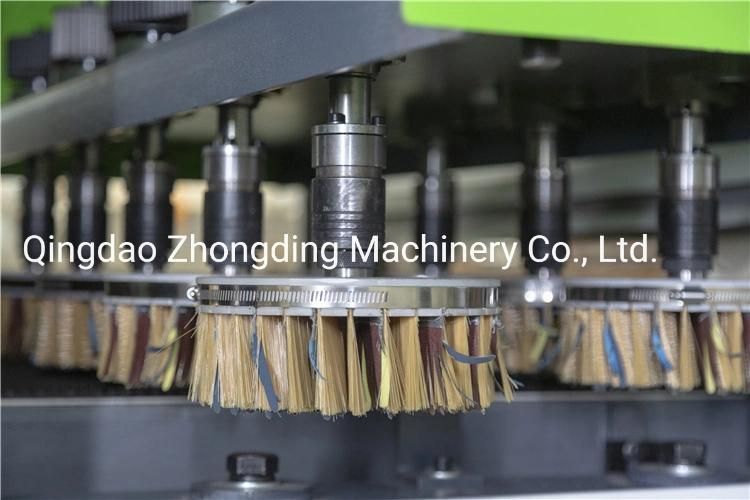

Sanding disc is mainly for material groove, side edges, hollow and so on.

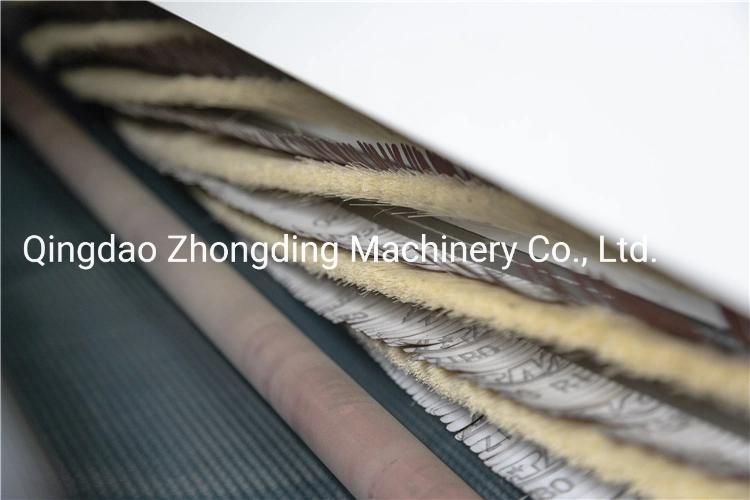

Straight roller is mainly for upper surface.

Cetificate:








WOOD BRUSH SANDING MACHINE USED FOR SOLID WOOD PANEL POLISHING AFTER ENGRAVING, TO MAKE THE SURFACE OF THE WORKPIECE MORE SMOOTHLY.
IT HAVE 6 LINES OF ROLLERS, FOR THE SURFACE POLISHING, THE PROFILE SIDE POLISHING, FOR THE CONCAVE SURFACE POLISHING.
