Mini Desktop CNC Router Cutting Machine for Alumnium Acrylic Metal

Jinan Chanke Mechanical Equipment Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Manual
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Model NO.：ck300
  • Customized：Customized
  • Condition：New
  • Color：Red
  • Working Size：300X300mm
  • Machine Colour：Red or as Your Choice
  • Water Cooling Spindle Power：1.5kw
  • Rotary or Not：It Can But as Custom′s Choice
  • Motor：Stepper Motor
  • Compatible CAD/Cam Softwares：Type3 , Artcam ,
  • Working Voltage：AC220V50Hz or as Your Local Coltage
  • Work off-Line：off Line Working DSP
  • Accessories：Collets, >20 Cutterser25
  • Lathe Bed：Steel Lathe Bed
  • Transport Package：Plywood Packing
  • Specification：iso ,SGS,FDA,CE
  • Trademark：chanke
  • Origin：Shandong
  • HS Code：84789999
  • Production Capacity：50sets,Months

Description


1Machine bodyWhole cast iron2Work dimensions300 x 300 x 45mm3Body dimensions600 x 600 x 600mm
4
Z-axis working area45mm5Max. Feeding height60mm or bigger6Cut thickness of material<20mm7Max.Speed4, 200mm/min8Working speed0 - 3, 000mm/min9Mechanical precision0.01mm10SoftwareType 3 software, Artcut software, Artcam software11Max. Power consumption900W12Power supplyAC 220/50Hz for your need13Driver typeStepper motor14Memory1MB15Spindle1.5KW variable speed, water cooled motor16Spindle speed0 - 24, 000rpm17Blade diameter1 - 6m18Control systemArtcut or Wei hong  (NCSTUDIO) or DSP (USB interface)19CommandG code, u00, mmg, plt20InterfaceRS23221English LCDyes22Running circumstance temperature0 - 45 °c23Relative humidity30% - 75%
 It is convenience for you to take this machine to move. it can engrave on the acylic mdf jade stone and double color board and so on.

Machine samples:

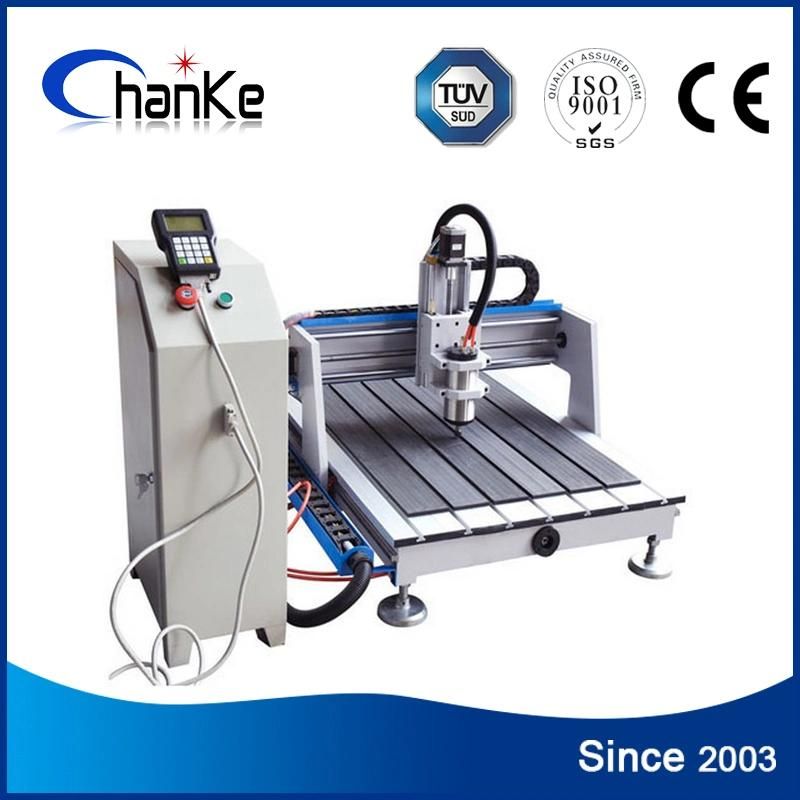

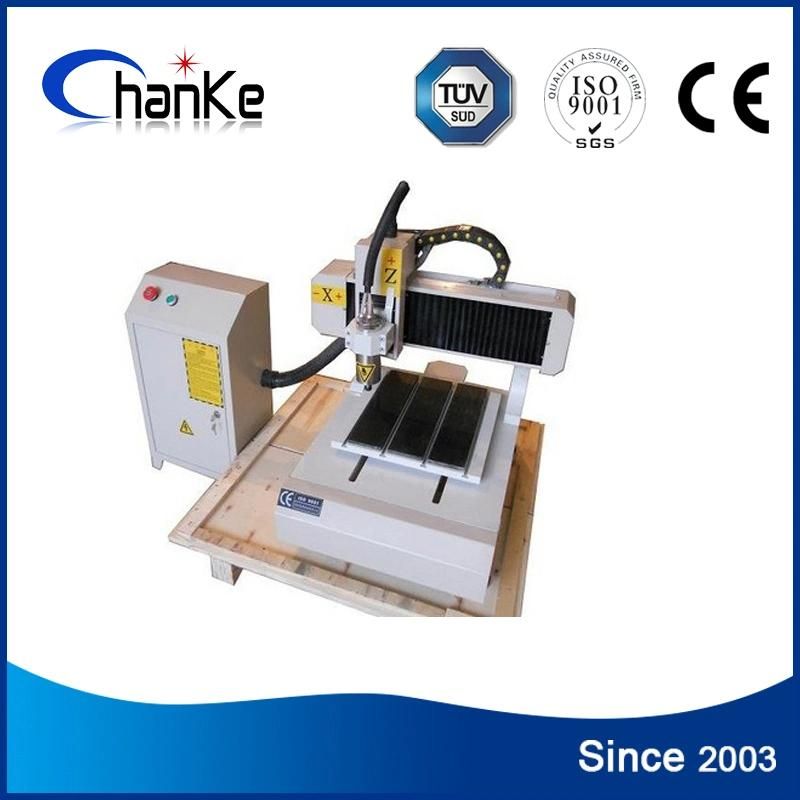

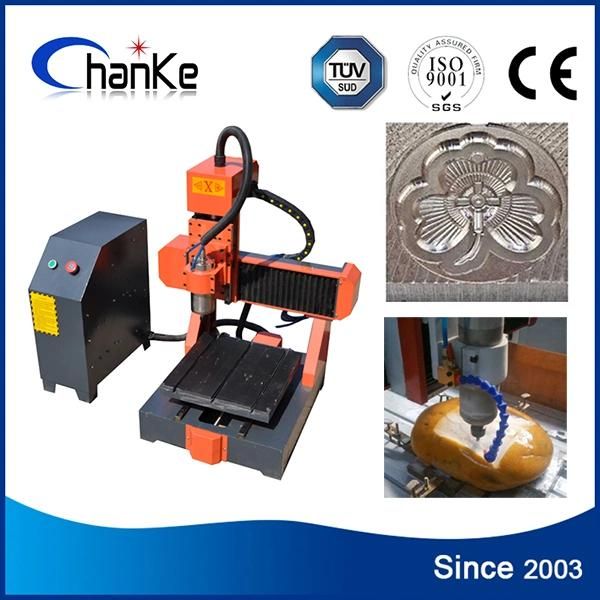

Mini Desktop CNC Router Cutting Machine for Alumnium Acrylic Metal
Mini Desktop CNC Router Cutting Machine for Alumnium Acrylic Metal
Mini Desktop CNC Router Cutting Machine for Alumnium Acrylic MetalMini Desktop CNC Router Cutting Machine for Alumnium Acrylic Metal
