New Design 4 Axis Wood CNC Router with Rotary Axis
Jinan Chanke Mechanical Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Transport Package：Plywood Packing
- Specification：3200x2800x500mm
Base Info
- Model NO.：CK1325
- Trademark：CHANKE
- Origin：Shandong China
- HS Code：8465990000
- Production Capacity：500
Description
Basic Info.
Model NO. CK1325 Trademark CHANKE Origin Shandong China HS Code 8465990000 Production Capacity 500Product Description
New Design 4 Axis Wood CNC Router with rotary axisApplication of 4 axis cnc router
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
Brief Introduction of 4 axis cnc router
♦ The spindle can rotated 180 degree, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.
♦ It can be used for mass-processing with Vacuum holding way and dust collector.
♦ Equipped with top quality components for the machine, such as HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,
Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.
* Equipped with 400mm rotary axis
Technical parameters of 4 axis cnc router
| Description | Parameter |
| X,Y,Z axis working area | 2500* 1300*1000mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table surface | Vacuum Combined T-slot |
| Frame | Big steel tube structure |
| Control system | NK260/NK280/ Syntec 6MA/ Synetc 6MB |
| Spindle Power | 9.0KW HDQ / HSD air cooled spindle |
| spindle rotating speed | 24000r/min |
| Tool type | Linear type |
| Guide rail | HIWIN square guide rail |
| Motor | AC Yaskawa servo motor |
| Max. Power Consumption | (Without Spindle) 4.5Kw |
| Max. Rapid Travel Rate | 50000mm/min |
| Max. Working Speed | 30000mm/min |
| working voltage | AC380V/3PH/50HZ |
| Command Language | G Code |
| Computer Interface | USB |
| Operational System Software | Type 3/Artcam |
| Gross Weight | 1900KG |

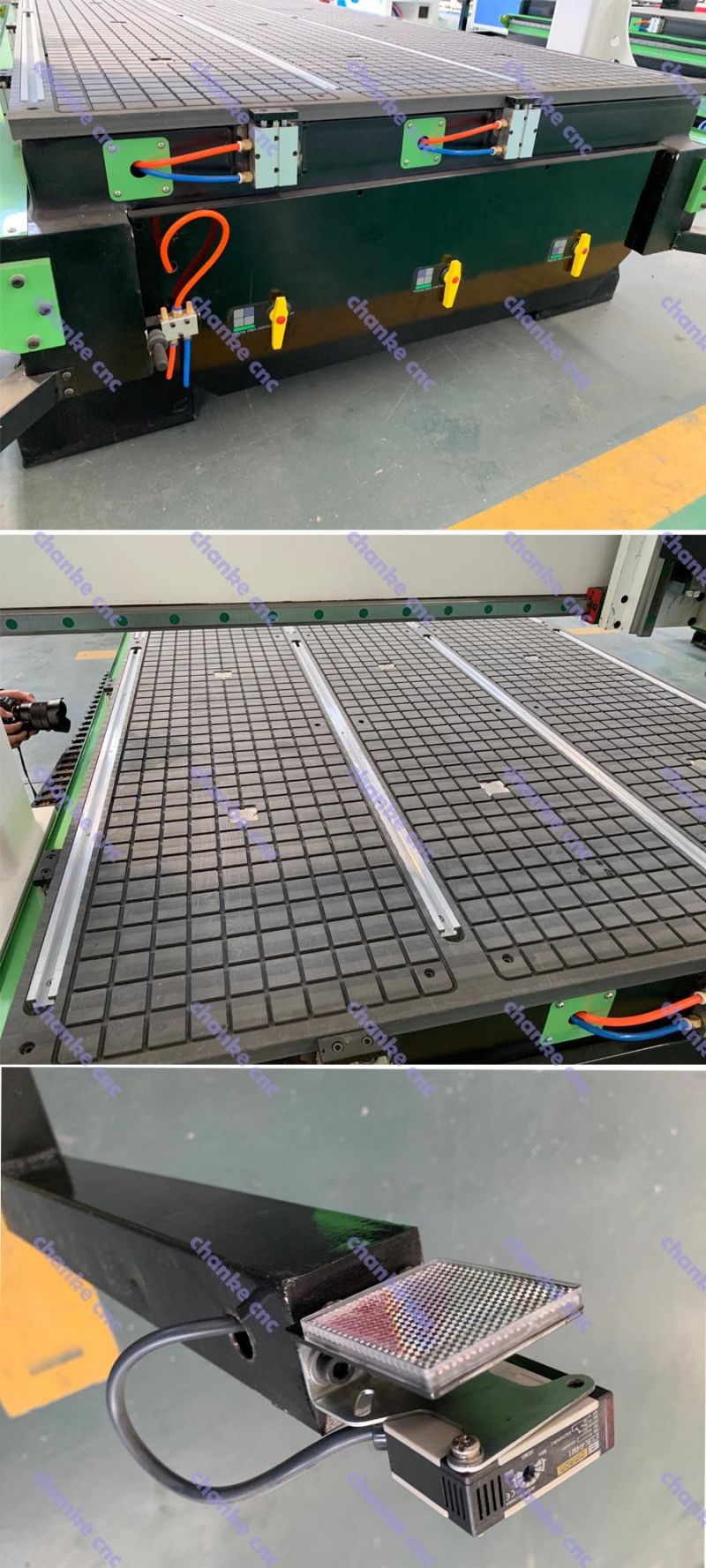

Main allocation and parts pictures of 4 axis cnc router
Taiwan SYNETC control system
Taiwan Delta inverter
Italy 9KW HSD air cooling spindle
400mm rotary axis
Japan YASKAWA servo motor and driver
Taiwan TBI ball screw tansmission
Turntable tool changer
Gear reducer
5.5KW vacuum pump
Tool setting gauge
Centre automatic lubrecation system
Control box
Germany Schneider electrical component
