Double Side Planer Woodworking Automatic Double-Side Planer

Qingdao Samac International Trading Co., Ltd.
  • Warranty：1 Year
  • Type：Double-sided Pressure Planer
  • Working Depth：9-200mm
  • Working Width：10-470mm
  • Motor Power：＞10Kw
  • Spindle Speed：＞5000rpm

Base Info

  • Model NO.：RMB470B
  • Process Type：Heavy Processing
  • Certification：CE
  • After-sales Service：1 Year
  • Cutting Spindle Dia.：100mm
  • Feeding Speed：7-13m,Min
  • Transport Package：Soft Packing & Plywood Packing
  • Specification：RMB470B
  • Trademark：SAMACH
  • Origin：China
  • Production Capacity：200 Sets,Month

Description

Basic Info.

Model NO. RMB470B Process Type Heavy Processing Certification CE After-sales Service 1 Year Cutting Spindle Dia. 100mm Feeding Speed 7-13m/Min Transport Package Soft Packing & Plywood Packing Specification RMB470B Trademark SAMACH Origin China Production Capacity 200 Sets/Month

Product Description

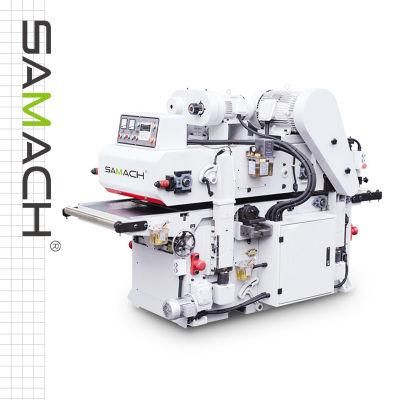

Double Side Planer Woodworking Automatic Double-side Planer
Double Side Planer Woodworking Automatic Double-Side Planer
ModelRMB470ARMB470B
Working thickness9-200mm9-200mm
Working width10-470mm10-470mm
Min. working length300mm(200mm)300mm(200mm)
Max. cutting depthUpper:5mm, Bottom:5mmUpper:5mm, Bottom:5mm
Cutting spindle dia.Ф100mmФ100mm
Cutting spindle speed5000r/min5000r/min
Feeding speed3-24m/min7-13m/min
Top Spindle Power7.5kw7.5kw
Bottom spindle Power5.5kw5.5kw
Feeding motor power2.2kw(VFD)2.2kw
Lifting motor power0.37kw0.37kw
Total power15.57kw15.57kw
Dust exit dia.Ф150mmФ150mm
Cutter HeadSpiralSpiral
Overall size(mm)2650*980*1800mm2650*980*1800mm
Net weight2200kg2200kg
Double Side Planer Woodworking Automatic Double-Side PlanerDouble Side Planer Woodworking Automatic Double-Side PlanerDouble Side Planer Woodworking Automatic Double-Side PlanerDouble Side Planer Woodworking Automatic Double-Side PlanerDouble Side Planer Woodworking Automatic Double-Side Planer1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
