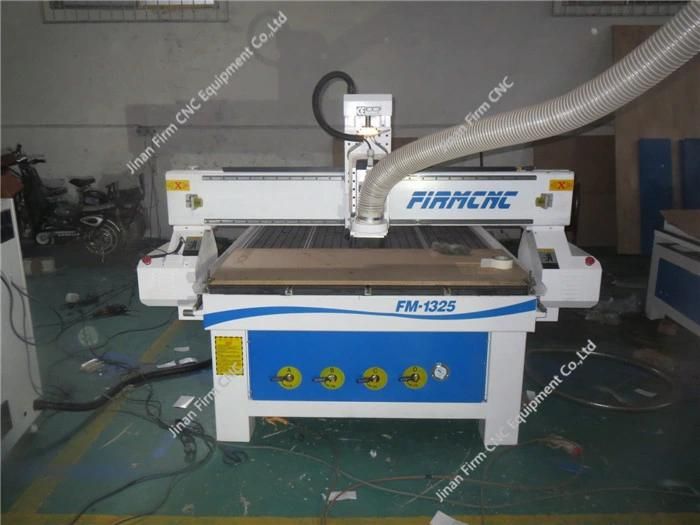

Woodworking Processing CNC Router Wood Engraving Cutting Carving Machine

Jinan Firm CNC Equipment Co., Ltd.
  • Condition：New
  • Certification：ISO, CE, SGS
  • CNC or Not：CNC
  • Machine Size(mm)：Machine Size
  • Engraving Area：1300*2500*200
  • Spindle Power：3.0kw Water Cooling Spindle

Base Info

  • Model NO.：FM1325
  • Spindle Rotate(Rpm)：6000~24000
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Manual
  • Controlling Mode：CNC
  • Customized：Non-Customized
  • Transport Package：Standard Export Wooden Case
  • Specification：CE, SGS, ISO
  • Trademark：FIRM
  • Origin：Shandong, China
  • Production Capacity：30 Sets,Month

Description

Basic Info.

Model NO. FM1325 Spindle Rotate(Rpm) 6000~24000 Type Engraving Router Spindle Layout Spindle Over Spindle Number Single-Spindle Feed Mode Manual Controlling Mode CNC Customized Non-Customized Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRM Origin Shandong, China Production Capacity 30 Sets/Month

Product Description

Woodworking Processing CNC Router wood engraving cutting carving machine

Main Feature

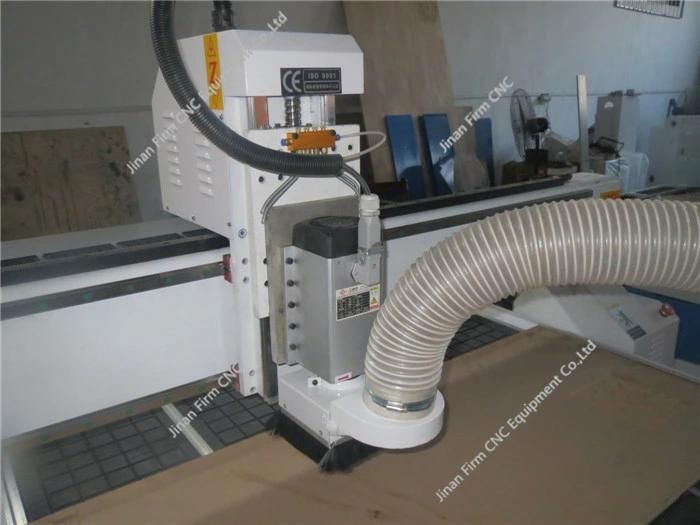

1.3.0KW constant water cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2.Thicken square pipe structure, well welded,no distortion for whole structure.
3.Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4.DSP controller system with USB interface, working without connecting with computer during working and easy to control.
5.This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other
G-code format generated by CAD/CAM
6.Adopt high speed step motor Max speed is 20M/MIN.
7.Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

Technical Date
BrandFIRMCNC
ModelFM1325
Engraving area1300*2500*200
Working FormFull-automatic
Spindle Power3.0kw constant water cooled spindle
Spindle Rotate (rpm)24000rpm/min
Motor DriverHigh speed step motor (optional servo motor )
Transmission SystemImported ball screw or high accuracy gear rack
Guide rail Imported square rail
Mechanical Accuracy<0.03/300mm
EngravingSpeed (mm/min)10-20m/min
Contorl system DSP CONTROL (optional Mach3 NCstudio contol)
Tool Diameter (mm)Ø3.175,Ø4,Ø6, Ø12.7mm
Machine StructureIndustry square tube structure
Data TransmissionPC connect
Support FormatG code or HPGL
Working Voltage380V/3P/50Hz
Range of ApplicationWoodworking relief engrave ,Cutting , Hollow
Machine Net Weight1200Kg

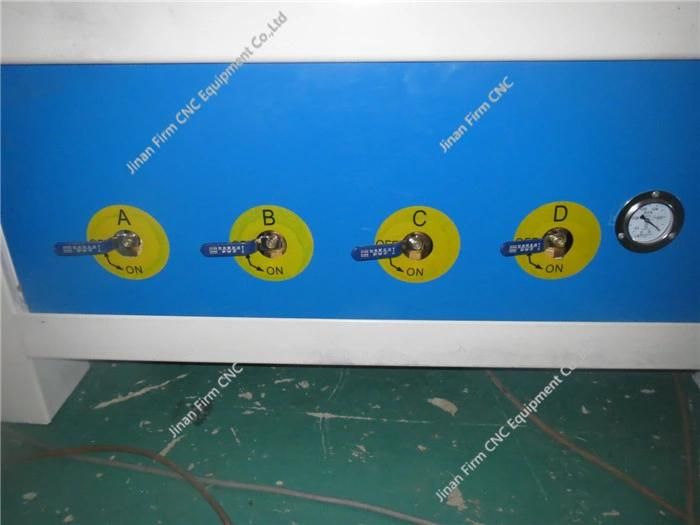

Main parts
Woodworking Processing CNC Router Wood Engraving Cutting Carving Machine
Woodworking Processing CNC Router Wood Engraving Cutting Carving Machine
Woodworking Processing CNC Router Wood Engraving Cutting Carving Machine

Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Woodworking Processing CNC Router Wood Engraving Cutting Carving Machine

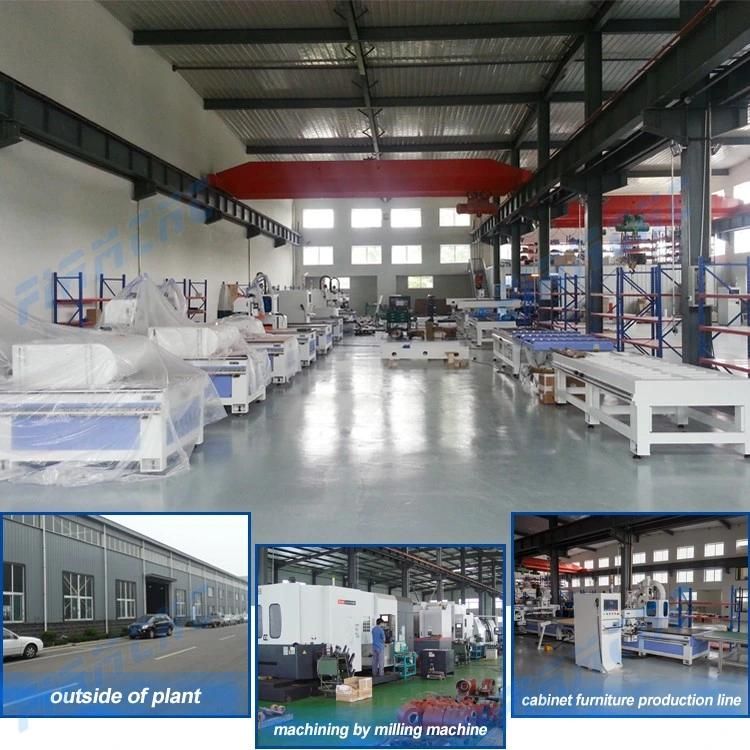

Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.
Woodworking Processing CNC Router Wood Engraving Cutting Carving Machine
Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

If you are interested, please contact us:
JINAN FIRM CNC EQUIPMENT CO.,LTD
Huayuan Road, Licheng District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330
Fax: 0086-0531-69986330
Contact person :
Nancy

Cell phone: +86-13156199970
