Solid Wood Molding Profile Planing Moulding Machine Four Sided Planer Moulder
Shandong STX Machinery Trade Co., Ltd.- Warranty：18 Months
- Type：Four-Side Planer
- Working Depth：100-200mm
- Working Width：160mm
- Drivetrain：Feed Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：M616
- Motor Power：＞10Kw
- Cutter Shaft：6
- Spindle Speed：＞5000rpm
- Process Type：Heavy Processing
- Certification：CE
- After-sales Service：Online Service
- Color：Standard
- Advantage：Long Service Life
- Application：Woodworking Factory
- Function：Planer and Moulder
- Extra Support：Roller Conveyor

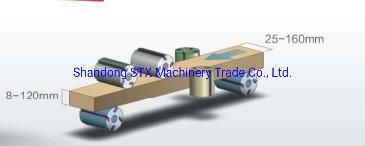

- Working Thickness：8-120mm
- Max. Working Width：160mm
- Spindle Qty.：6
- Transport Package：Steel Pallet
- Origin：China
- HS Code：846592
- Production Capacity：2000 Sets,Year
Description
Other Parameters Feeding wheel diamter 140mm Overall dimension Dust outlet diameter 140mm Machine weight 3150kg Moveable working table on the last bottom spindle, Making easy working on changing cutters Package & Delivery Since established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China3690*1400*1680mm
Detailed Images

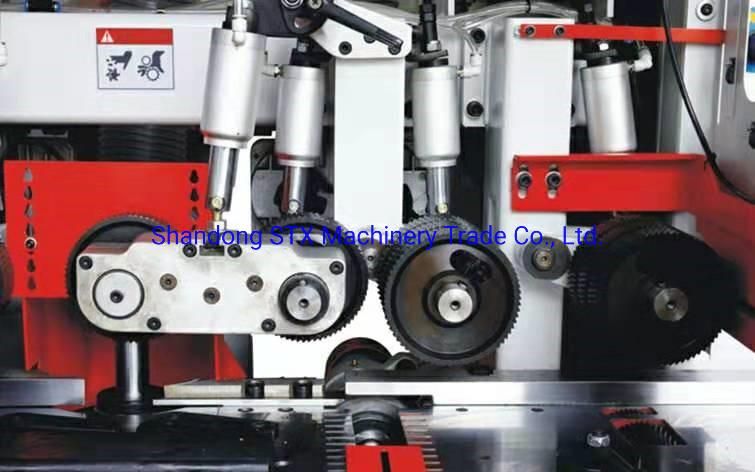

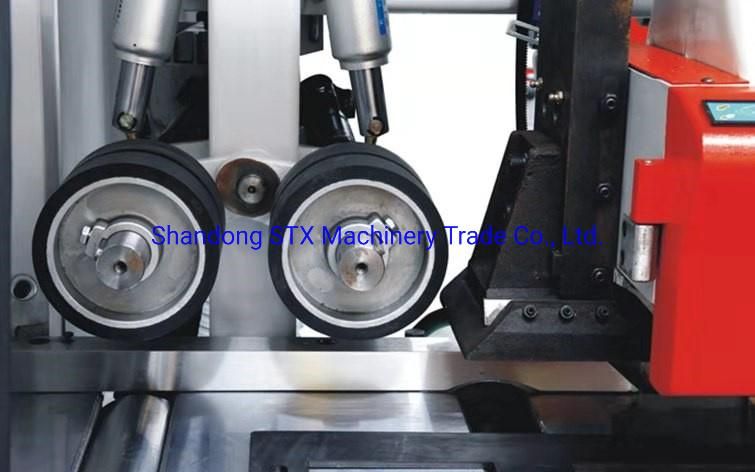

Rapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated

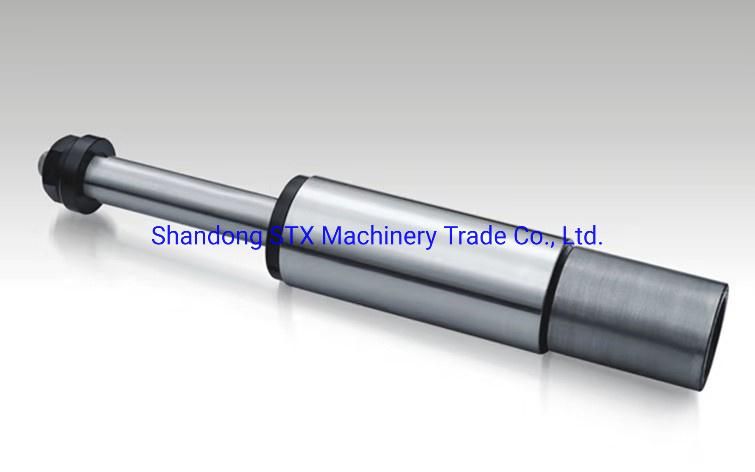

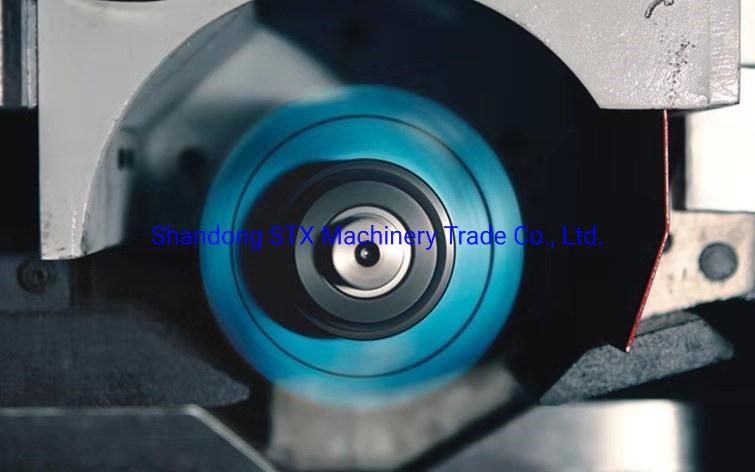

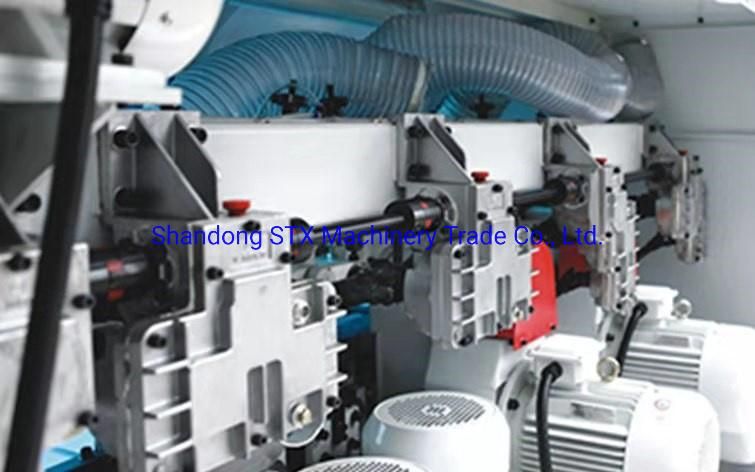

Heavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracy Every spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughness

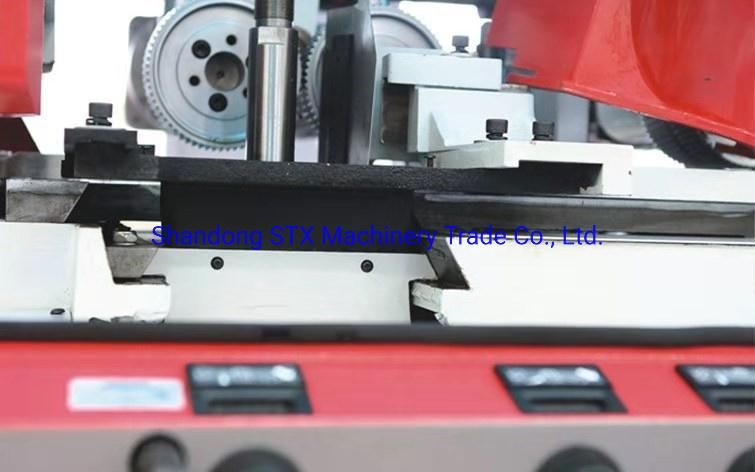

Double-deck working table on left and right spindle, guaranteed working verticality Front and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working table

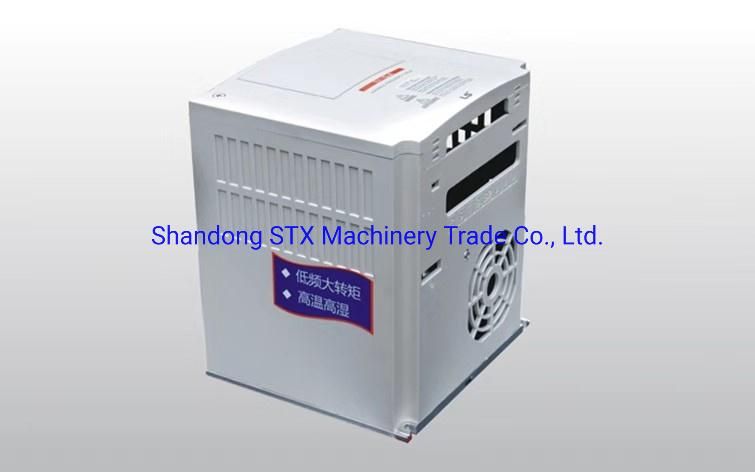

Feeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.

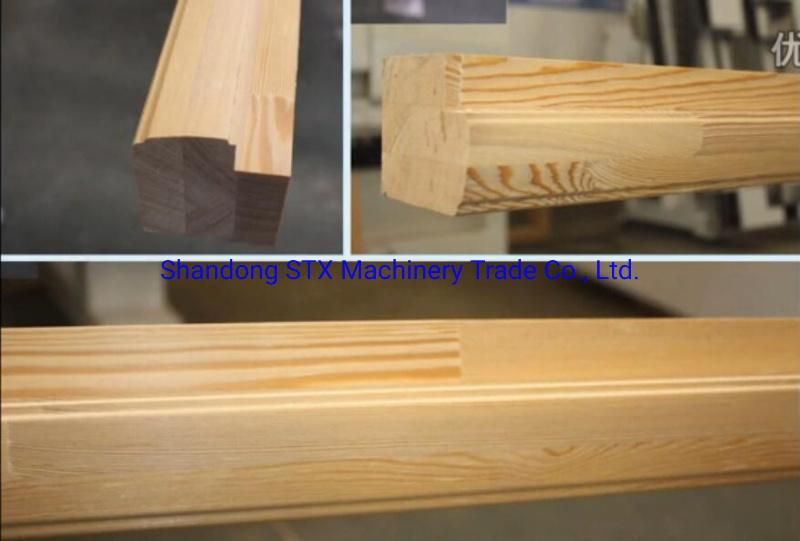

Processed effect
