• Model NO.：R6A
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Banding Type Thickness：0.4-3mm
• Banding Type Width：12-65mm
• Heating Power：1.8kw
• Feeding Motor Power：3.7kw
• Air Pressure：0.8MPa
• Overall Dimension：4940*900*1500mm
• N.W：1600kgs
• Transport Package：Wood Case
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659900
• Production Capacity：200sets,1month

Basic Info.

Model NO. R6A Certification CE, ISO Customized Customized Condition New Color Customized Banding Type Thickness 0.4-3mm Banding Type Width 12-65mm Heating Power 1.8kw Feeding Motor Power 3.7kw Air Pressure 0.8MPa Overall Dimension 4940*900*1500mm N.W 1600kgs Transport Package Wood Case Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 200sets/1month

Product Description

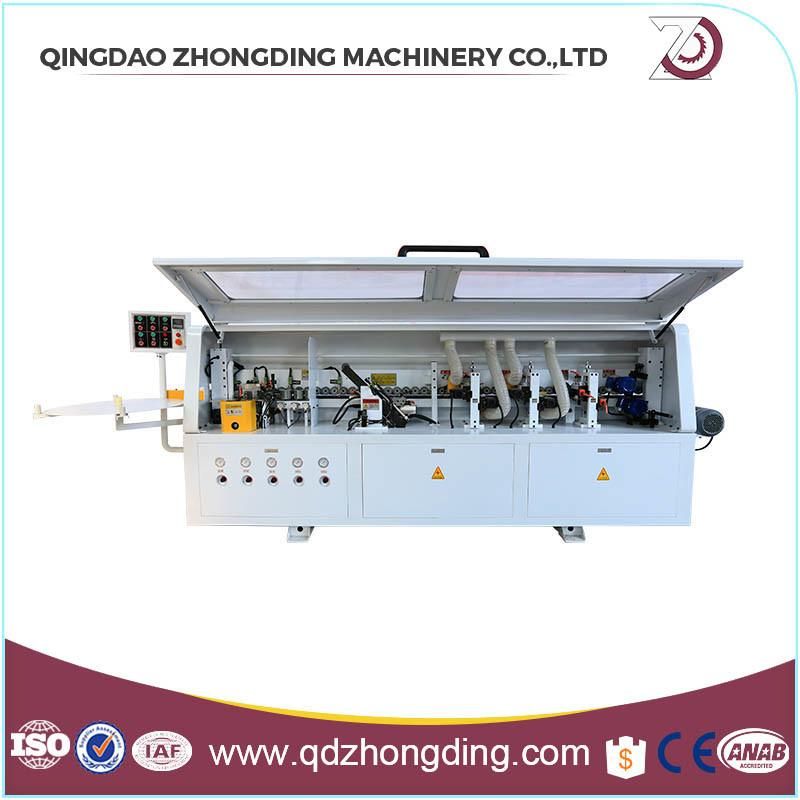

R6AAutomatic Edge Banding Machine

Basic Info

Model NO.: R6A                                                                                                    Panel Thinkness: 10-60mm
Min.length panel: 100mm                                                                                        Min.width panel: 50mm
Manufacturing Principles: Glue Tank Overhead                                                     Customized: Customized
Heating Power: 1.8kw                                                                                             Feeding Motor Power: 3.7kw
Pre-Milling Motor Power: 1.5kw*2                                                                           Glue Spreading Motor Power: 0.37kw
End Trimming Motor Power: 0.55kw*2                                                                     Rough Trimming Motor Power: 0.75kw*2
Fine Trimming Motor Power: 0.75kw*2                                                                  Corner Rounding Motor Power: 0.5kw*2
Polishing Motor Power: 0.18kw*2                                                                           Air Pressure: 0.7MPa
Trademark: QDZD                                                                                                  Transport Package: plywood box
Specification: 3CBM                                                                                                Origin: Qingdao
HS Code: 84659400


Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
Profiling unit is to make the board ending more smooth and aesthetic
Scraping unit is for a perfect finishing of the applied edge.
The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.

Type	R6A
Banding tape thickness	0.4-3 mm
Banding tape width	10-60 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.5 KW
Feeding motor power	2.2 KW
Glue spreading power	0.37 KW
End trimming power	0.55 KW x 2
Rough trimming power	0.75 KW x 2
Fine trimming power	0.75 KW x 2
Polishing motor power	0.18 KW x 2
Feeding speed	13 m/min
Air pressure	0.7 Mpa
Total Power	6.23 KW
Overall dimension	4500x900x1500 mm

Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.

This is Carrie:+8618363917183
