• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Semiautomatic
• Certification：CE, ISO, FDA
• Transport Package：Standard Export Packing
• Specification：10 ton
• Trademark：metro
• Origin：China
• HS Code：847930000
• Production Capacity：500 Sets,Year

Basic Info.

Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE, ISO, FDA Transport Package Standard Export Packing Specification 10 ton Trademark metro Origin China HS Code 847930000 Production Capacity 500 Sets/Year

Product Description

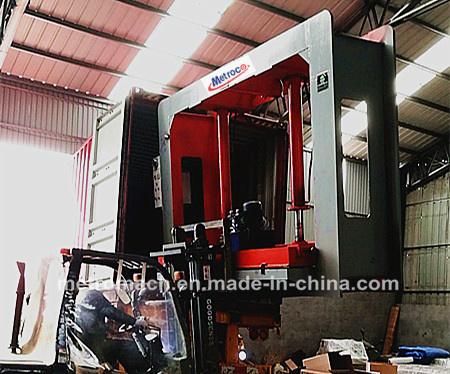

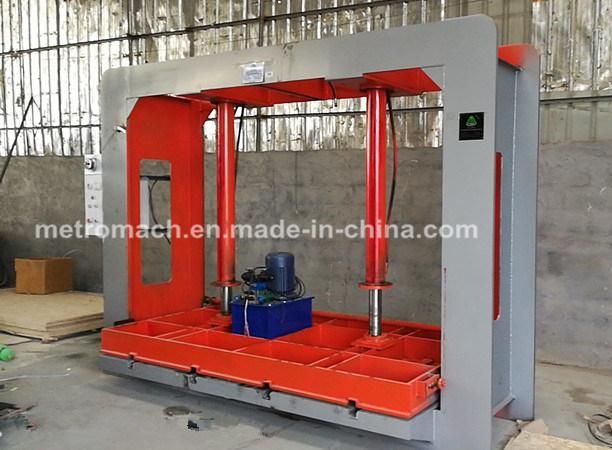

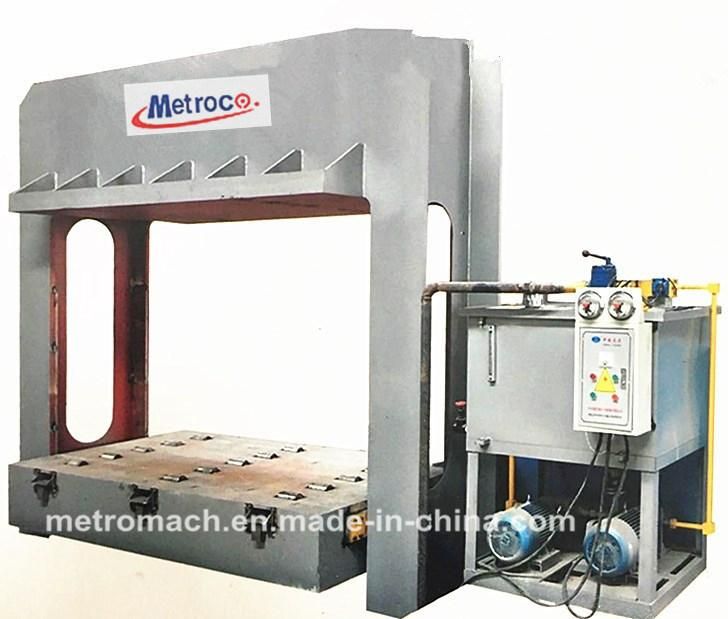

PHOTOS SHOW:











CHARACTERISTICS:

  The cold press is mainly used for cold pressing the pasted veneer for a period of time to make it preliminarily formed and then sent to the hot press for hot pressing and bonding. It is an important equipment and an important link for improving the quality of plywood.

  1.The main frame is welded with high quality national standard steel plate.our products have high quality with simple structure, reasonable design, high rigidity, good strength and great bearing pressure.

  2.Domestic high-quality oil cylinder is adopted, and imported hydraulic parts are adopted for main components, which ensures j's long service life.

  3.It has automatic hydraulic control system, accurate pressure control, short pressure cycle, high working efficiency.

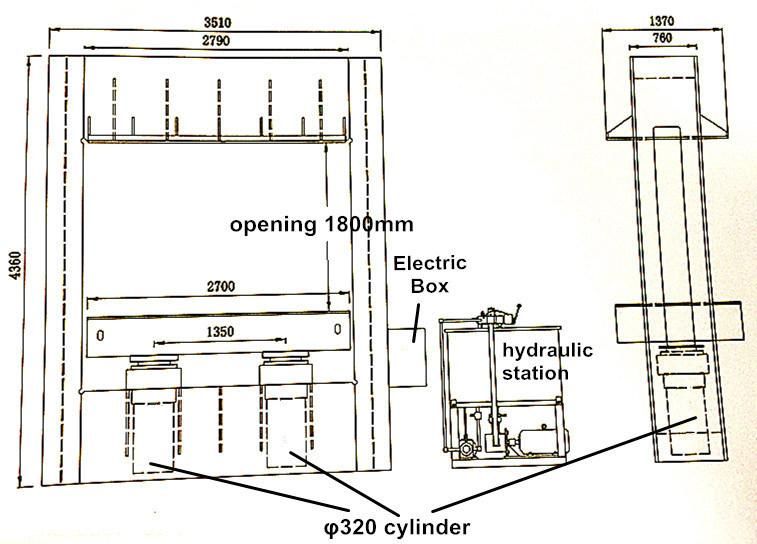

SPECIFICATION:


pressure	400 KN
Diameter of the main cylinder	Φ320mm x2
Numbers of cylinder	2pcs
Stroke of cylinder	800mm
Pressure upon products (max)	10-11Kgf/cm²
Net weight	10000kg
Overall dimensions	3510x1370x4310mm
size of products	4 x 8 ft
activty of beam (L x W)	2700 X 1700
Activity of space	1800mm
hydraulic of power	15kw

CERTIFICATES:






SERVICES:

PRE-SALE SERVICES:

1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

SERVICE DURING THE SALE:

1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

AFTER SALE SERVICES:

1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
