• Model NO.：BXQ18-27,D+A
• Origin：Linyi City, China
• HS Code：8465960000
• Production Capacity：500sets,Year

Basic Info.

Model NO. BXQ18-27/D+A Origin Linyi City, China HS Code 8465960000 Production Capacity 500sets/Year

Product Description

Product Description8FT Plywood Log Debarker Rounder Machine1. Product Featuresa.Tree bark,cylindrical dressing.
b. Hydraulic feed,strong power.
c. Hardened gear reducer is more durable.
d. No trembling of the whole frame structure.
 2. Technical Parameters:

Name	Unit	Parameter
Log diameter	mm	Max600mm--Min80mm
Log Length	mm	2000mm--2700mm
Thickness Range	mm	Min1.0mm--Max4.0mm
Line Speed	m/min	Constant Speed
Roll Power	KW	Double Roller Motor 7.5kw+7.5kw Single Roller Motor 7.5kw+7.5kw Feed Cyclinder Motor 5.5kw
Reducer Model	R87	The main engine adopts r bevel gear reducer
Size	mm	5500mm--1900mm--1500mm
Weight	kg	7000kg
Production Efficiency	8h	200mm Debaker 120m³ 300mm Debaker 150m³ 400mm Debaker 200m³ 500mm Debaker 260m³

3. Service:

1. We supply the complete wood debarking and peeling line according to customer's production demand, the line can be fully automatic or semi-automatic.
2. All the machines have 12 months guarantee period since from date of shipment, we supply the lifetime after-sales service and information consult.
3. Our after-sales team is consisted of 20 professional people, they all have passports and have already installed many sets of machines in different countries, they can not only install and run test the machines in customer's factory, but also can teach your workers how to operate our machines.
4. Our company will attend most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.

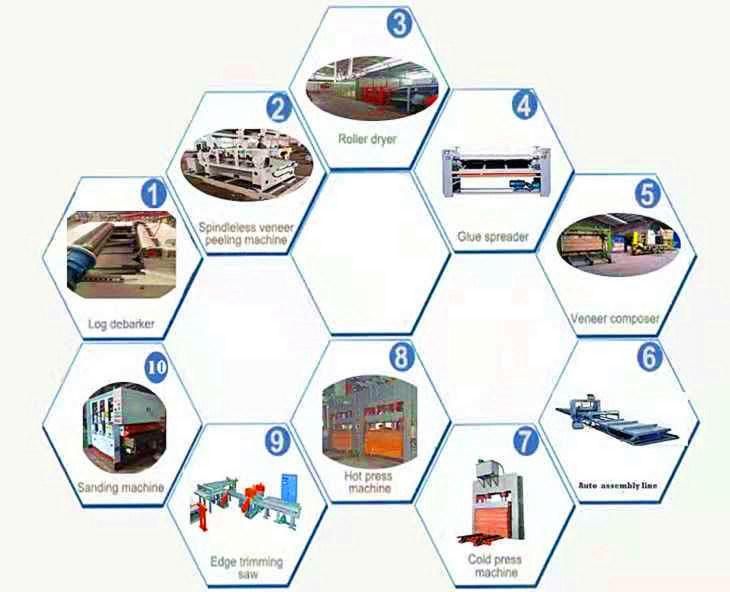

Plywood Complete Making Machine Line
