• Model NO.：ck1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：3 Phases and 220V 50Hz,380V,60Hz
• Head：6 Heads
• Z Axis：Tbi Ball Screw Imported From Taiwan
• Xy：Helical Rack and Pinion From Xy Axis
• Working Size：1300X2500mm
• Structure：8mm Steel Structure of Lathe Bed
• Control Software：DSP or Nc Stuido
• Spindle Power：1.5kw,3kw or More
• Inveter：Delta Inverter
• Rail：Hiwin Square Rail
• Transport Package：Plywood Packing
• Specification：iso ,SGS,FDA,CE
• Trademark：chanke
• Origin：Shandong
• HS Code：847989999
• Production Capacity：50sets,Months

Basic Info.

Model NO. ck1325 Customized Customized Condition New Color Customized Voltage 3 Phases and 220V 50Hz/380V/60Hz Head 6 Heads Z Axis Tbi Ball Screw Imported From Taiwan Xy Helical Rack and Pinion From Xy Axis Working Size 1300X2500mm Structure 8mm Steel Structure of Lathe Bed Control Software DSP or Nc Stuido Spindle Power 1.5kw/3kw or More Inveter Delta Inverter Rail Hiwin Square Rail Transport Package Plywood Packing Specification iso /SGS/FDA/CE Trademark chanke Origin Shandong HS Code 847989999 Production Capacity 50sets/Months

Product Description

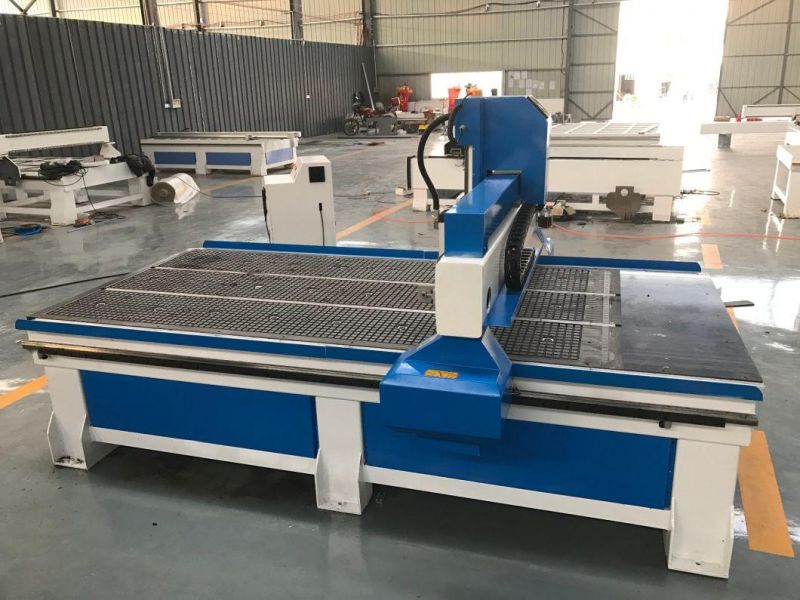

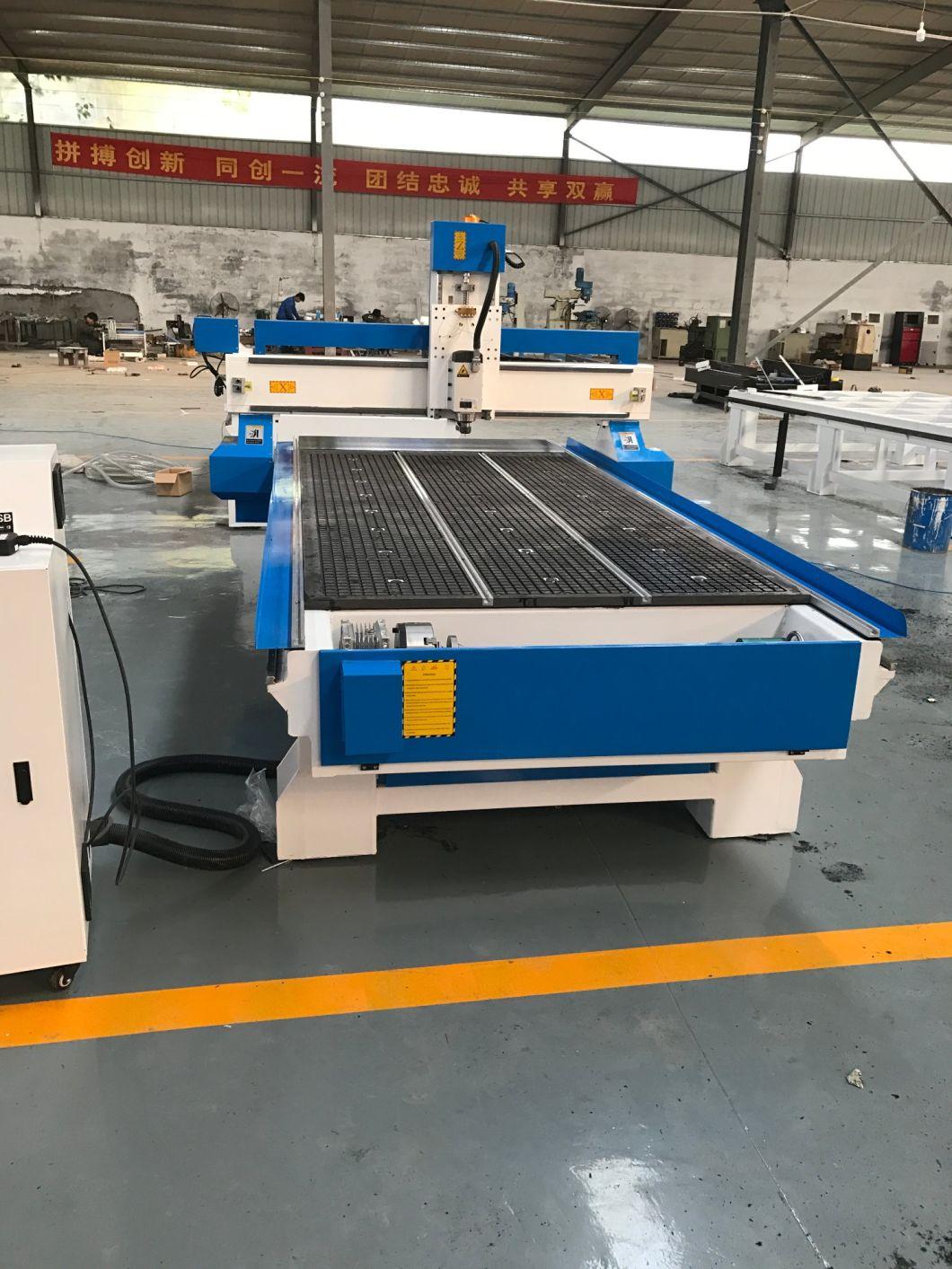

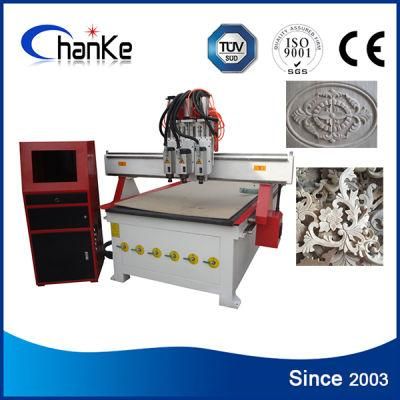

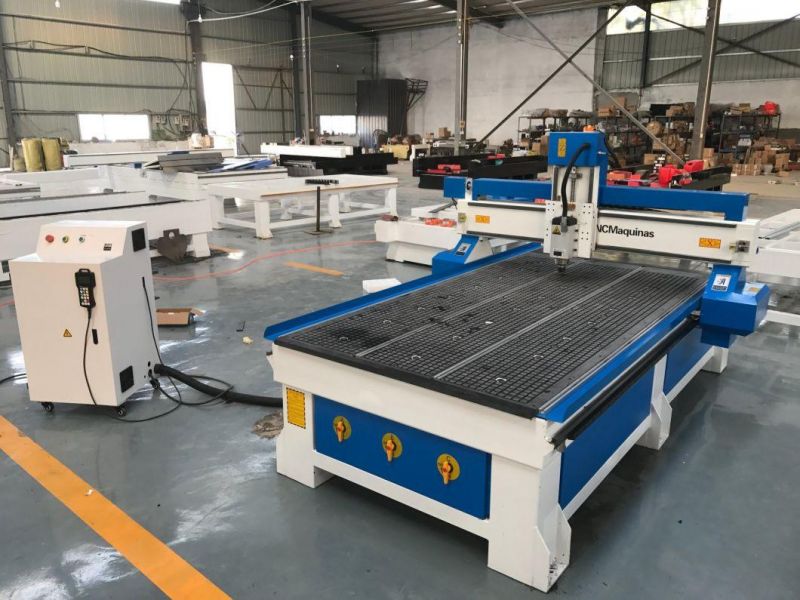

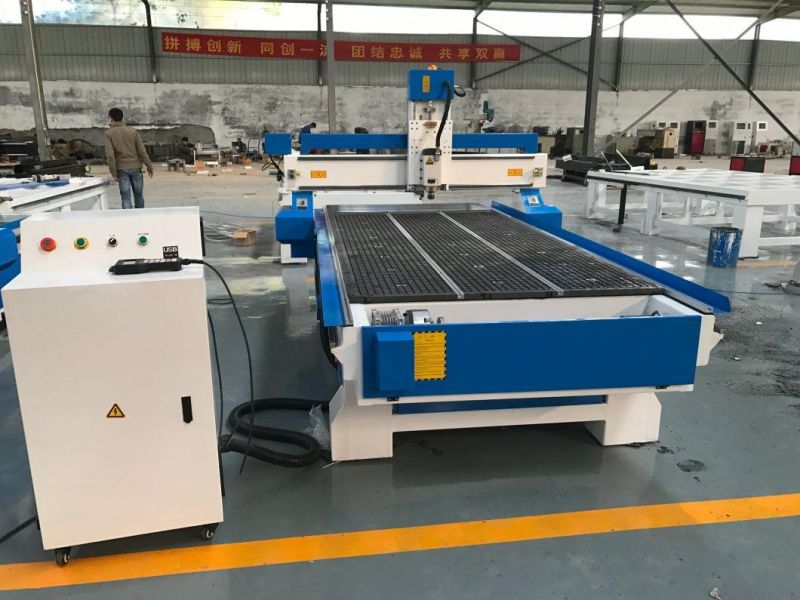

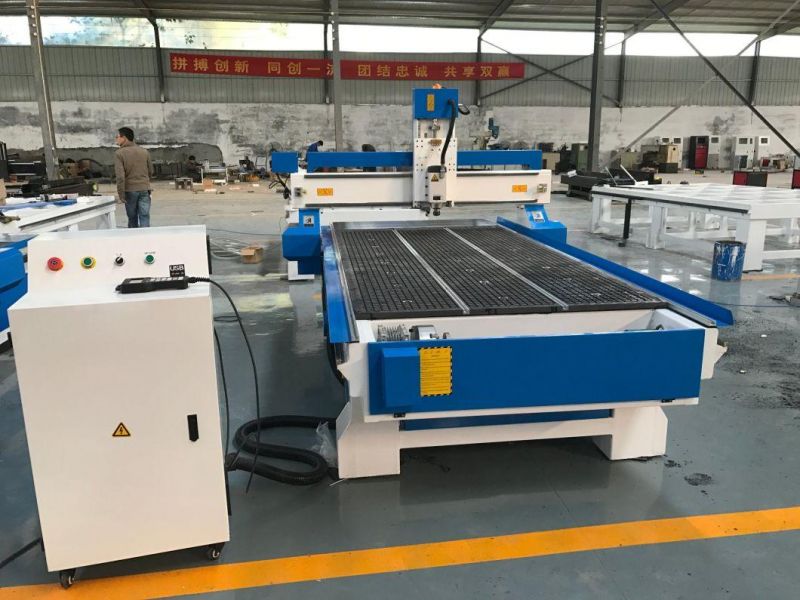

3D Wood router cnc features
This is one type of wood working machine of Jinan chanke mechnical Equipment Co.,LTD . this machine working size is: 1300x2500x200mm, aluminium profile table, has the Tsolt, using the material holders to fasten the mould on the table. It can working on the MDF, wood to make the cabinet door, soild wooden door, computerdesk, assembling desk , it also can engrave on the HDF,wood board, acrylic ,plan cutting, 3D embossment

3.0KW Chinese water cooling spindle, we aslo have the HSD air cooling spindle. as your choice. XY gear transmission, Z Taiwan ball screw transmission. Weihong NK105 DSP control system, leadshine stepper motor, or Servo motor driving system, Fuling inverter.

we have vacuum table wood cnc router, 8 pieces of head wood cnc router, ATC cnc router.. All kinds of machines are one goal is to service and convenience for the users.

So welcome to contact us when you need wood working machines on the wooden , MDF doors or the furniture..

Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor.... so don't hesitate contact us !

  Technical data :

Brand	chanke
Model	CK1325 3D Wood router cnc
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg
