• Model NO.：BJ814X8,4-I
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO
• Plunger Cylinder Diameter：Φ 320mm Made in Wuxi X2PCS
• Transport Package：Standard Export Packaging or as Per Your Request
• Specification：400T, 500T, 600T
• Trademark：METRO MACH
• Origin：Shandong, China

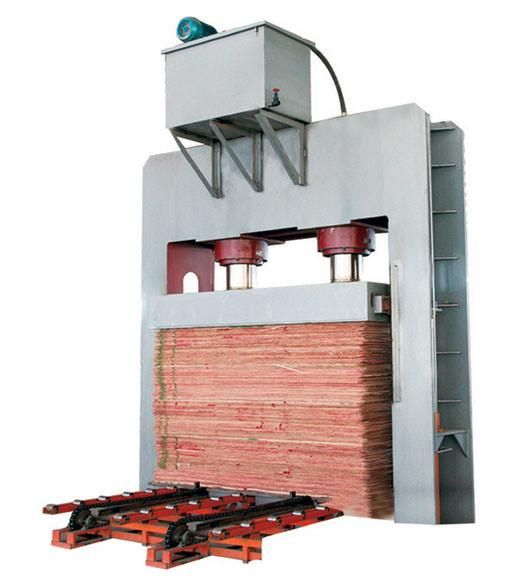

Machine modelBJ814X8/4-INominal gross pressure4000KN/400TONSBoards in-feeding directionHorizontalMax.opening1600mmWorking platform dimension(LxW)2700x1380mmDiameter of main plunger oil cylindersΦ320mmNumber of main plunger oil cylinders2PcsAllowed pressure≤26MpaSide helpful plunger oil cylindersΦ60mm x 2 PcsStroke of main plunger oil cylinders1000mmPosition of main plunger oil cylindersUPSIDEPressure of unit plate blank12kgf/cm2Dimension of the board2560x1280mmMachine net weight17000KgsControl methodAutomatic pumping stationThickness of upper and lower crossbeam900mmThickness of steel plate35mmThickness of active crossbeam400mmThickness of steel plate20mmChain and roller transports deviceoption











Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
