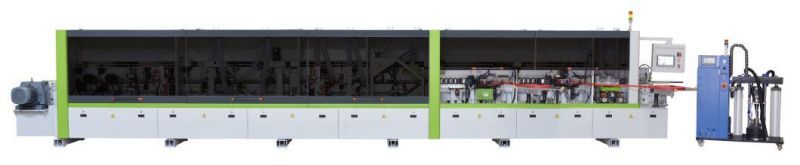

Double Glue Pot Edge Banding Machine for Sale
Qingdao Zhongding Machinery Co., Ltd.- Warranty：Video Technical Support, Online Support
- Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing, Customized
- Type：Straight Line
- Edging thickness：0.15-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：20m,min
Base Info
- Model NO.：ZD450
- Certification：CE, ISO
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Manufacturing Principles：Glue Tank Underneath
- Customized：Customized
- After-sales Service：Overseas Third Party Services
- Transport Package：Wood Carton
- Specification：6730*880*1580mm
- Trademark：ZhongDing
- Origin：China
- HS Code：84659400
- Production Capacity：200 Set,Month
Description
What is PUR edge banding?PUR Glue has always been a much higher quality alternative with glue lines 50 percent thinner and a much stronger adhesion. PUR creates invisible joints that are much more aesthetically pleasing, and the bond holds firm against moisture, water, and heat.
Function: premilling- gluing- end cutting- rough trimming- fine trimming- corner rounding- scraping- buffing.
Edge banding is used to cover the exposed sides of materials such as plywood, particle board or MDF, increasing durability and giving the appearance of a solid or more valuable material. Common substitutes for edgebanding include face frames or molding. Edge banding can be made of different materials including PVC, ABS, acrylic, melamine, wood or wood veneer.
Function: premilling- gluing- end cutting- rough trimming- fine trimming- corner rounding- scraping- buffing.| Type | ZD450 |
| Banding tape thickness/Épaisseur du ruban adhésif | 0.4-3 mm |
| Banding tape width/Largeur de bande de bande | 12-65 mm |
| Work piece thickness/Épaisseur de la pièce de travail | 10-60 mm |
| Work piece length/Longueur de la pièce de travail | >=100 mm |
| Work piece width/Largeur de la pièce de travail | >=50 mm |
| Heating power/Puissance de chauffage | 1.8 KW |
| Feeding motor power/Alimentation du moteur | 3.7 KW |
| Pre-milling/Pré-fraisage | 0.75 KW x 2 |
| Glue spreading power/Pouvoir d'étalement de la colle | 0.75 KW |
| End trimming power/Fin de la puissance de coupe | 0.5 KW x 2 |
| Rough trimming motor power/Puissance du moteur de coupe grossière | 0.75 KW x 2 |
| Fine trimming power/Fine puissance de coupe | 0.75 KW x 2 |
| Corner rounding motor power/Puissance du moteur d'arrondi d'angle | 0.5 KW x 2 |
| Polishing motor power/Puissance du moteur de polissage | 0.37 KW x 2 |
| Feeding speed/Vitesse d'alimentation | 10-23 m/min |
| Air pressure/Pression de l'air | 0.8 Mpa |
| Overall dimension/Dimension globale | 6200x850x1520 mm |
| Packing size/Taille d'emballage | 6300x880x1580 mm |
| N.W. | 2300 KGS |
| G.W. | 2450 KGS |
Edge banding is used to cover the exposed sides of materials such as plywood, particle board or MDF, increasing durability and giving the appearance of a solid or more valuable material. Common substitutes for edgebanding include face frames or molding. Edge banding can be made of different materials including PVC, ABS, acrylic, melamine, wood or wood veneer.
