• Model NO.：xinlihui
• After-Sales Service Provided：24 Hours Technical Support by Email, Call, Video
• Delivery Time：5-7 Days
• Working Experience：Working Experience Our Best Quality for You
• Weight：17kgs
• Belt Speed：4 M,Min
• Transport Package：Carton Box
• Specification：400*360*400mm
• Trademark：XINLIHUI
• Origin：Qingdao City
• HS Code：84659400
• Production Capacity：1000 Per Month

Basic Info.

Model NO. xinlihui After-Sales Service Provided 24 Hours Technical Support by Email, Call, Video Delivery Time 5-7 Days Working Experience Working Experience Our Best Quality for You Weight 17kgs Belt Speed 4 M/Min Transport Package Carton Box Specification 400*360*400mm Trademark XINLIHUI Origin Qingdao City HS Code 84659400 Production Capacity 1000 Per Month

Product Description

hand-held portable edge bander is suitable for the width of edge banding 10-60mm, banding thickness 0.3-3mm, it is the most advanced portable model.


Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

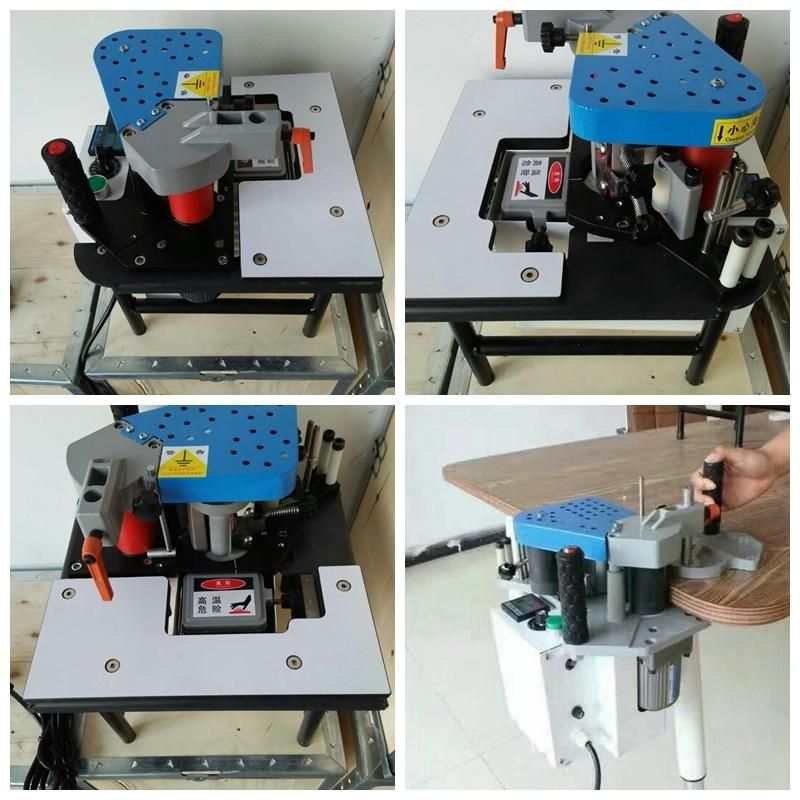

1, Product Show


2, Specification


No.	Technical Specification	010 Ver
1	Thickness of Edge	0.3-3mm
2	Width of Edge	10-60mm
3	Feeding Speed	2-6m/Min
4	Glue Volume	320ml
5	Operating Temperature	120-180° C
6	Pre-heating Time	5-7Min
7	Motor Power	15W
8	Total Power	765W
9	Net Weight (with 15W motor)	8.5kg
10	Gross Weight (single unit in carton)	13.5kg
11	Gross Weight (full set in metal box)	37.5kg
12	Machine Size	300*330*350mm
13	Size (single unit in carton)	330*360*390mm
14	Size (full set in metal box)	430*460*510mm

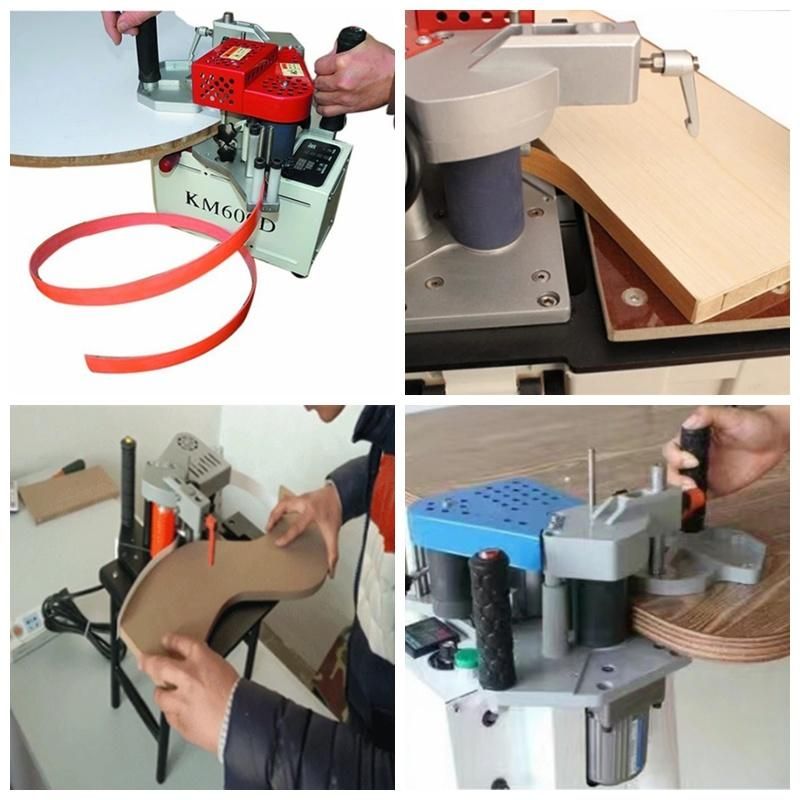

3, Product Detail




4, Features

1. New glue extraction system ensures gluing evenly on edge tapes.

2. Short warming up time, just 5 to 7 minutes.

3. Larger glue tank with little increase in machine weight.

4. Adjustable speed control, feeding tape at speed from 2 to 6 m/min.

5. Longer service life due to improvements on the components.

6. It is suitable for low temperature hot-melt adhesives (melting point below 200`C).

7. It uses integrated circuit, and the speed adjustment is equipped with handle, easier to operate and with best quality.
