Plywood Spindleless Veneer Peeling Machine with Inside Clipper

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Max Length of The Wood：1400mm
  • Working Speed：45~50m,Min
  • Working Diameter Range：22-500mm
  • Veneer Thickness：0.6-5.0mm
  • Machine Weight：4200kgs

Base Info

  • Model NO.：BQS1814,450HK
  • Machine Overall Dimension：3600mmx1900mmx1400mm
  • Transport Package：Standard Export Sea-Worthy Packing
  • Trademark：Metro
  • Origin：China
  • HS Code：8465960000
  • Production Capacity：100set,Month

Description

Basic Info.

Model NO. BQS1814/450HK Machine Overall Dimension 3600mmx1900mmx1400mm Transport Package Standard Export Sea-Worthy Packing Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

China Spindleless Veneer Peeling Machine With Inside Clipper
1.Product Description:
Spindle-less veneer peeling machine is one of the equipment for the production of plywood, which belongs to the mechanical spindleless rotary cutting transmission machine, suitable for lathe cutting remaining wood core to continue into veneer, also can be applied to small diameter wood (diameter 300mm) into veneer.These advantages like those:
1,Processing of the board thickness uniform, surface smooth;
2,reasonable structure, easy operation and maintenance;
3,equipment performance is stable, less wearing parts, long life;
4,saving timber resources.
5,Artificial technical requirements are not high,in the normal peeling the machine,the error in ± 0.1mm

2.Technical Parameters:
Max working length1400mm
Knife size1500mm
Max working diameterΦ500mm
Min working diameterΦ30mm
Veneer thickness range0.6-5.0mm
Roller diameter125mm
Single roller motor5.5KW
Double roller motor11KW
Feed motor5.5KW
Cutting motor1.5KW
Conveyor motor1.5KW
Total power27.25KW
Peeling speed45~50m/min
Overall size3600mmx1900mmx1400mm
Weight4200KGS

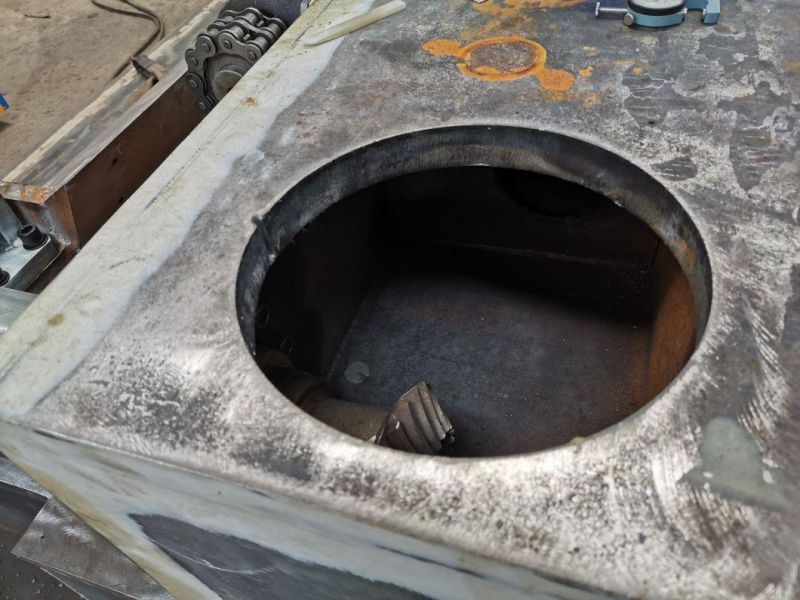

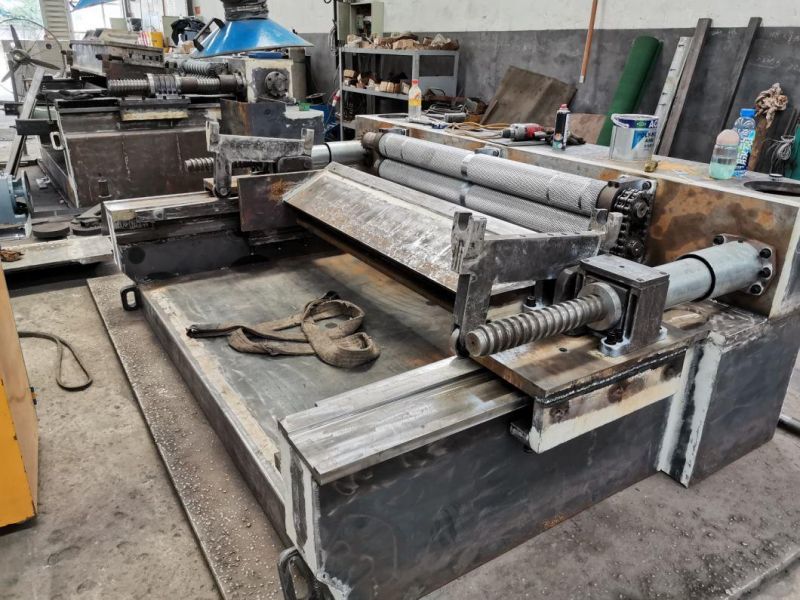

3.Detailed Pictures:
Plywood Spindleless Veneer Peeling Machine with Inside Clipper

Plywood Spindleless Veneer Peeling Machine with Inside Clipper




Plywood Spindleless Veneer Peeling Machine with Inside Clipper
Plywood Spindleless Veneer Peeling Machine with Inside Clipper

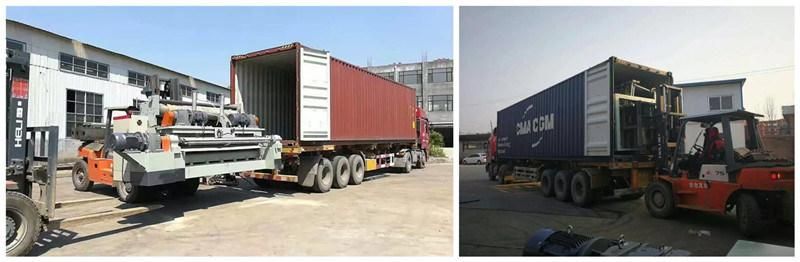

4.Packing and Delivery:
Plywood Spindleless Veneer Peeling Machine with Inside Clipper

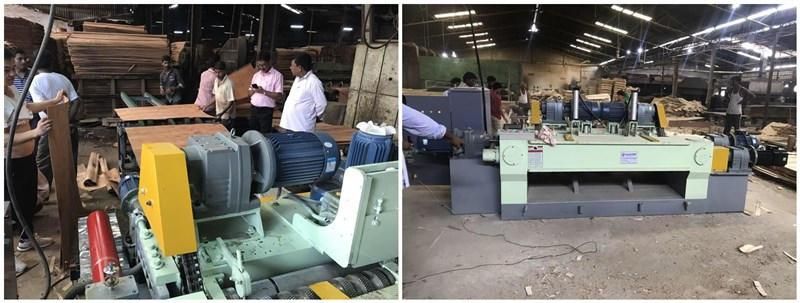

5.Working cases:
Plywood Spindleless Veneer Peeling Machine with Inside Clipper



6.Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~
