• Model NO.：MH-HP15
• Layers：15
• Cylinder：400*2PCS
• Frame：Easy for Loading
• Product Name：Hot Press Machine
• Keyword：Plywood Press Machine
• Upper Beam：900mm
• Middle Beam：400mm
• Bottom Beam：900mm
• Transport Package：No Packing
• Specification：3600*1370*4500mm
• Trademark：MINGHUNG
• Origin：Linyi City, China
• HS Code：846594
• Production Capacity：600sets,Year

Basic Info.

Model NO. MH-HP15 Layers 15 Cylinder 400*2PCS Frame Easy for Loading Product Name Hot Press Machine Keyword Plywood Press Machine Upper Beam 900mm Middle Beam 400mm Bottom Beam 900mm Transport Package No Packing Specification 3600*1370*4500mm Trademark MINGHUNG Origin Linyi City, China HS Code 846594 Production Capacity 600sets/Year

Product Description

Woodworking Machine Plywood  Machine Hot Press Machine

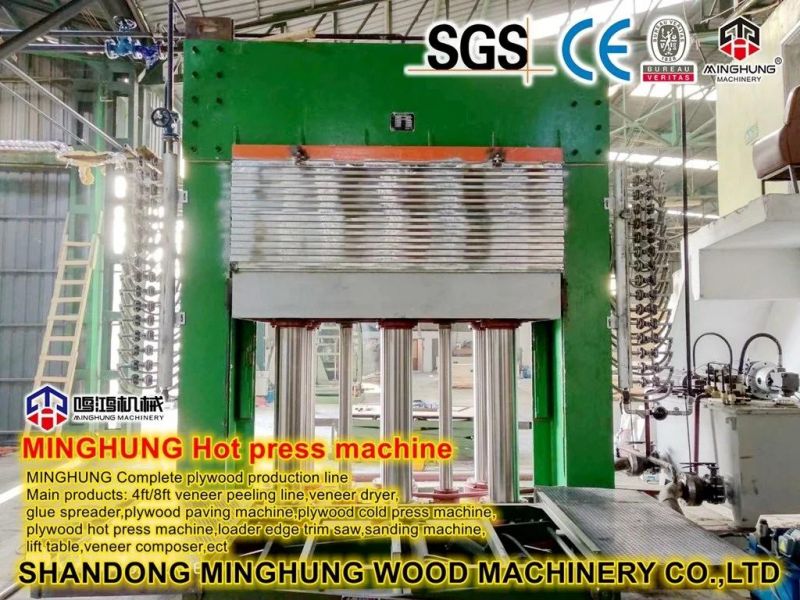

Hydraulic Hot Press Machine
 Producing kinds of plywood, like furniture plywood, construction plywood, marine plywood, hydraulic hot press machine is the necessary and important machine.

Hot Press's structure not complex, mainly consist of: the machine frame, hot plates, hydraulic station, cylinder.

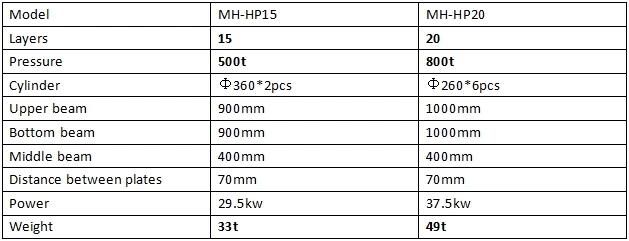

It can be different pressure and layers according to the real conditions, like 500t, 600t, 800t, 1000t, 1200t. 8layers, 10layers, 12layers, 15layers, 20layers, 25layers  >>>Specification:


>>>Advantages:


HYDRAULIC STATION
 Hydraulic station is one important part for plywood hot press machine, it will offer the oil to cylinder, driving it lift hot press machine.
The hydraulic station is also called the hydraulic pump station. The motor drives the oil pump to rotate. The pump sucks oil from the oil tank and pumps the oil. The mechanical energy is converted into the pressure energy of the hydraulic oil. The hydraulic oil is realized by the hydraulic valve through the integrated block (or valve combination). After the flow adjustment, it is transmitted to the oil cylinder or oil motor of the hydraulic machinery through the external pipeline, thereby controlling the direction change of the hydraulic motor, the size and speed of the power, and promoting various hydraulic machinery to do work.

MACHINE FRAMEmachine frame using good and thick steel material, by our experienced purchasing manager choose after company with different suppliers. make sure machine itself strong, stable and long life span.

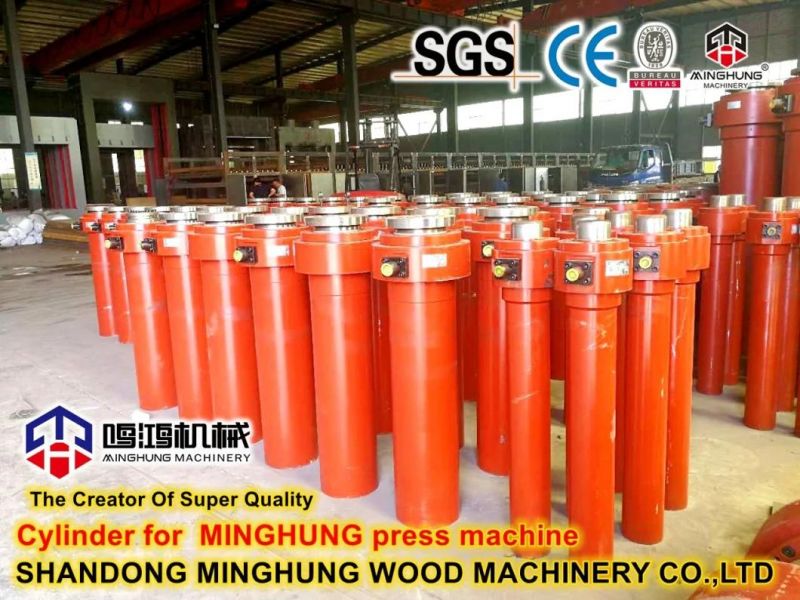

CylinderThe oil cylinder is treated with anti-rust, alloy casting, high hardness, scratch resistance, suitable for high-strength operations, and uses a good oil seal to prevent leakage, ensure the pressure in the oil cylinder, and good performance

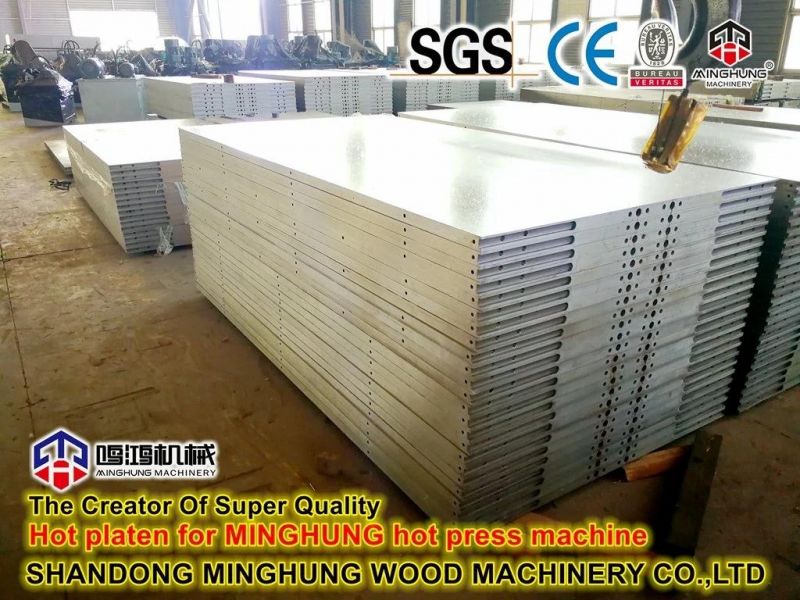

Hot platen
Usually hot platen use 42mm or 52mm, The hot platen be processed by large lathe, make the surface is smooth, with sufficient strength and stiffness. It does not deform at high temperatures, and the temperature and heat are uniform. This makes the plywood heated evenly, the surface is flat, and the thermal efficiency is high, which improves the production efficiency.

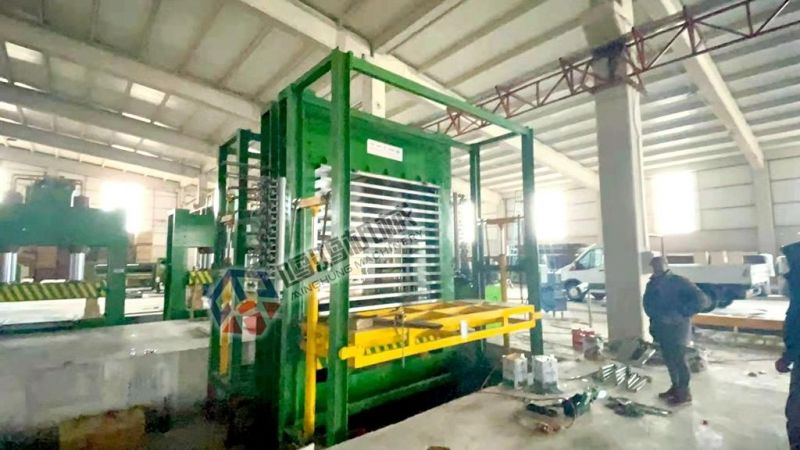

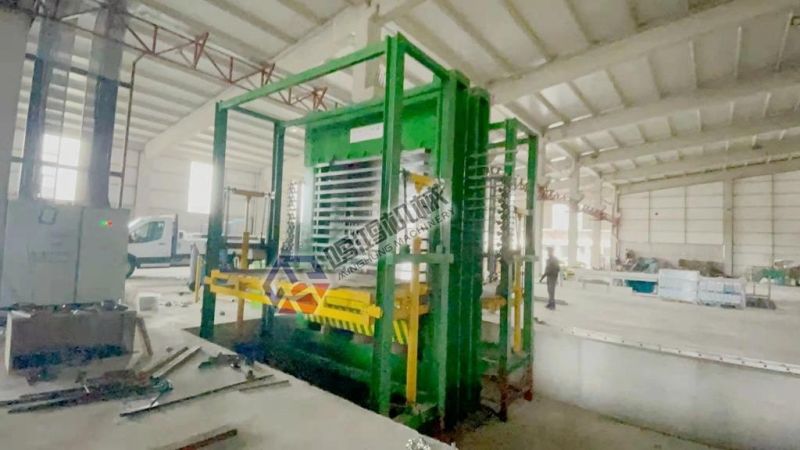

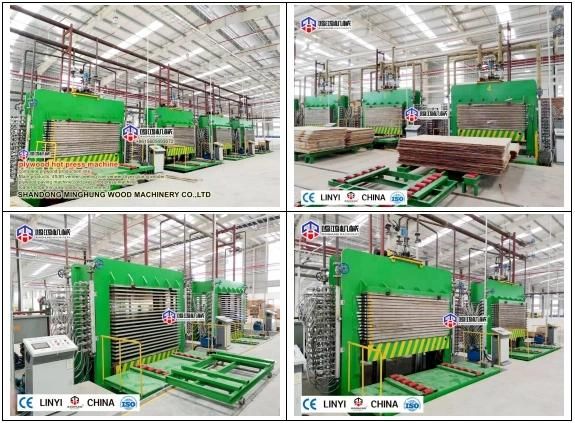

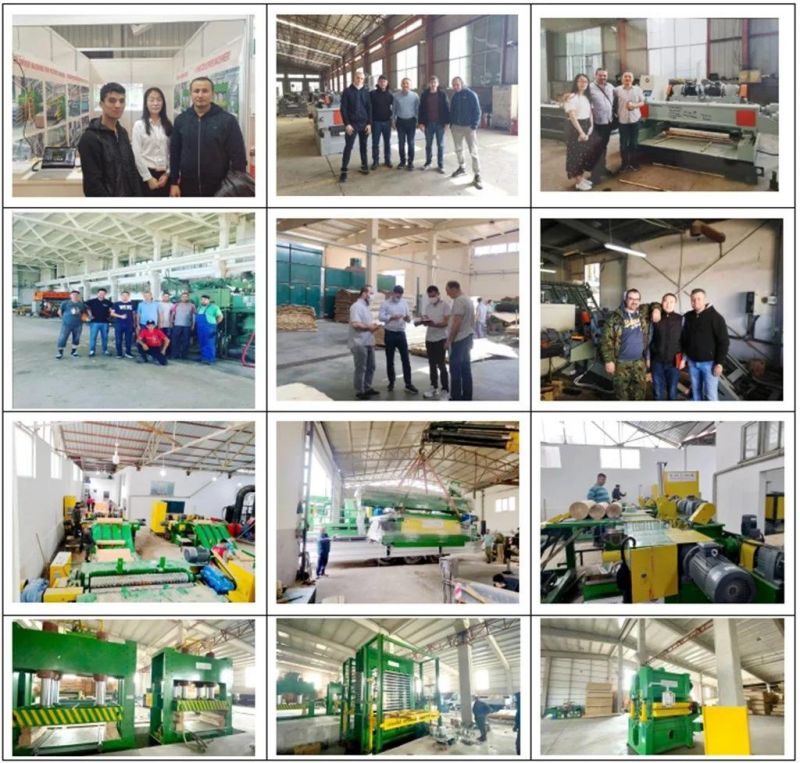

>>>Hot press in client factory:
 > For convenient loading, hot press machine's frame is combined, and use international standard steel plate, make sure hot press weight is very heavy, stable and good quality.
> When plywood press machine and other plywood machine reach your factory, our engineer will go to install and teach your worker how to operate and maintain machine.
> And in the future, when your worker meet any problem, or your factory need purchase some spare parts of plywood machine, we will help you solve and help you buy.



>>>Us

Our main products include wood log debarker, veneer peeling machine, vacuum veneer stacker, veneer dryer machine, plywood cold press machine, plywood hot press machine, glue spreader, glue mixing machine, automatic plywood veneer paving line, plywood saw machine, sanding machine.

Scientific and technological innovation oriented, quality-based, service supremacy, we offer full complete range of plywood production solution and technology support for our customers. Yet our machines have been exported more than 30 countries and regions like Russia, Poland, Ukraine, Portugal, Bulgaria, Romania, Turkey, Egypt, Morocco, Indonesia, etc, and get good feedback.

With high efficiency sales team offer 24 hours online service, the professional technical team and after-sales service team offer plant layout, machine drawings, and after-sales service.
Choose us, you need not worry anything, we will help you arrange all.

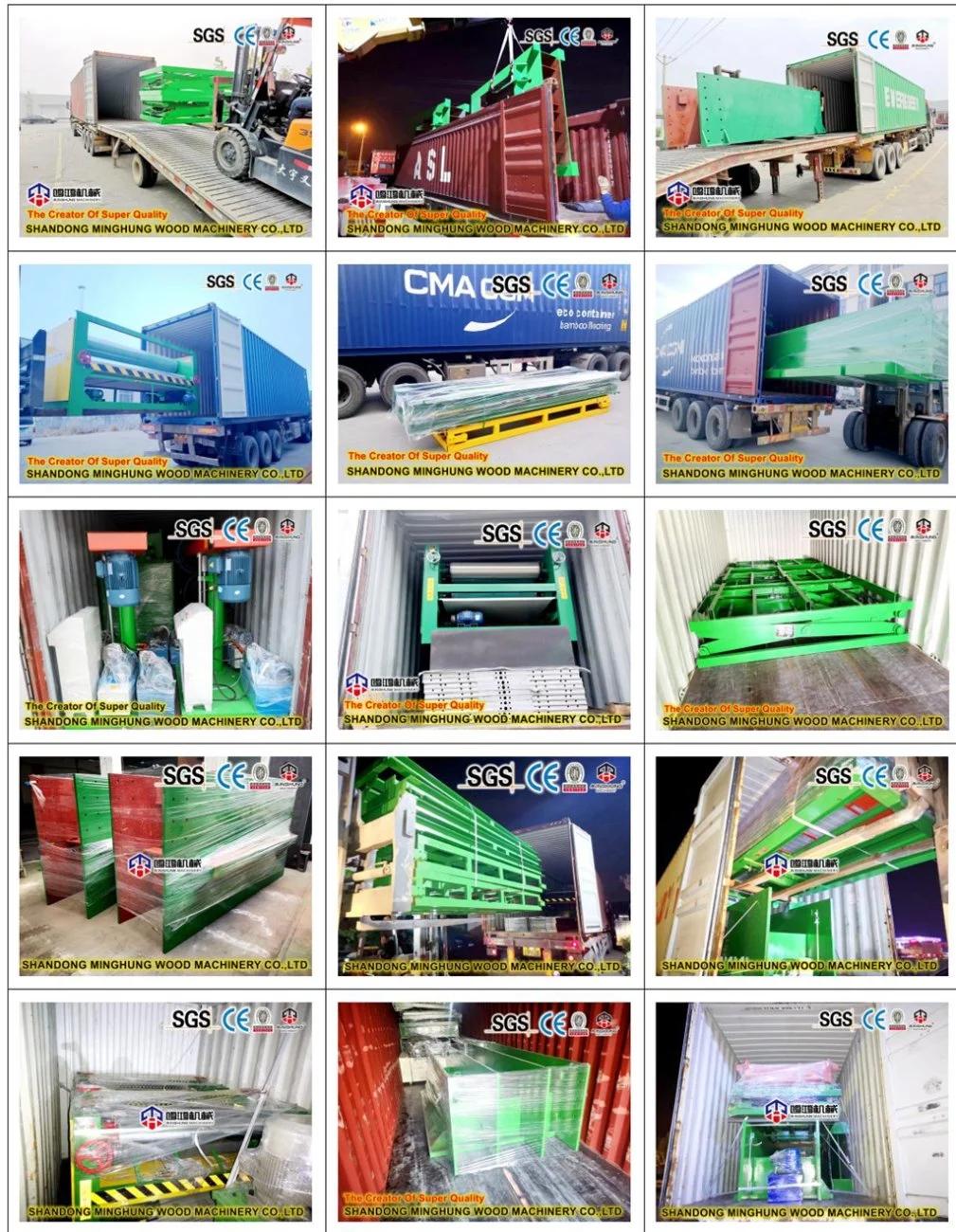

>>>Delivery:
1> When loading, we will share the loading pictures of plywood press machine with you.
2> When ship leave, we will offer the container and ship information for you.
3> Offer all documents which for your custom clearance.



>>>Related Plywood Machine:


 we produce the full line of plywood machine.
wood debarker, veneer peeling machine, vacuum veneer stacker, veneer dryer machine include veneer press dryer and roller dryer, plywood cold press machine, plywood hot press machine, glue spreader, glue mixing machine, automatic plywood veneer paving line, plywood saw machine, sanding machine.
