• Model NO.：MF515B
• Panel Thinkness：10-50mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：0.18kw
• Motor Power：0.37kw(0.18kw)
• Speeding Adjustment：Stepless,Speed,Regulation
• Feeding Speed：1-18m,Min
• Application Range：Melamine,Veneer,PVC,etc
• Air Pressure：>=4kg,Cm²
• Shape of Workpiece：Straight,Curved Line
• Transport Package：Wooden Case
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets

Basic Info.

Model NO. MF515B Panel Thinkness 10-50mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 0.18kw Motor Power 0.37kw(0.18kw) Speeding Adjustment Stepless,Speed,Regulation Feeding Speed 1-18m/Min Application Range Melamine,Veneer,PVC,etc Air Pressure >=4kg/Cm² Shape of Workpiece Straight,Curved Line Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets

Product Description

SMF-515B Semi-Automatic Edge Banding Machine


Type	SMF-515B (Small Glue Tank)
Heating power	1.8 KW
Motor Power	0.18 KW
Air pressure	>=4kg/cm2
Speed adjustment	Stepless speed regulation
Feeding speed	1-18 m/min
Application range	Melamine, Veneer. PVC, etc
Banding tape thickness	0.15-3 mm
Banding tape width	10-50 mm
Work piece thickness	<=40 mm
Glue tank capacity	1.2 kg
Shape of work piece	Straight & curved line


Feature:

1: Easy to operate

2: Can process square or curved panels

3: Easy to move to any workplace

4: Optional equippment: 45 degree tilting device; pull-out bracket for larger panels

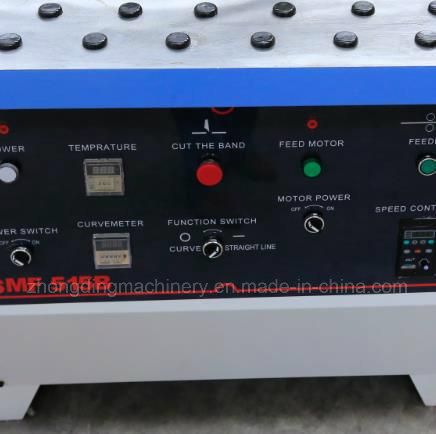

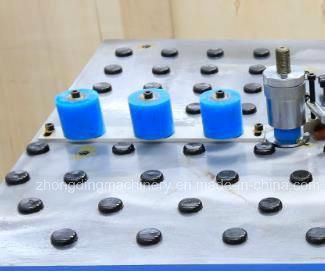

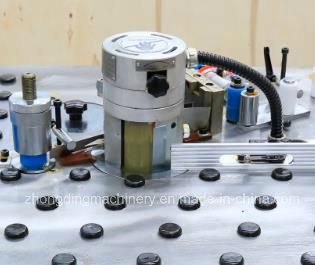

Product details:










Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400

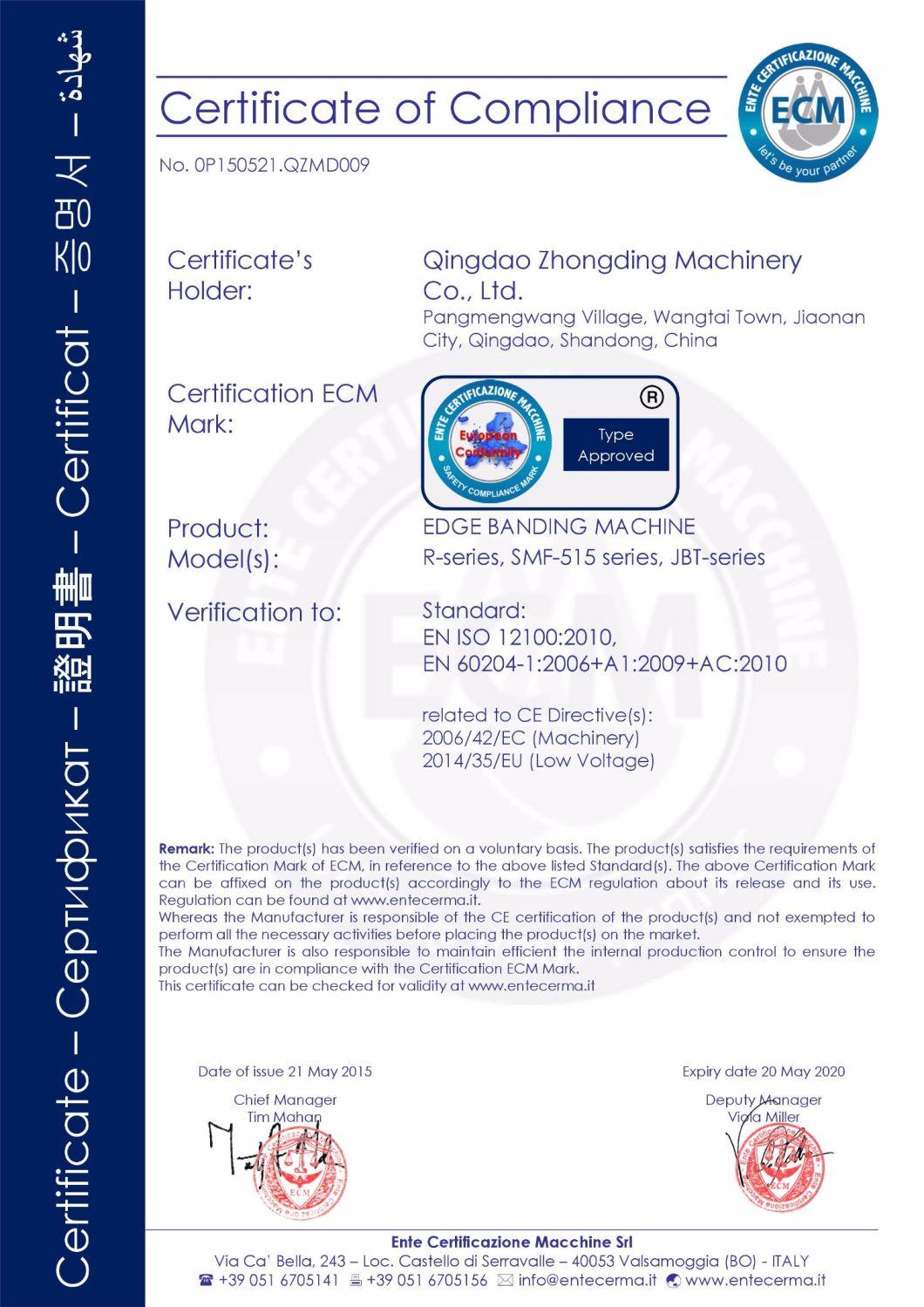

8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
